47z by Putzmeister
$0
47z by Putzmeister
Concrete Pump Details
Boom Specifications
Manufacturer
Putzmeister
Condition
New
Sections
5 sections
Vertical Reach
46.10m (151'3")
Reach From Front
38.00m (124'8")
Unfolding Height
N/A
Outrigger
All Hydraulic
Front Spread
8.50m (27'11")
Rear Spread
9.08m (29'9")
Pump Specifications
Concrete Cylinder Diameter
230mm (9")
Cylinder Stroke Length
2,100mm (83")
Number of Strokes/Min
31
Main Oil Pump
N/A
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
N/A
General Specifications
Water Tank
N/A
Seller Note

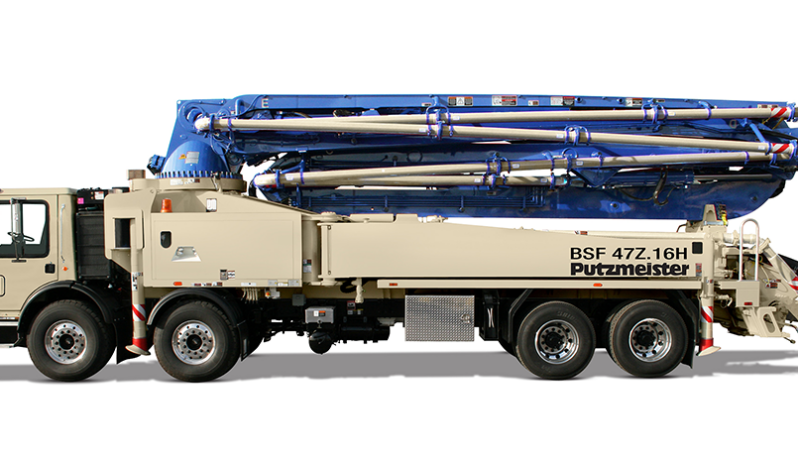

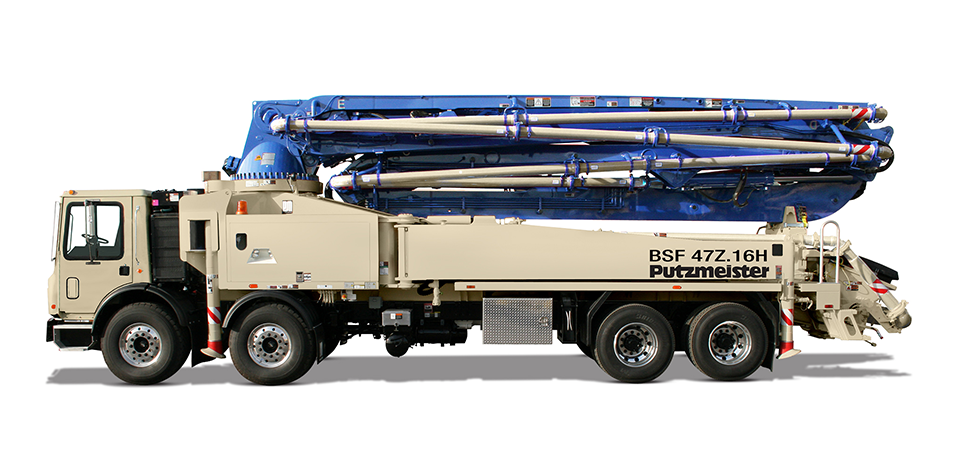

Truck-Mounted Concrete Boom Pump 47Z-Meter
INCREASED MANEUVERABILITY AND EASE OF USE
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 70,500 pounds, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations.
AVAILABLE IN COUNTRIES : Across AMERICAS
KEY FEATURES
- Lower fuel consumption and reduced wear due to optimal engine speed
- Fuel savings of up to 10%
- Avoids unfavorable ranges
SPECIAL FEATURES
Designed with reduced gross vehicle weight, improved pipe layout, and increased parts commonality.
