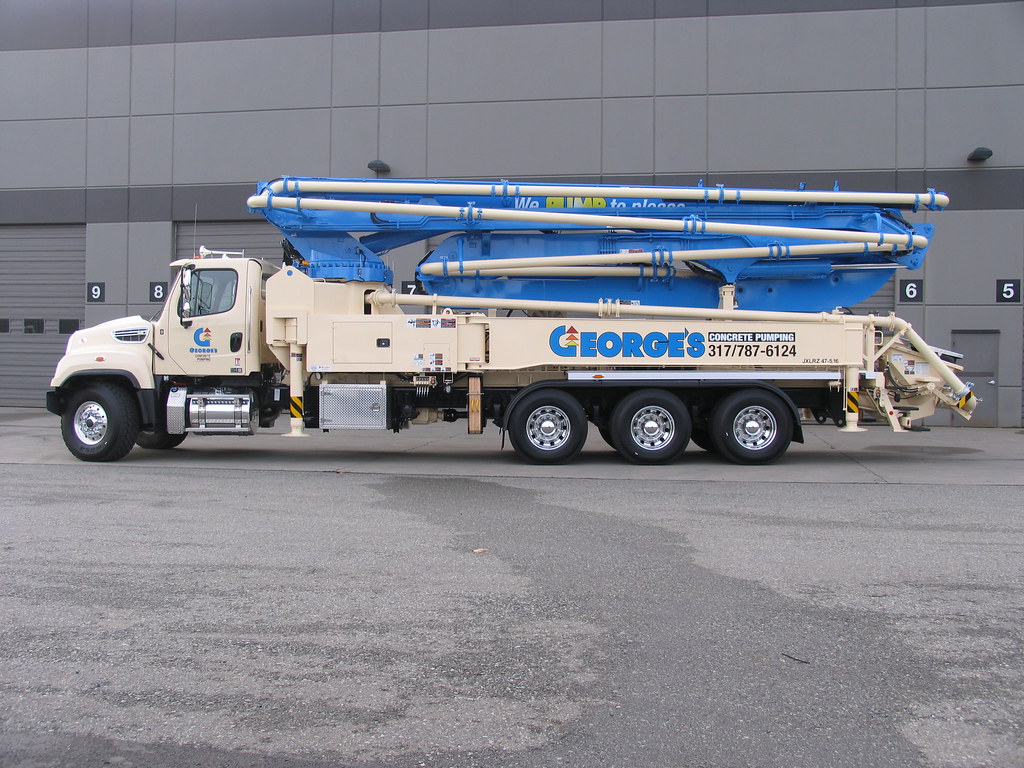

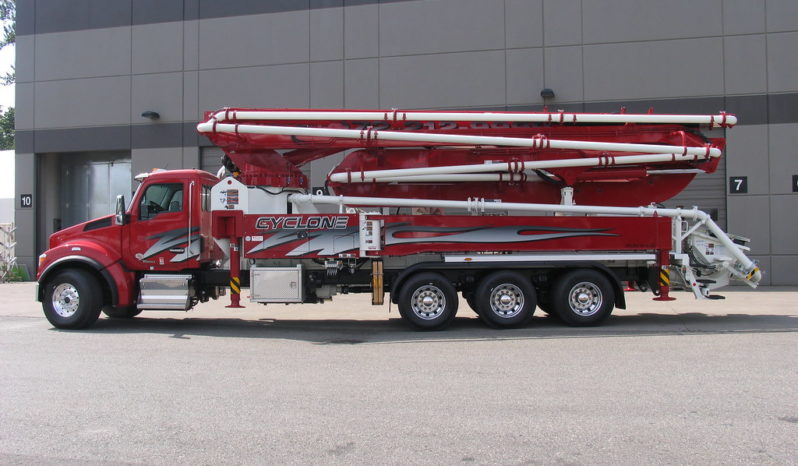

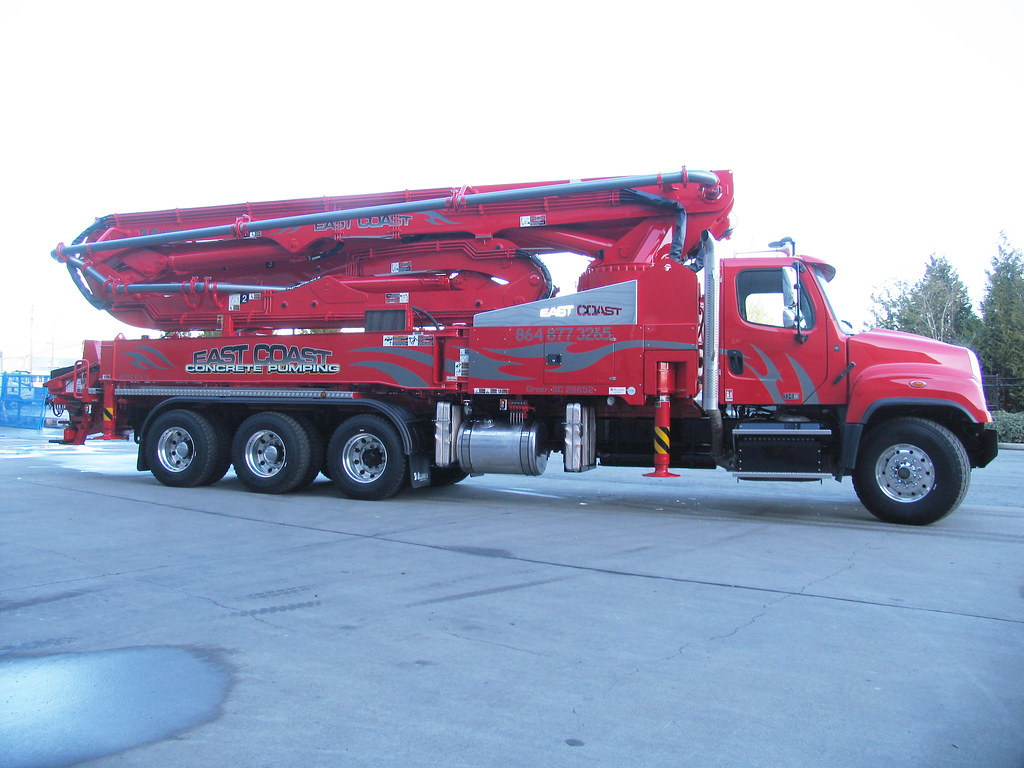

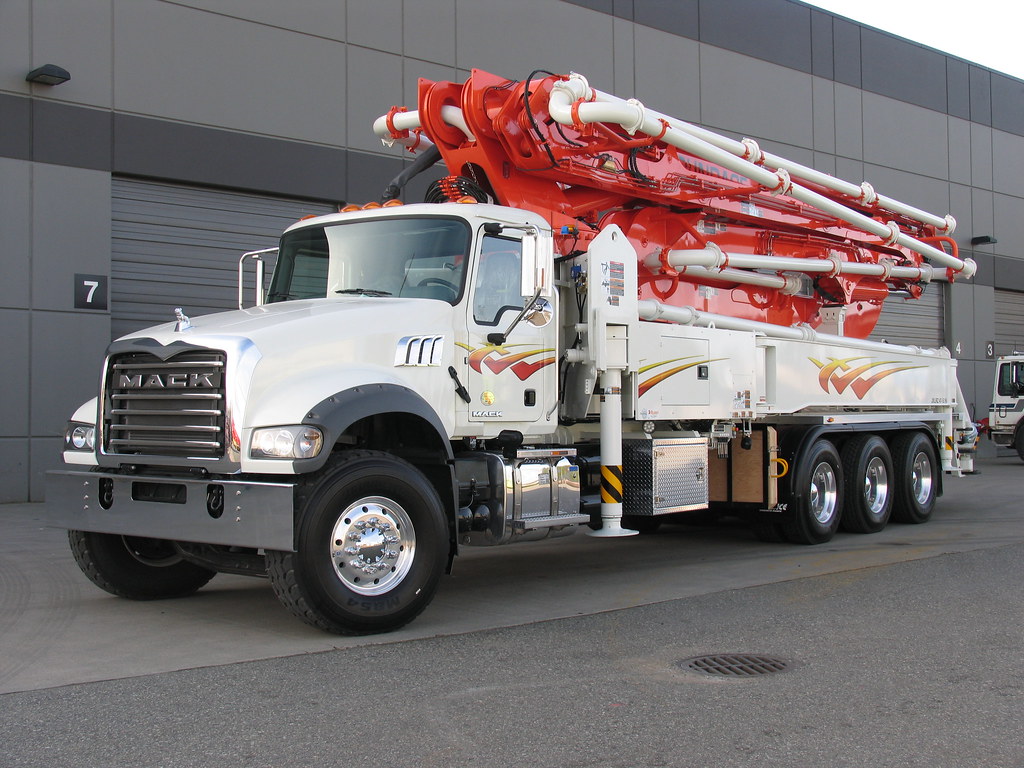

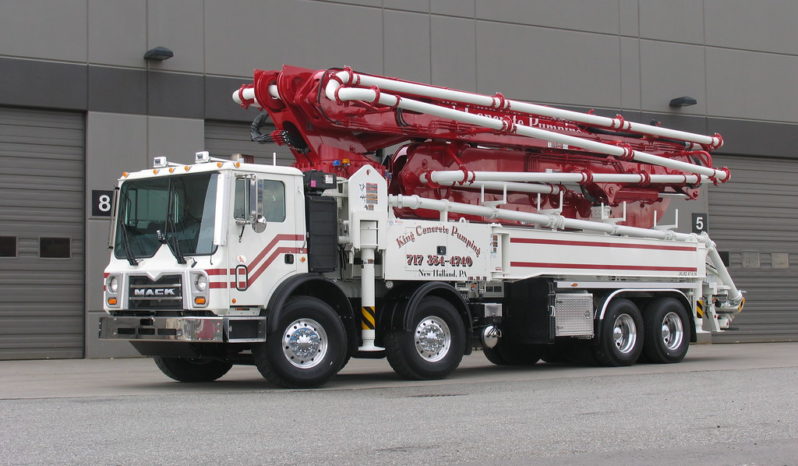

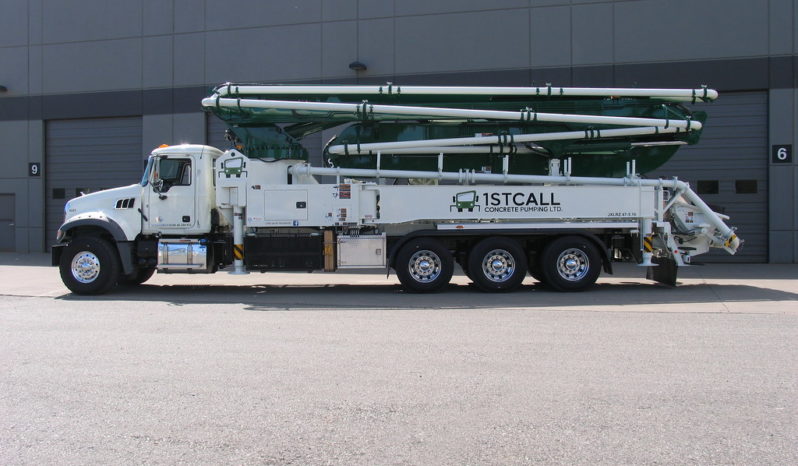

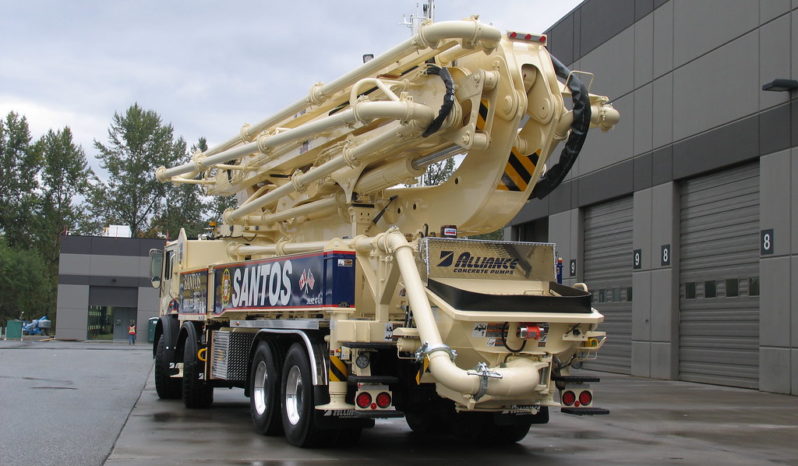

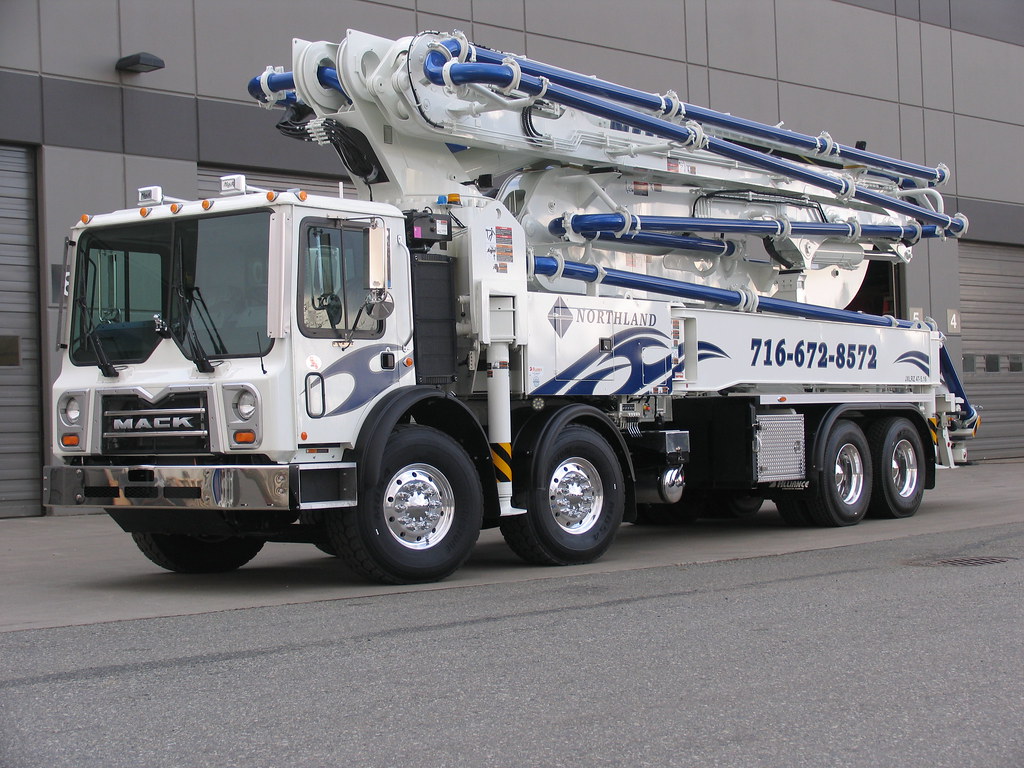

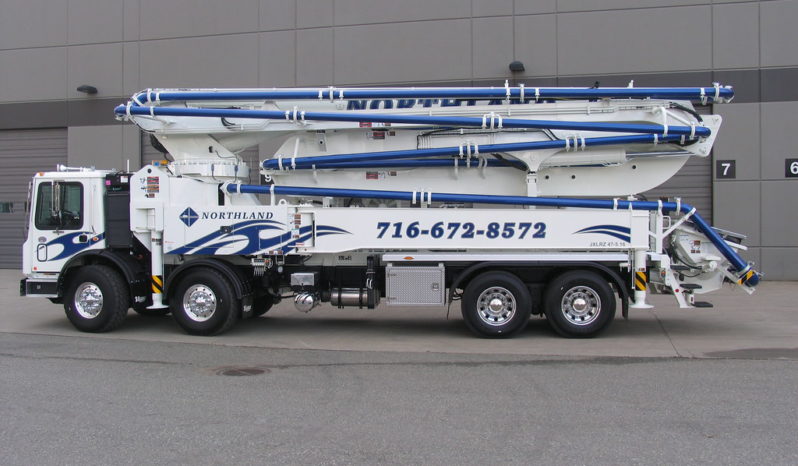

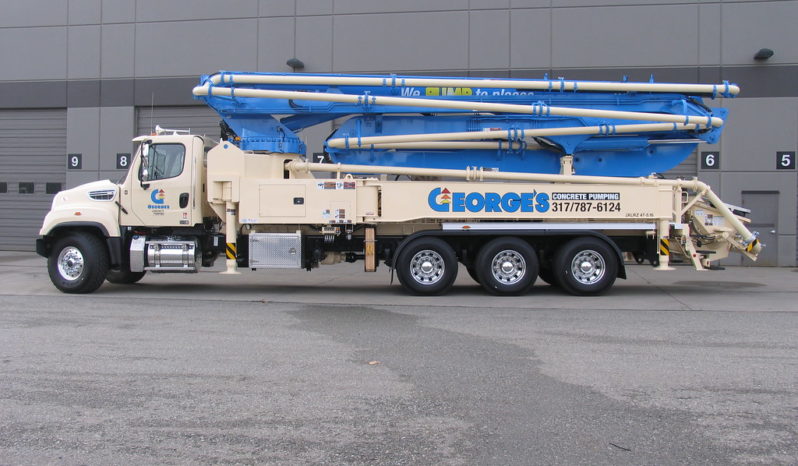

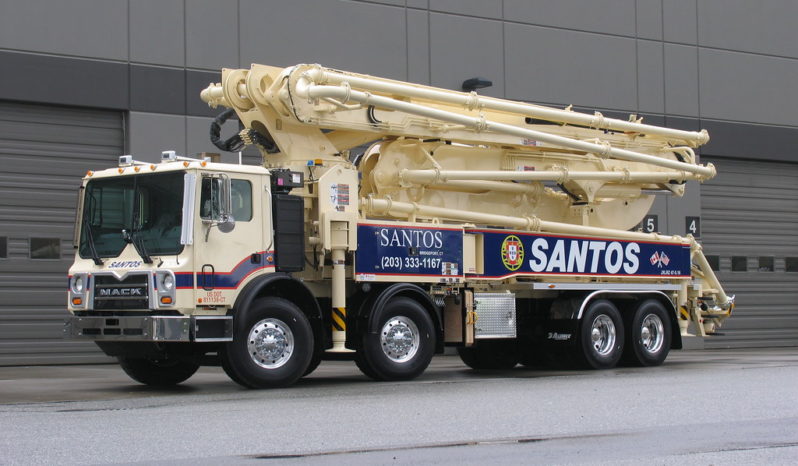

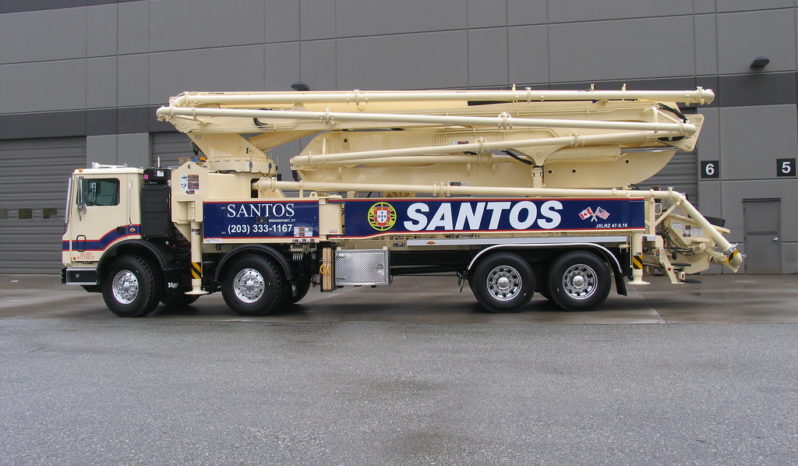

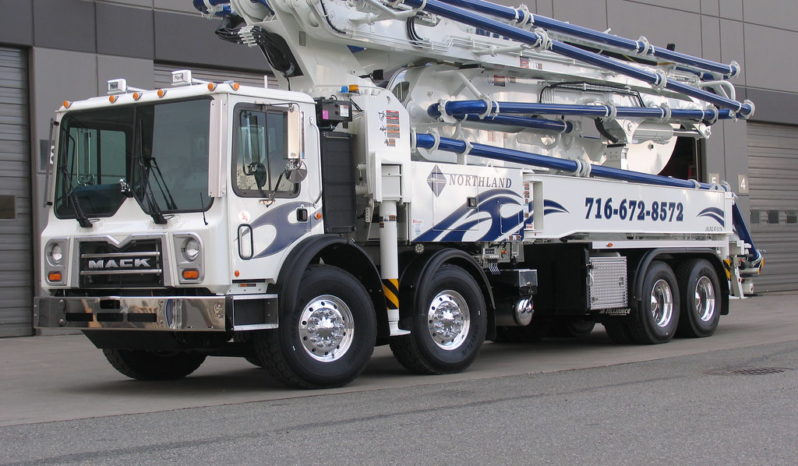

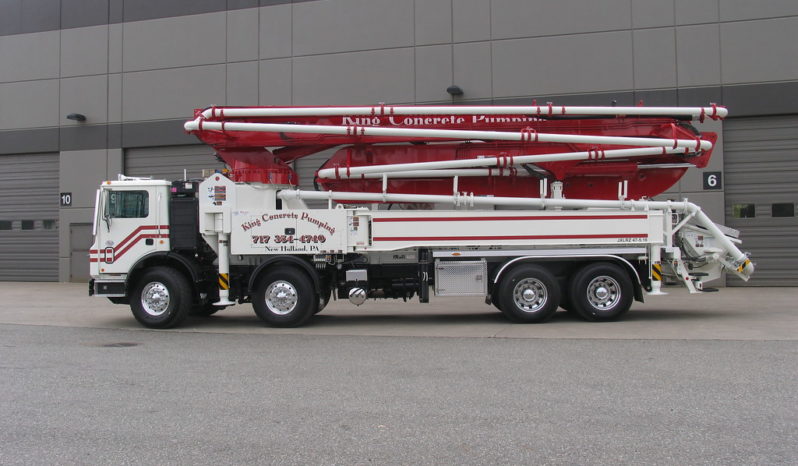

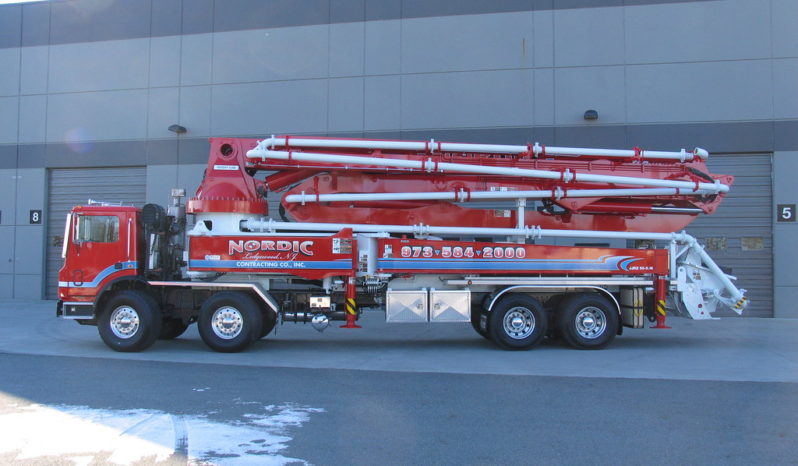

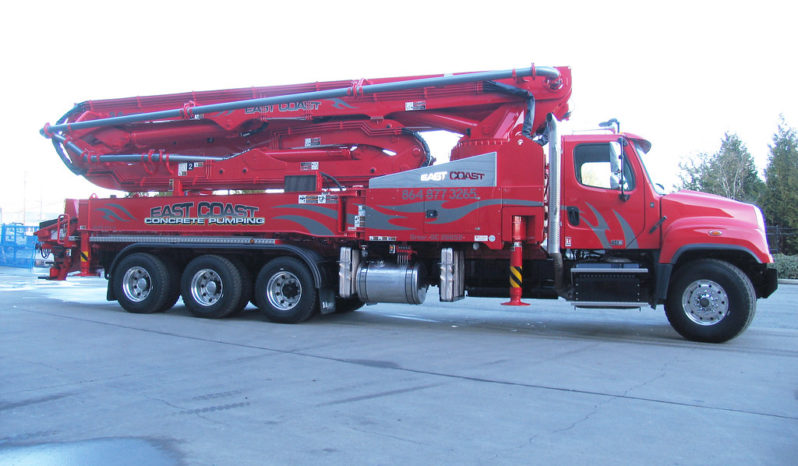

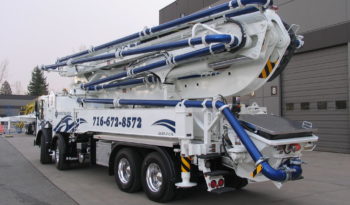

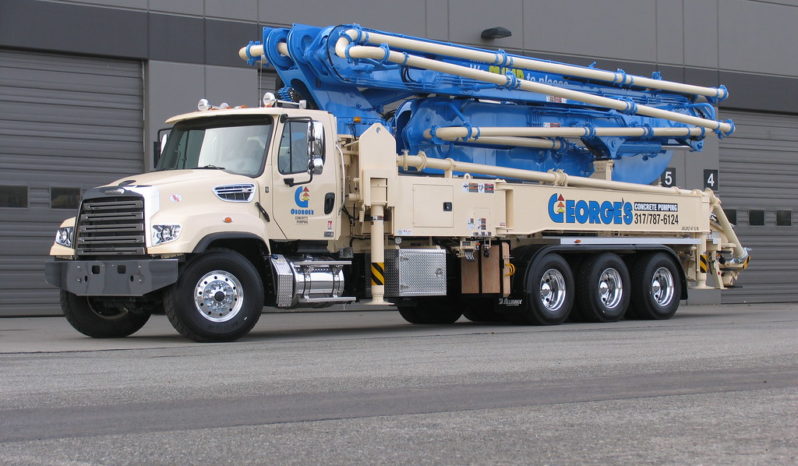

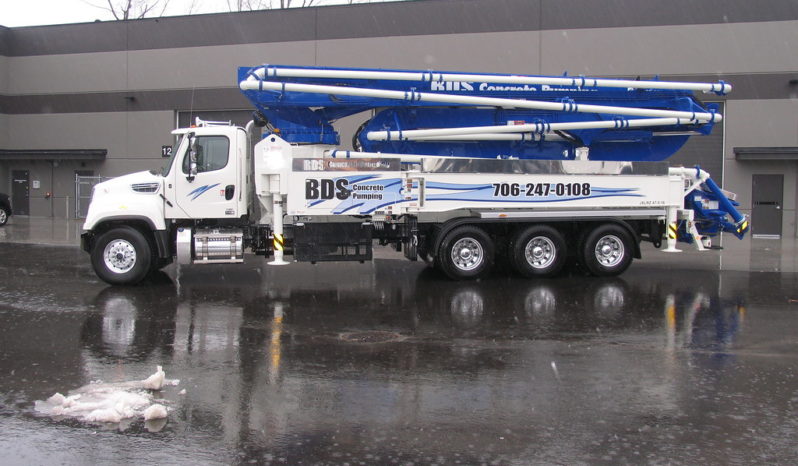

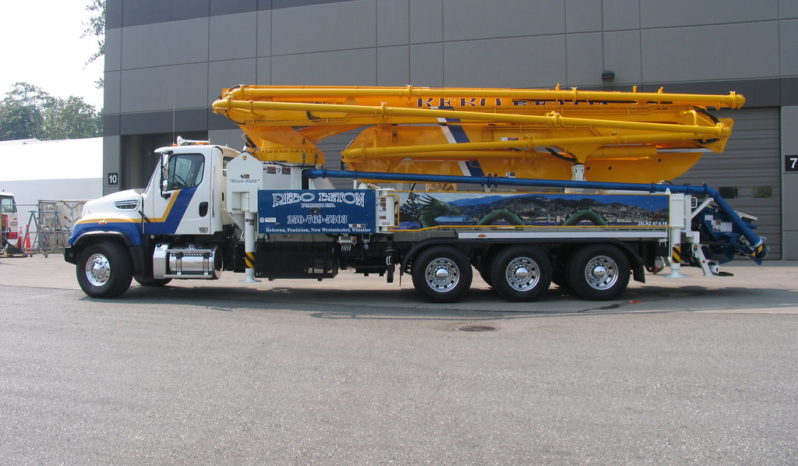

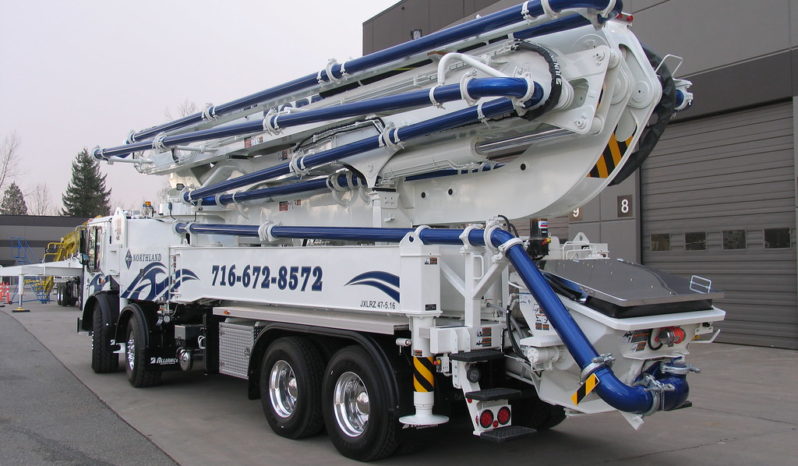

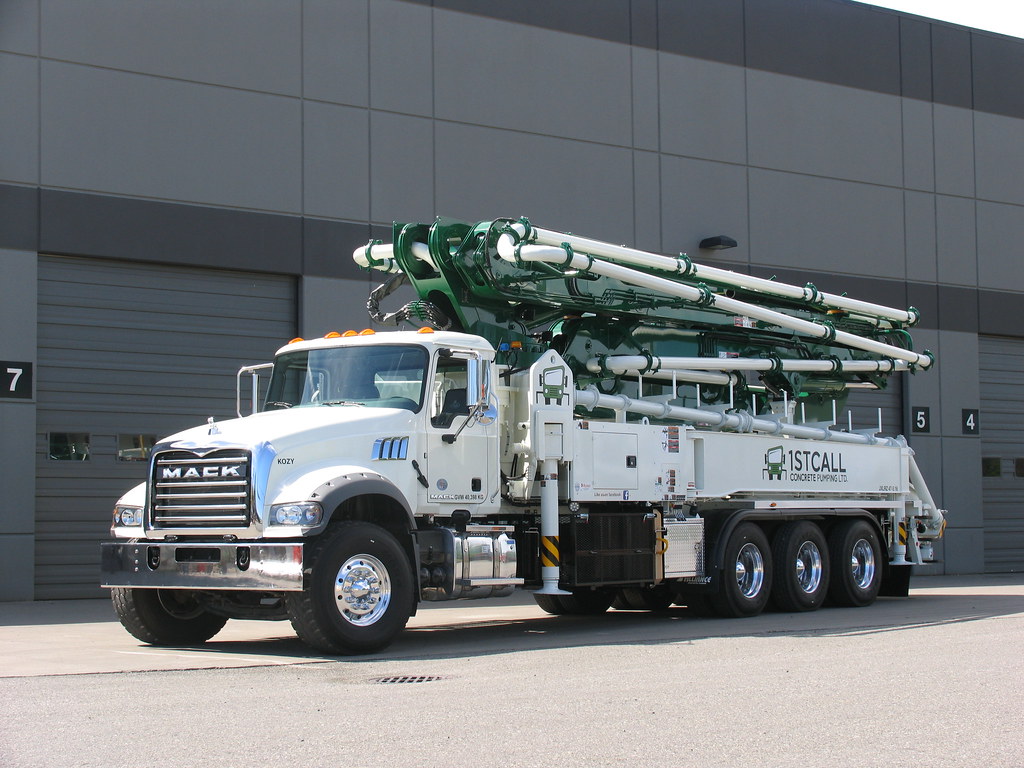

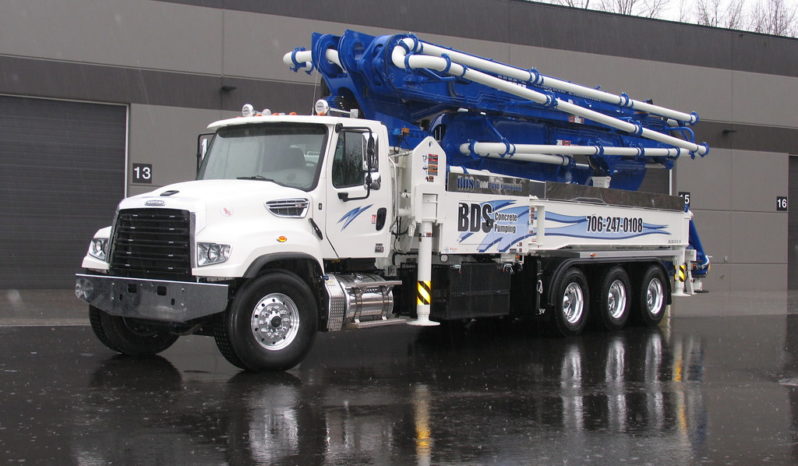

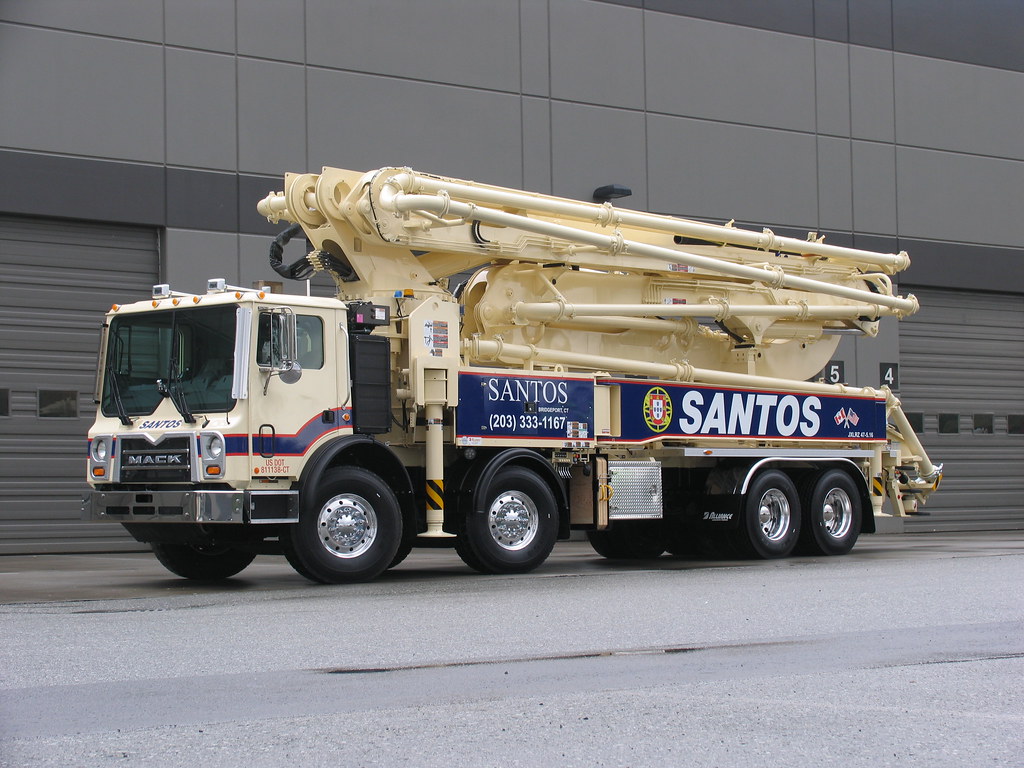

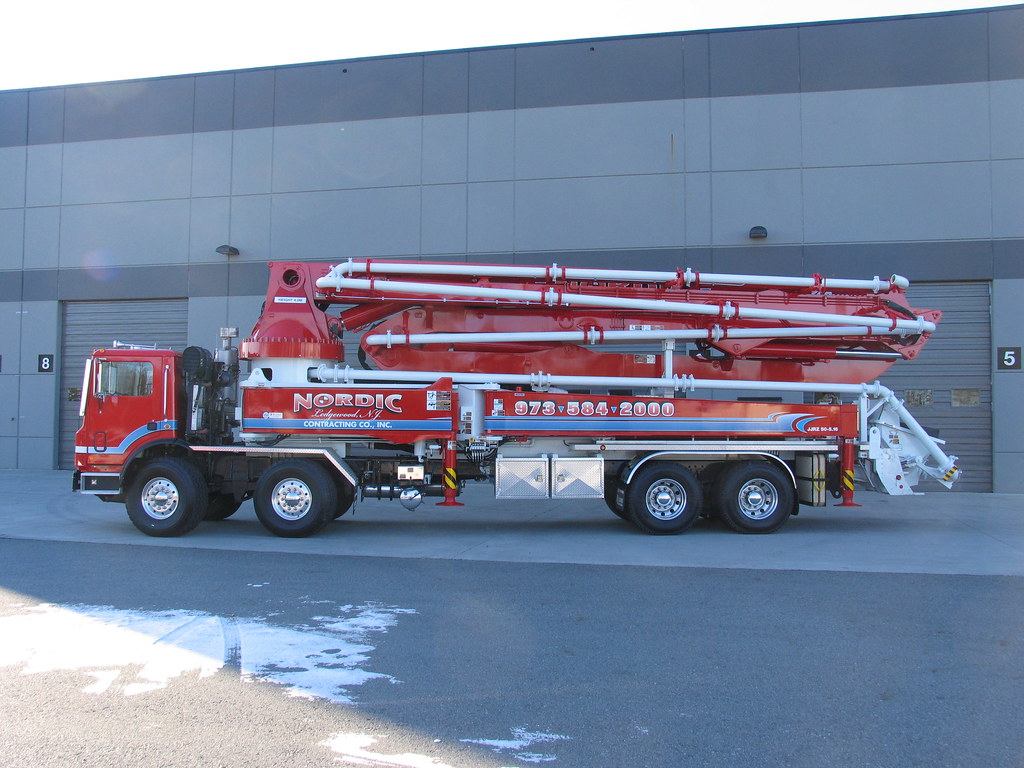

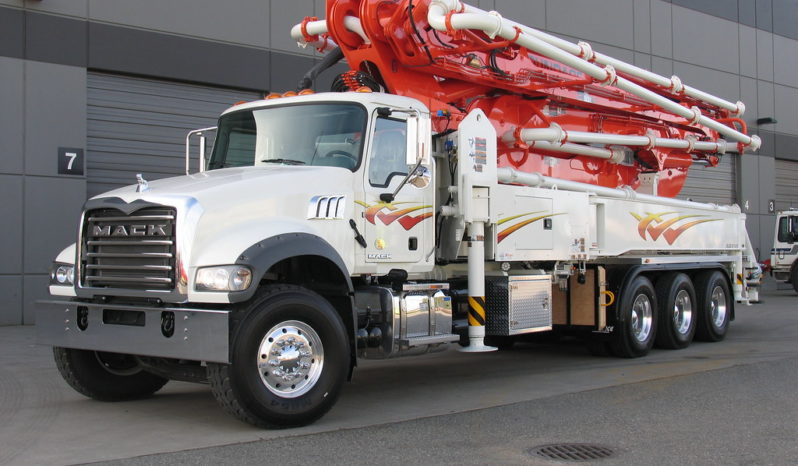

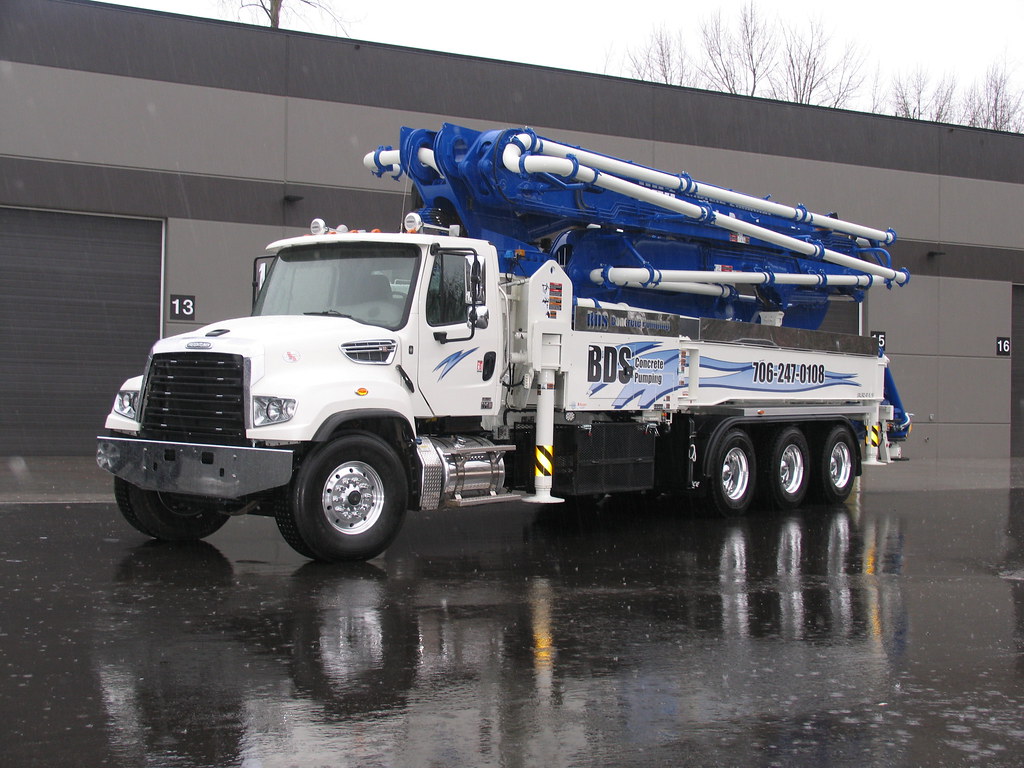

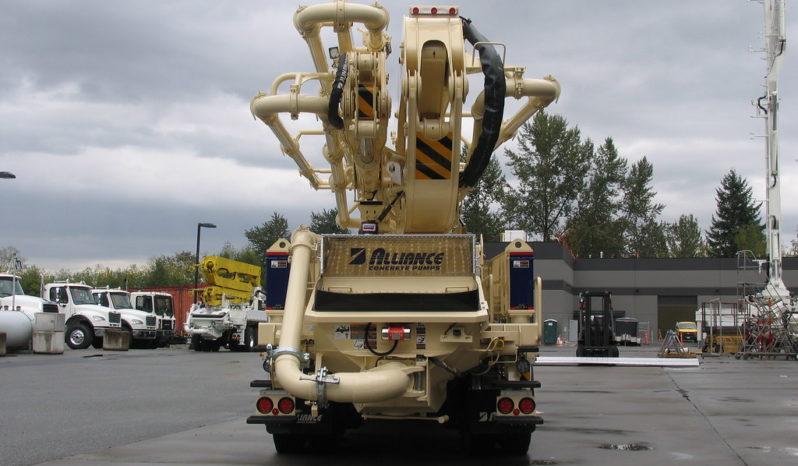

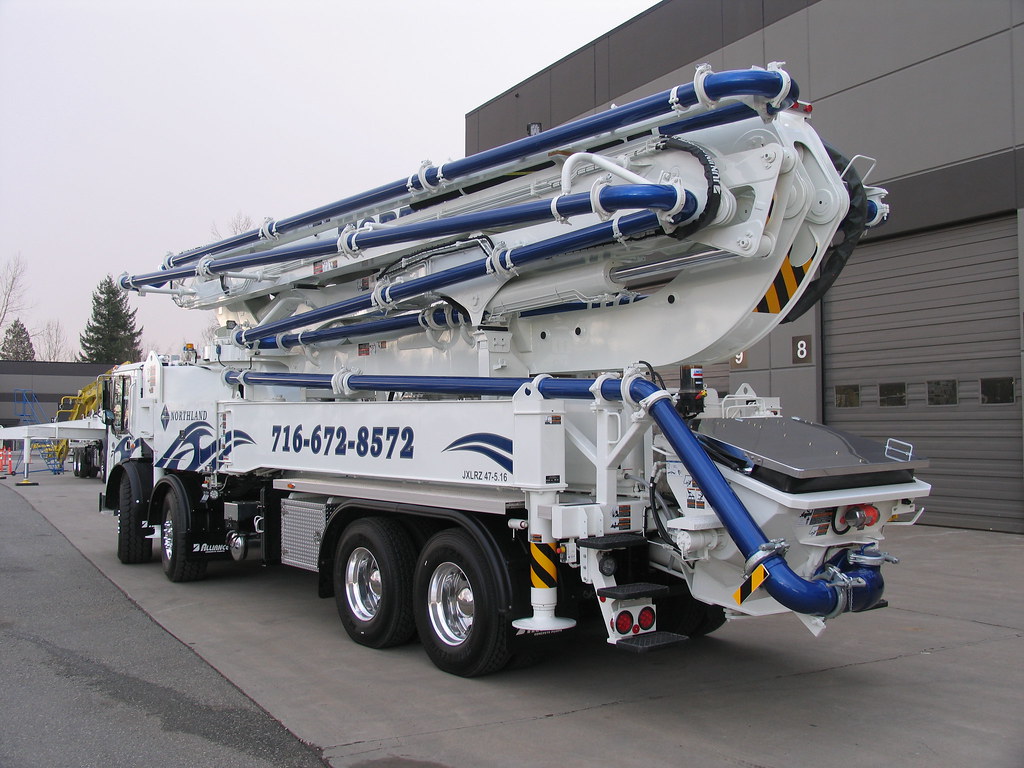

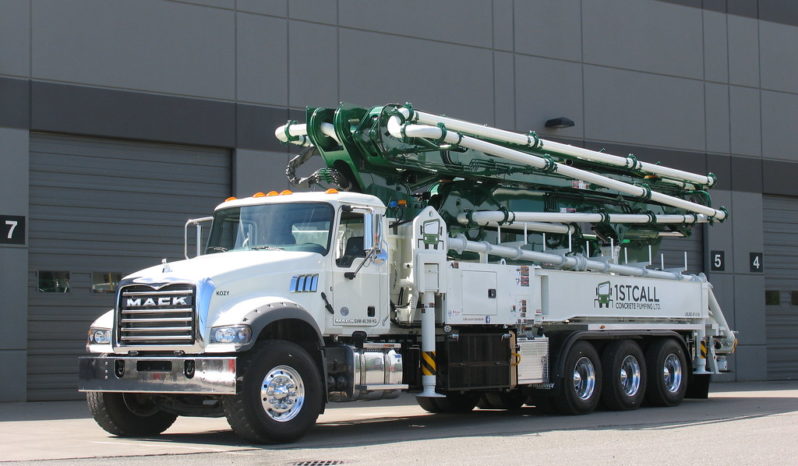

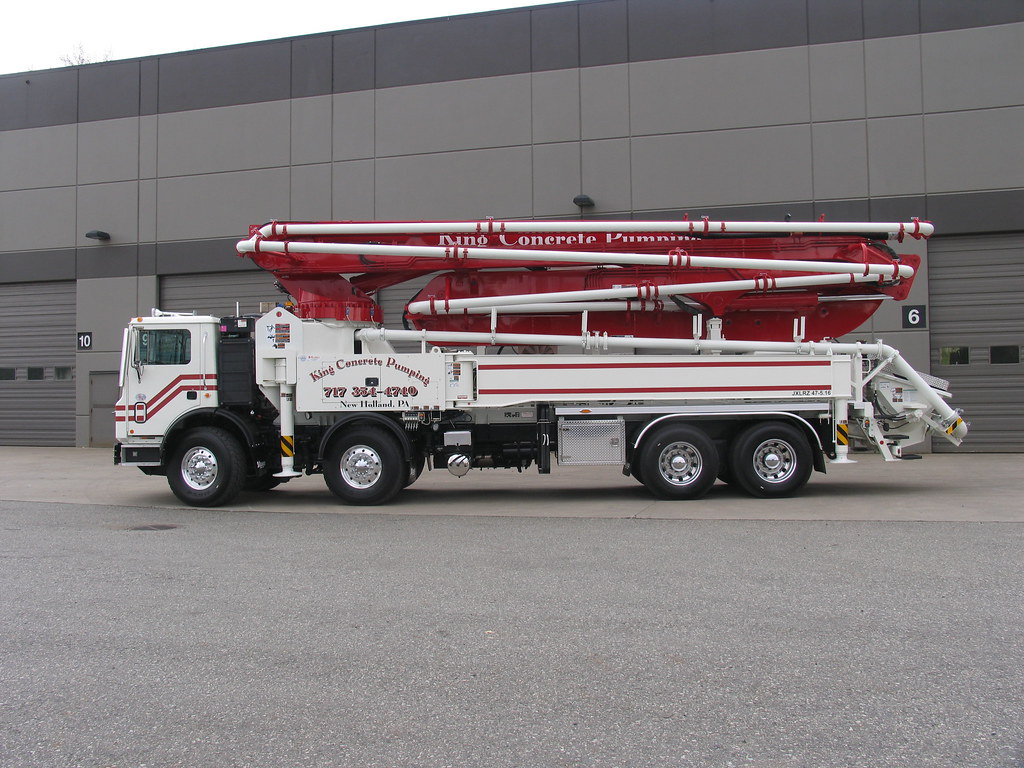

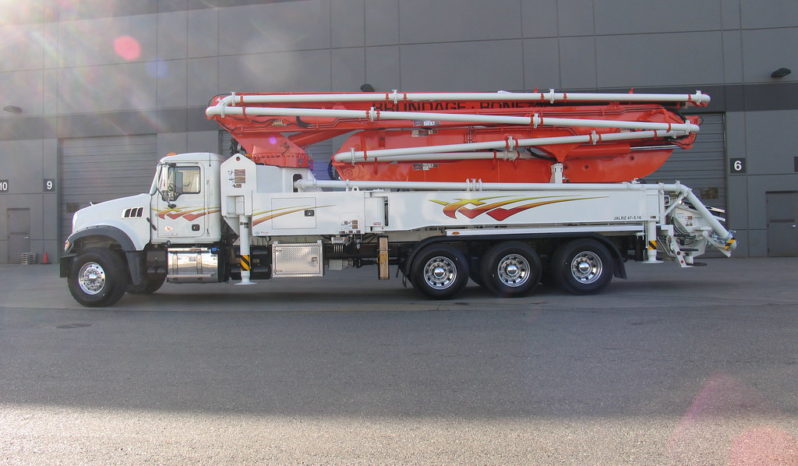

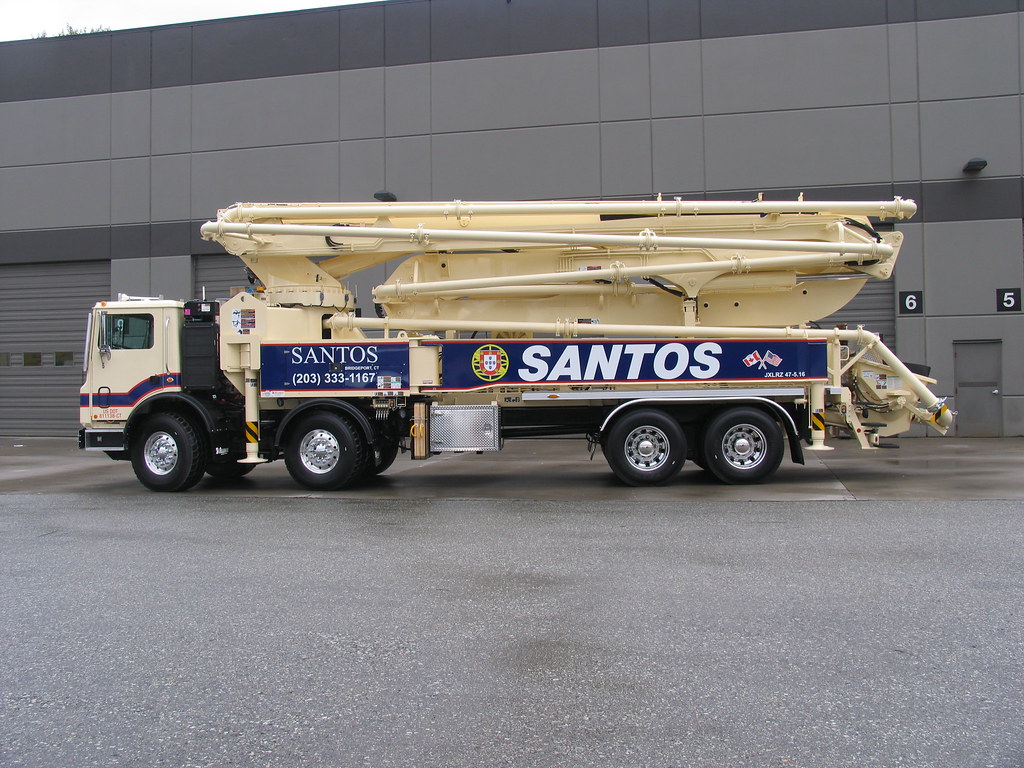

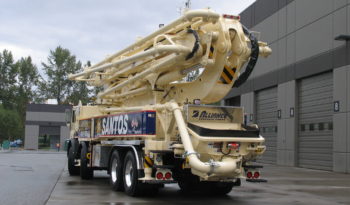

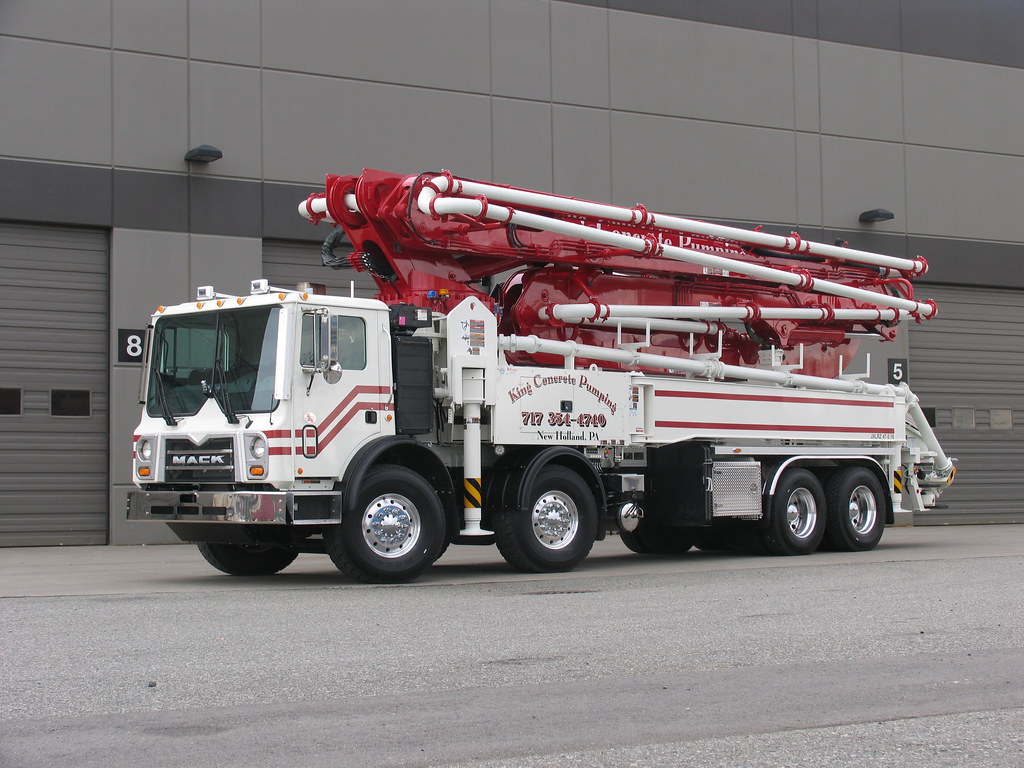

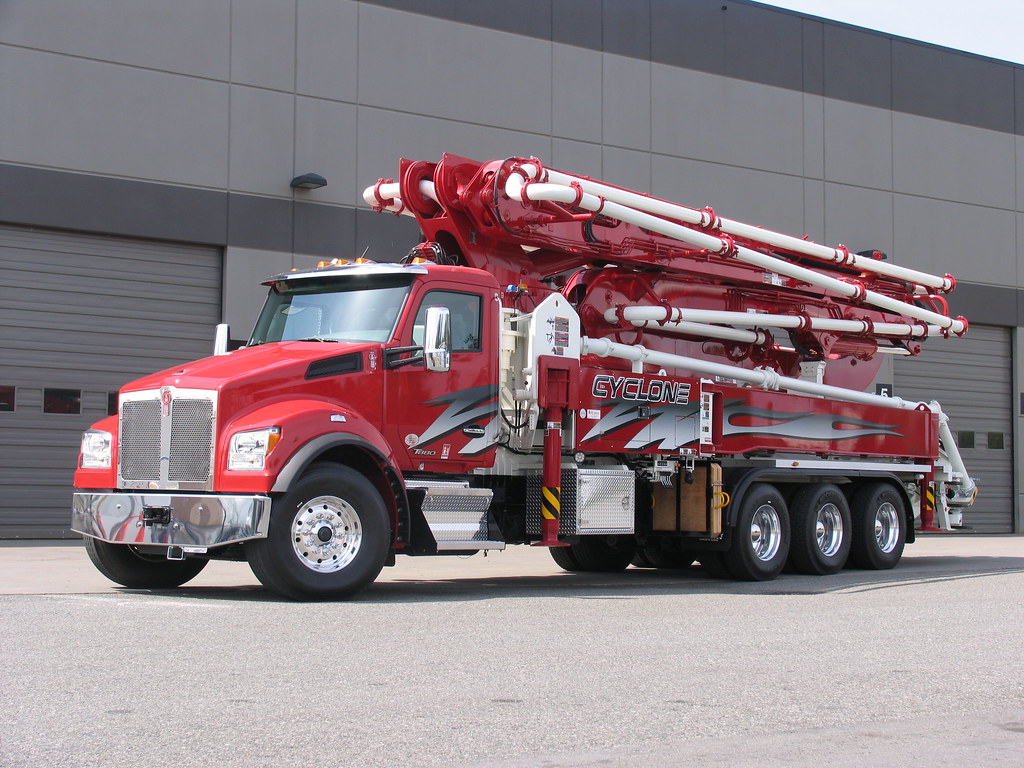

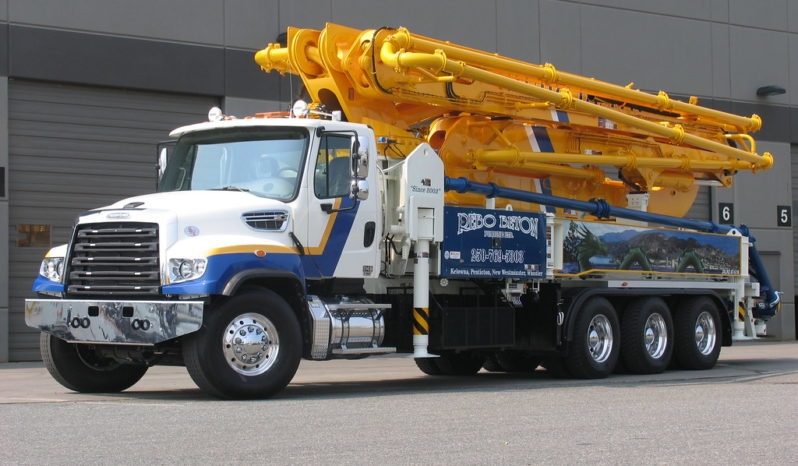

47m 5 SECTION LRZ-BOOM by Alliance
$0
47m 5 SECTION LRZ-BOOM by Alliance
Concrete Pump Details
Boom Specifications
Manufacturer
Alliance
Condition
New
Sections
5 sections
Vertical Reach
46.2 m (151’7”)
Reach From Front
N/A
Unfolding Height
12.85 m (42’2”)
Outrigger
Hydraulic
Front Spread
N/A
Rear Spread
8.8 m (28’10”)
Pump Specifications
Concrete Cylinder Diameter
230 mm (9")
Cylinder Stroke Length
2,100mm (83")
Number of Strokes/Min
31
Main Oil Pump
Rexroth Hydromatic
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
General Specifications
Water Tank
800 L (211 G)
Seller Note
STANDARD FEATURES
Our 47 Meter allows pump owners to step fully into commercial and industrial jobs. Yet, if necessary, this pump also accommodates most residential environments.
 |
Hydraulic System with Manual Overrides Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode. |
 |
Split Panel Electrical System The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time. |
 |
Optioned to Suit Your Needs We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do. |
