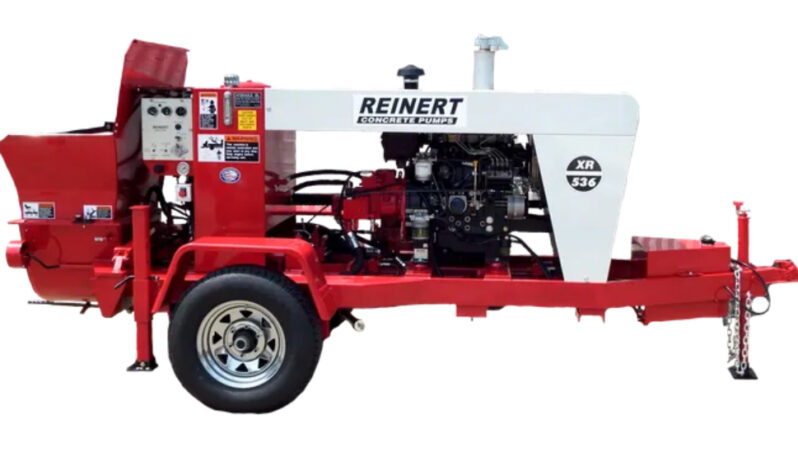

REINERT XR-536

$0

REINERT XR-536

Concrete Pump Details

Pump Specifications
Number of Strokes/Min
N/A
Concrete Output Max (theo.)
N/A
Seller Note

REINERT “ZR” SERIES

REINERT ZR-430

The Hinge Valve is standard equipment on all Reinert S-Tube pumps. A variable volume piston pump and a convenient remote control cable are also standard features. Our hoppers are designed with straight walls and minimum corners to allow for easy clean-up and minimum material build-up. An optional radio remote control is also available.

DETAILS: Reinert trailer-mounted masonry pumps are diesel-powered and range from 6 cyph to 36 cyph. These pumps are designed to be used with grout or pea-rock mixes. Ideal for block-filling, pumping small slabs and footers, these tough but lightweight units are made for easy towing. When you need a dependable, long-lasting pump, trust Reinert.

HINGE VALVE: Reinert Masonry Pumps are built with the patented Hinge Valve. All S-Tube valves have build-up of material that is difficult to clean from the discharge end. When in the open position, our Hinge Valve gives you access to the inside of the S-Tube. This also makes the piston cups visible and easy to change. When clean-up and maintenance go faster and easier, you save time, labor, and money.

Weight Dry:………………………………….. 3100 lbs.

Length:………………………………………… 150″

Width:………………………………………….. 64″

Hopper Height:…………………………….. 43″

Brakes:…………………………………………. Electric

Tires:……………………………………………. 15″

Axle:…………………………………………….. Single

Hopper Capacity:………………………….. 8 cu. ft.

Fuel Tank Capacity:………………………. 15 gal

Diesel Engine:………………………………. 32.5 HP

Hydraulic Tank Capacity:………………. 44 gal

Main Hydraulic Pump:………………….. Piston

Material Valve/Swing Tube:…………… S-Tube

Discharge Diameter Outlet:…………… 4”

Concrete Cylinder Stroke:…………….. 30”

Concrete Cylinder Diameter:………… 4”

Maximum Aggregate:…………………… 3/4” minus

Piston Head Pressure:…………………. 650

Theoretical Output (C.Y.P.H.):………. 20

Our Masonry Pumps are built with an S-Tube valve instead of a mechanical ball valve, reducing your maintenance time. A reverse cycle and our Hinge Valve are standard features. An excellent choice for block-filling, small slab pours and pan stairs.

Only Reinert Offers The E-Z Hinge

The amazing Reinert E-Z Hinge is a real breakthrough in concrete pump operation. Because clean-up is an essential part of any concrete project, when you can make that step go faster and easier, think of what you’ll save in time, labor and money. The same is true for any maintenance or inspection needed on th S-Tube. Also, improved clean-out just naturally extends the life of your pump and helps assure smooth operation. It all adds up to more reasons for choosing Reinert!
