43m 5 Section RZ by DY

$0

43m 5 Section RZ by DY

Concrete Pump Details

Boom Specifications
Manufacturer
DY
Condition
New
Sections
5 sections
Vertical Reach
42.3m (138'9")
Reach From Front
36.76m (120'7")
Unfolding Height
8.2m (26'1")
Outrigger
X-Style
Front Spread
8m (26'3")
Rear Spread
9.1m (29'10")
Pump Specifications
Concrete Cylinder Diameter
230mm (9")
Cylinder Stroke Length
2,100mm (83")
Number of Strokes/Min
29
Main Oil Pump
N/A
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
General Specifications
Water Tank
N/A
Seller Note

43-METER RZ CONCRETE BOOM PUMPS

When you work in concrete pumping and construction, it pays to have equipment that offers the versatility and performance you need to tackle a variety of jobs efficiently. When you’re looking for a solution for both residential and commercial projects, an RZ 43-meter concrete boom pump is a must-have for your fleet.

DY Concrete Pumps Inc. has been meeting the needs of customers throughout Canada and the United States for more than 30 years. Our experienced team will assist in analyzing your projects to identify the RZ boom concrete pumps, parts and accessories required to maximize your productivity and improve your bottom line.

RZ 43-METER CONCRETE BOOM PUMPS

Our RZ-fold concrete boom pumps are available in light- to medium-weight units providing the mobility to navigate high-traffic job sites, busy urban areas and quiet residential neighborhoods. The five-section boom design and continuous swing pedestal offers the flexibility to reach into tight spaces and is ideal for high-volume indoor pouring.

The RZ boom concrete pump design is a simplified, more versatile version of the Z-boom format, allowing for easier operation in a broader range of applications including:

  • Commercial Use: The RZ boom pump offers the best Z-type or roll and fold units have to offer. Our 43-meter concrete boom pump is ideal for commercial jobs where you’re required to pour concrete into mezzanines, beneath beams and into upper-level walls and columns. It’s an exceptional choice when you need to reach over and under multiple obstacles such as trees, branches and power lines, as well as for pouring in structures where there’s only a small opening, such as a window or narrow door.



  • Residential Work: Our 43-meter boom pump more than pays for itself on residential jobs by delivering improved speed and accuracy, as well as a cleaner, quieter and more organized work environment. The five-section RZ boom pattern extends further into buildings for more efficient delivery of concrete, whether you’re finishing a basement floor or pouring into second-floor wall forms. Our truck-mounted pumps eliminate the need for using messy and inefficient traditional mixers and buckets that tend to get stuck in soft earth and require far more manual labor.

PURCHASING RZ BOOM CONCRETE PUMPS FROM DY

Our 43-meter concrete boom pump is among the most popular models in our inventory. DY truck-mounted pumps use less water than other mixing methods for concrete with improved structural integrity and lasting performance with minimal maintenance requirements. We manufacture these units using robotic-welded and high-quality steel — they also feature Rexroth hydraulic pumps, Honeywell PBC control panels and HBC radio remote controls. Additional benefits of purchasing DY RZ boom pumps include:

  • Their ability to mount on truck chassis from leading manufacturers
  • The easier-to-master boom design and operator controls
  • Advanced closed-loop hydraulic system ensures smooth, efficient pump movement and operation.
  • A one-year warranty on parts — excluding wear parts
  • Complete parts, service and technical support

At DY Concrete Pumps, we’re “Taking Utilization to a New Level!” Experience the difference of purchasing from a trusted source of productive and reliable equipment. Contact us online today for more information, or to request a quote on a 43-meter RZ concrete boom pump.

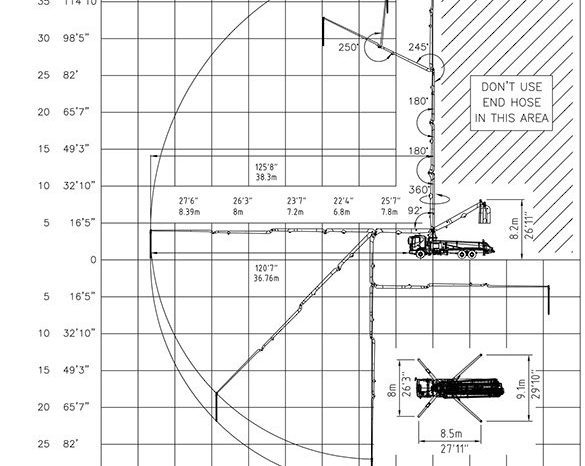

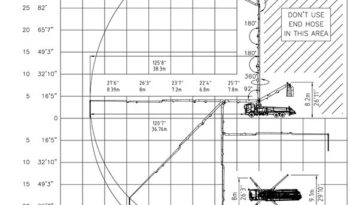

PUMP WORKING RANGE

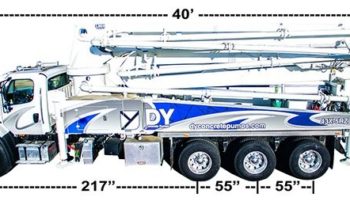

Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.

OPERATOR FRIENDLY HBC RADIO REMOTE
