42m 5 Section RZ by DY

$0

42m 5 Section RZ by DY

Concrete Pump Details

Boom Specifications
Manufacturer
DY
Condition
New
Sections
5 sections
Vertical Reach
41.5m (136'2")
Reach From Front
35.96m (118')
Unfolding Height
8.2m (26'11")
Outrigger
X-Style
Front Spread
7.7m (25'3")
Rear Spread
9m (29'6")
Pump Specifications
Concrete Cylinder Diameter
230mm (9")
Cylinder Stroke Length
2100 mm (83")
Number of Strokes/Min
29
Main Oil Pump
N/A
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
N/A
General Specifications
Water Tank
N/A
Seller Note

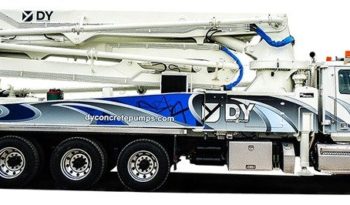

42-METER RZ CONCRETE BOOM PUMPS

If you’re looking to add a lightweight yet powerful and dependable concrete boom pump to your construction equipment fleet, our 42-meter concrete boom pump can meet your needs. Ideally suited for both commercial and residential construction projects, the 42X-5RZ offers unmatched versatility and maneuverability. You’ll be able to complete more work in less time and with greater efficiency than ever, enhancing your construction company’s performance and profitability.



VALUABLE 42-METER CONCRETE BOOM PUMP BENEFITS

The 42X-5RZ concrete boom pump offers a host of features and benefits that will have a positive impact on all your residential and commercial concrete pouring projects:

  • Five-section articulating boom and continuous swing pedestal maximize the boom’s versatility and maneuverability. You’ll be able to use it in tight areas that are off-limits to less agile machines.
  • Easy chassis mounting on trucks from top manufacturers such as Peterbilt, Mack, Freightliner, Kenworth and Western Star.
  • Lightweight design and construction is well-suited for softer ground, while the long horizontal reach allows you to park on more solid terrain if necessary.
  • Operator-friendly HBC radio remote makes the concrete boom pump easy to use and control, even in tight spots or challenging work environments.
  • The flexibility of the 42-meter concrete boom pump enables it reach areas that are inaccessible to many competing models.
  • The revolutionary closed-loop hydraulic system provides smooth, trouble-free pump operation even during periods of heavy use.



KEY 42X-5RZ TECHNICAL SPECIFICATIONS

Our 42-meter concrete boom pump features a horizontal reach capacity of 123’. The reach capacity from the front of your vehicle is 118’. The boom pump’s reach depth is 98’ 5” and the total unfolding height is 26’ 11”. Standard features include hard-chromed material cylinders and a hopper vibrator. The diameter of the cylinders is 9”.



TRUST OUR MORE THAN 30 YEARS OF CONCRETE BOOM PUMP EXPERIENCE

Our strategic alliance with DY International in Korea enables DY Concrete Pumps to serve the needs of the entire North American marketplace. Our more than 30 years of concrete boom pump manufacturing expertise allows us to offer high-quality, easy-to-use products at competitive prices along with world-class support. We operate facilities in Calgary, AB, Tampa, FL, and Dallas, TX, to provide fast, efficient service to our large and growing North American customer base. This includes in-person visits from well-trained field sales personnel, reliable telephone technical support and complete start-up assistance so you can learn how to use your new concrete pump the right way.

You’ll also enjoy fast access to parts for our 42-meter concrete boom pump and every other product in our inventory. We understand the importance of getting parts quickly to minimize disruptions to your construction operation. That’s why we offer same- and next-day shipping for all replacement parts.



FIND OUT MORE ABOUT ADDING THE 42X-5RZ TO YOUR CONSTRUCTION EQUIPMENT FLEET

For more information about the 42-meter concrete boom pump from DY Concrete Pumps, just fill out and submit the convenient online contact form and we’ll respond quickly. We’ll also be happy to provide a no-obligation pump quote.

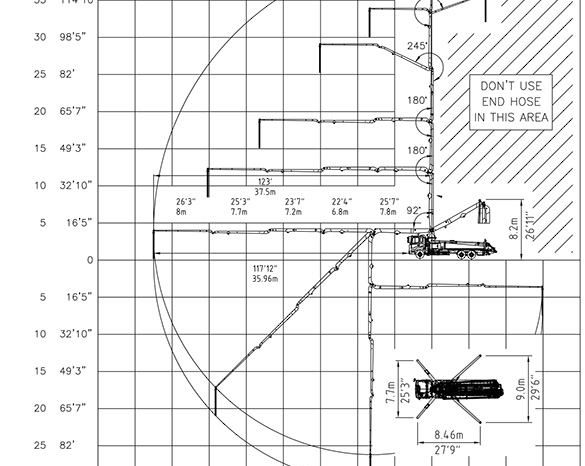

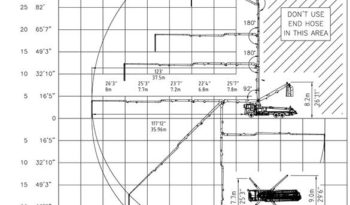

PUMP WORKING RANGE



Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.

OPERATOR FRIENDLY HBC RADIO REMOTE
