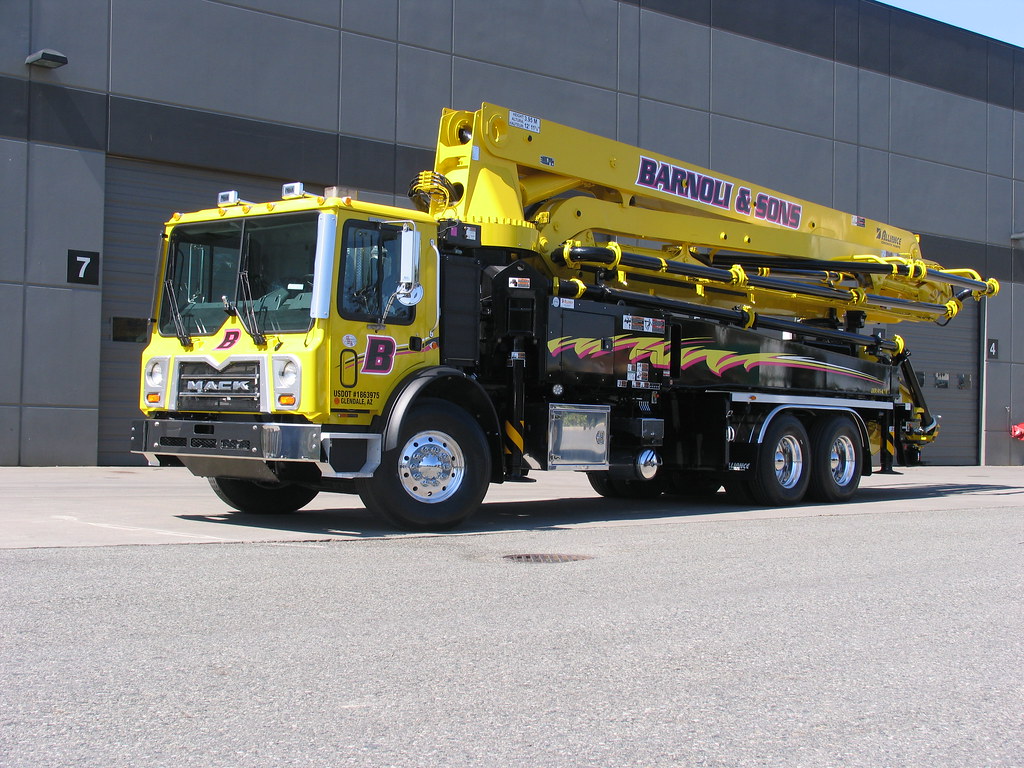

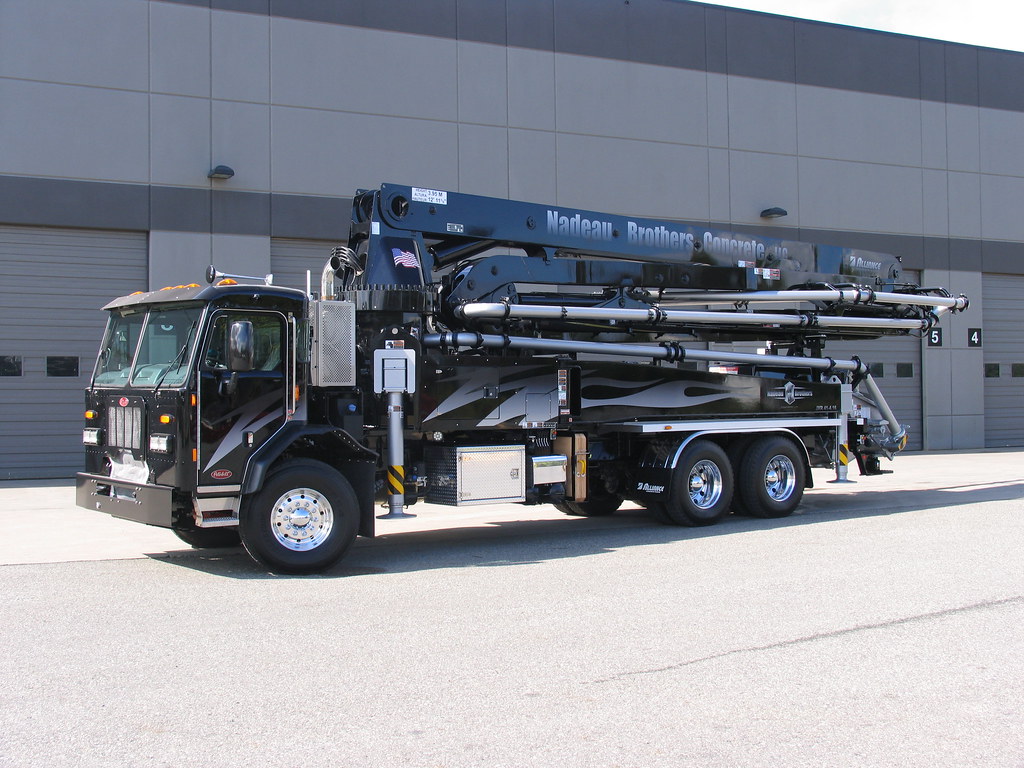

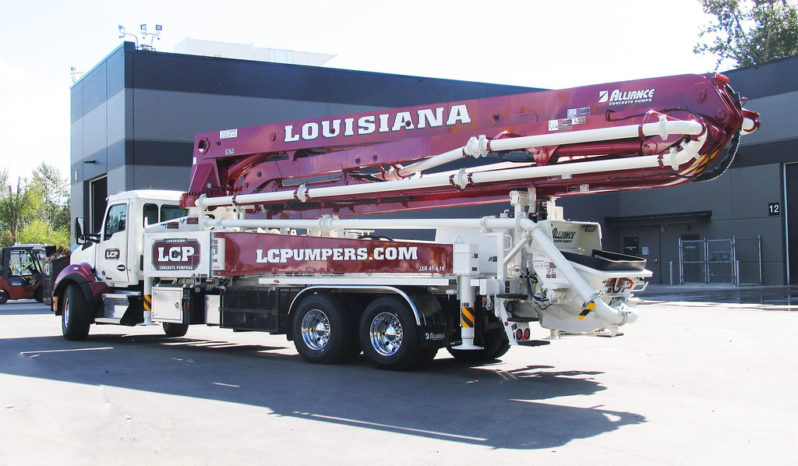

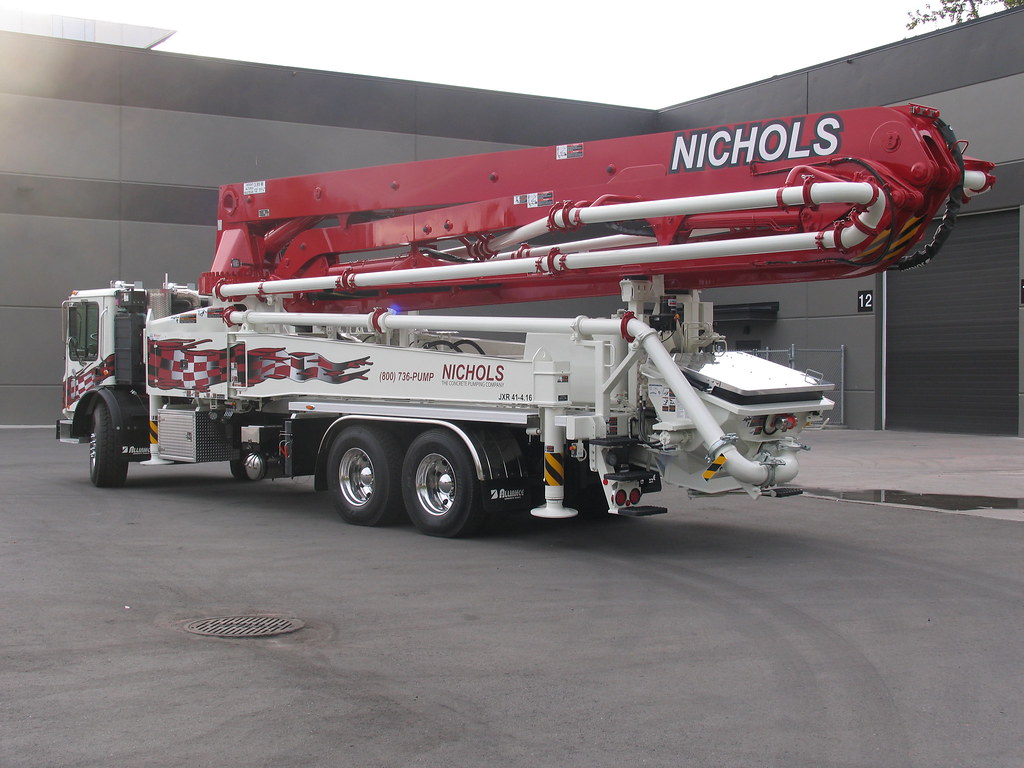

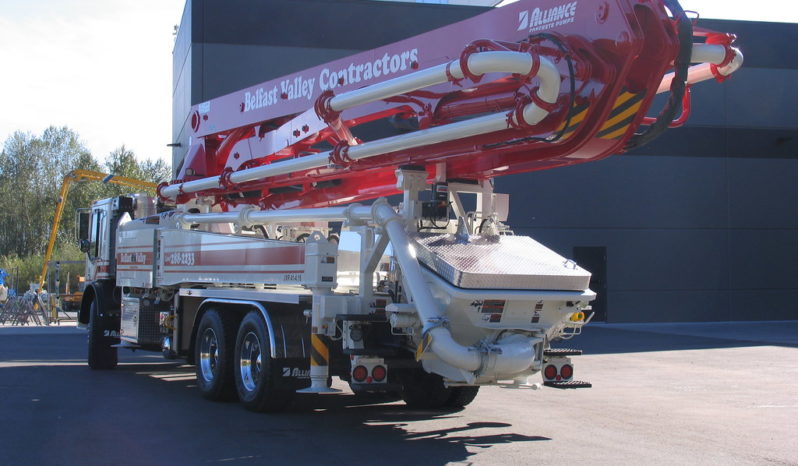

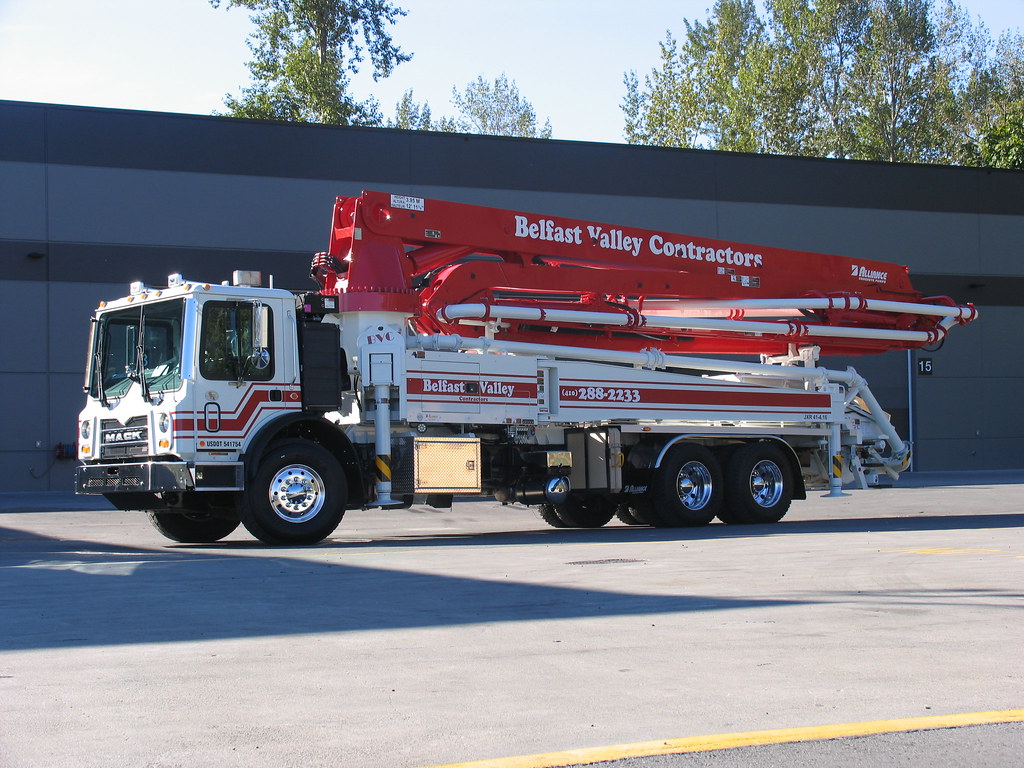

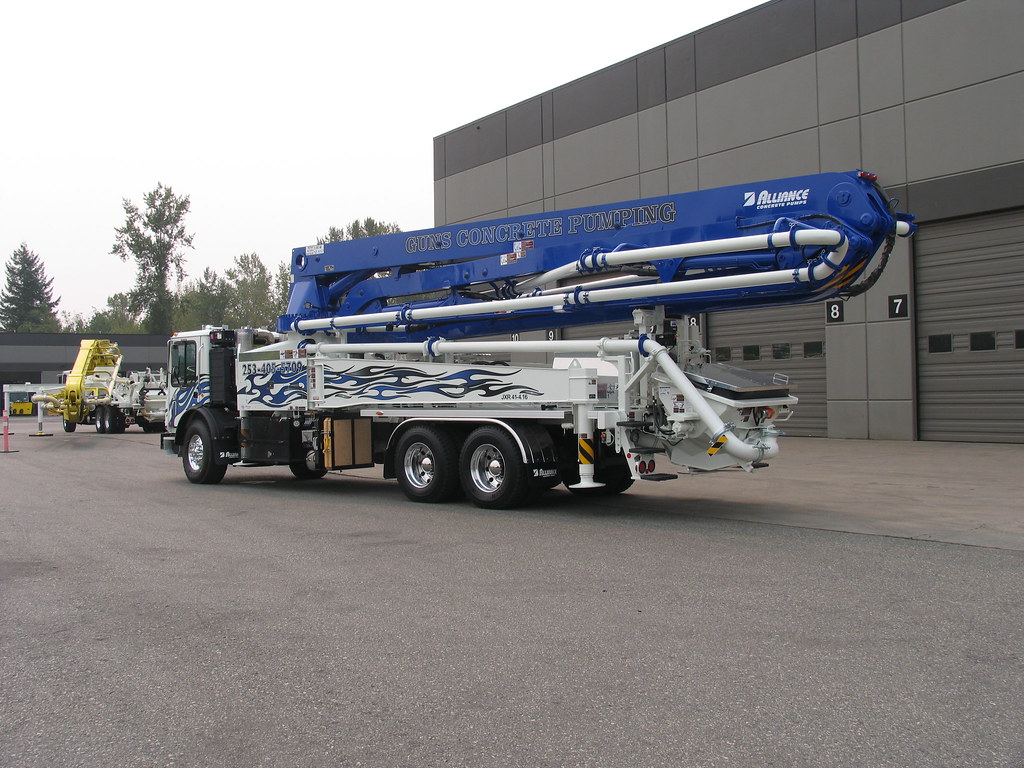

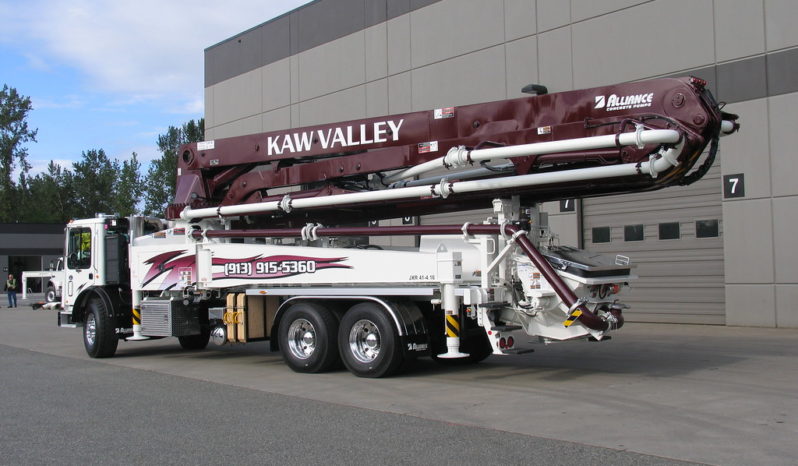

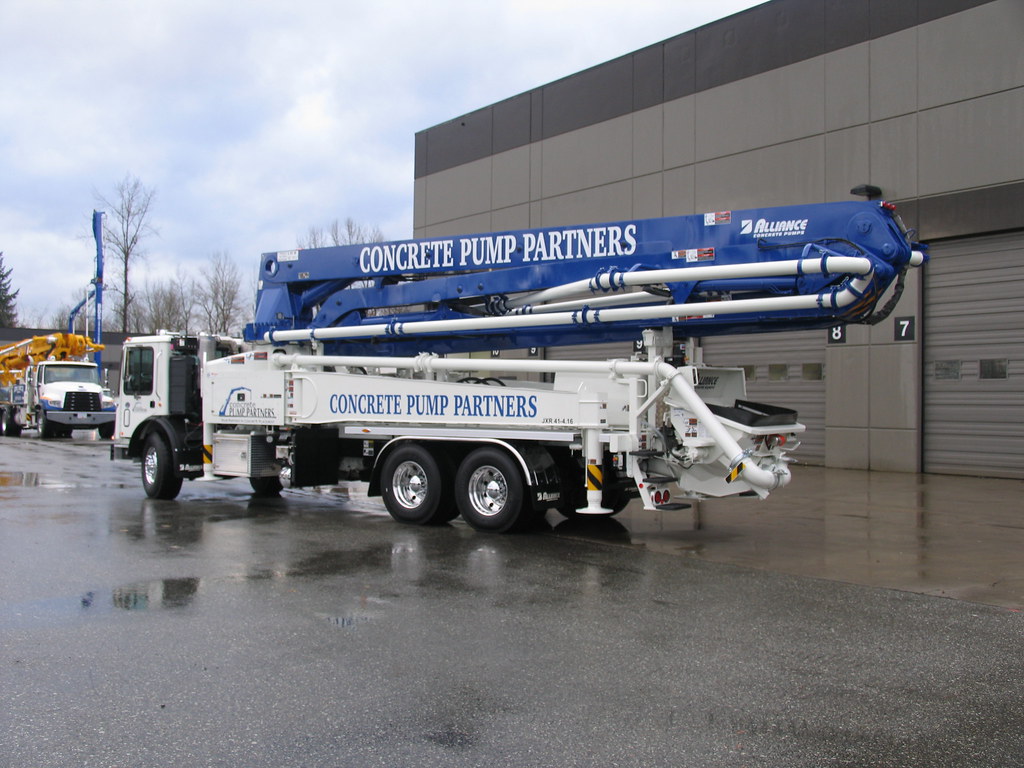

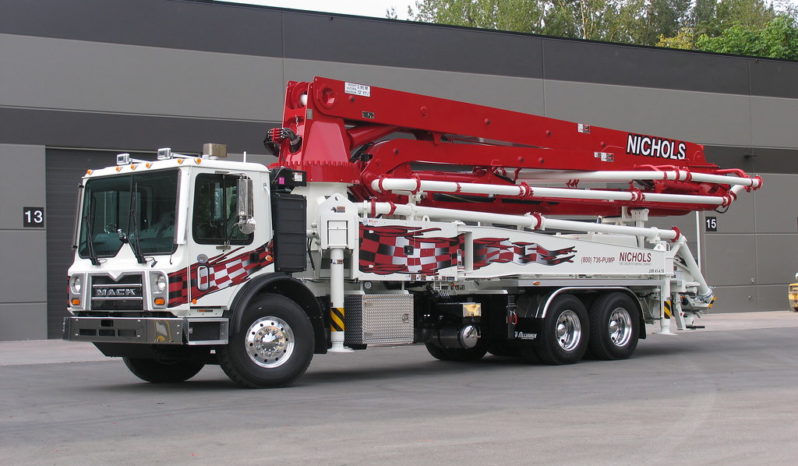

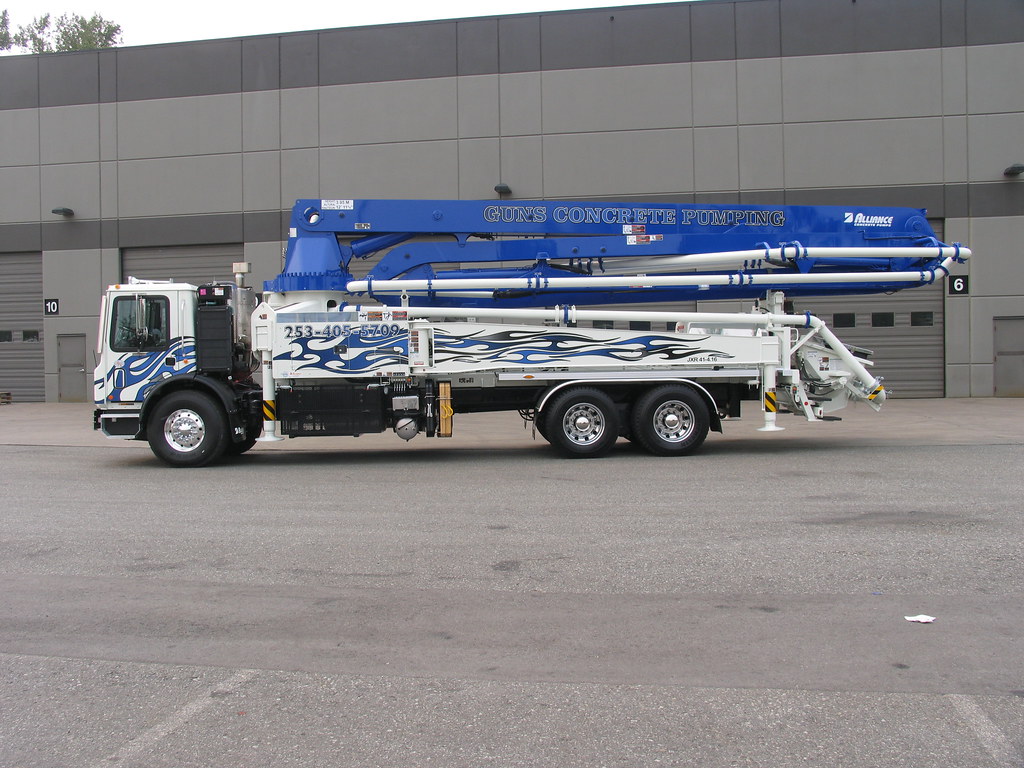

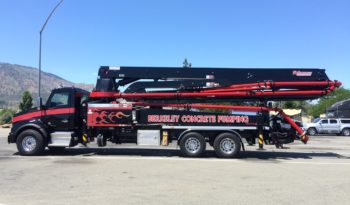

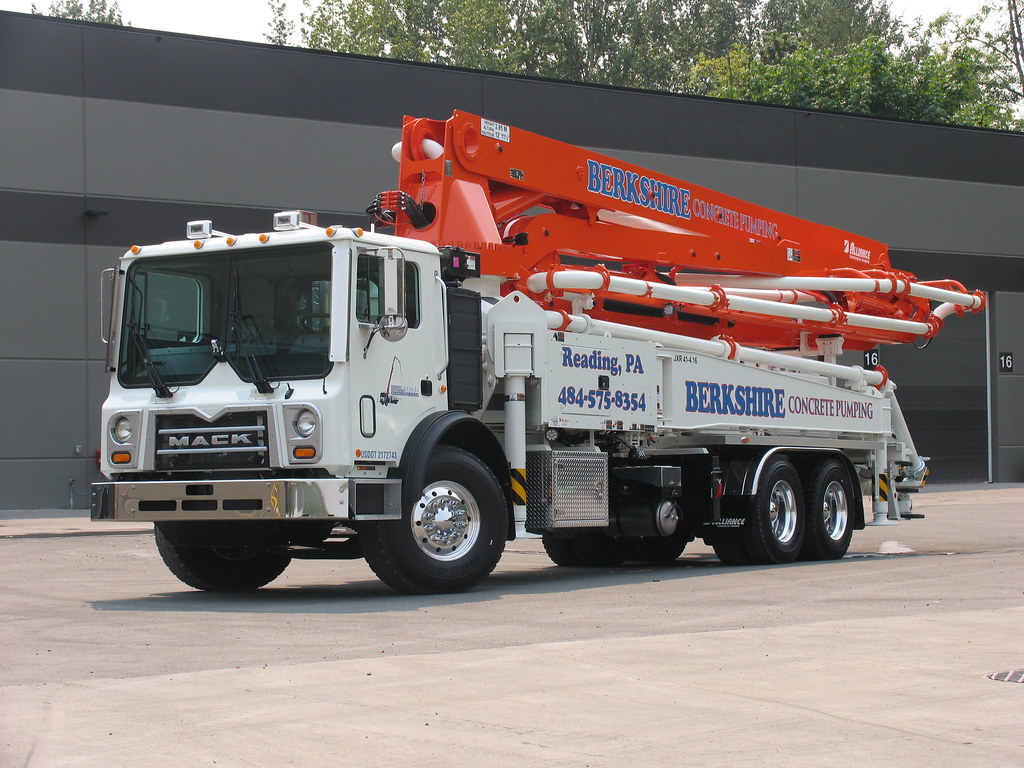

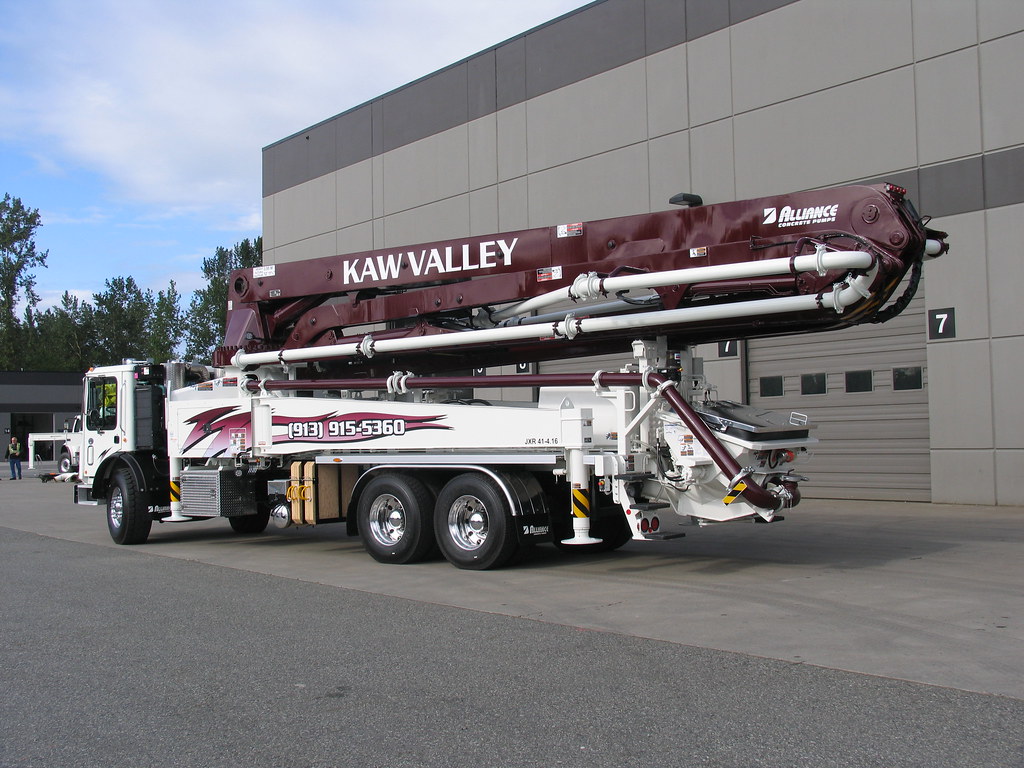

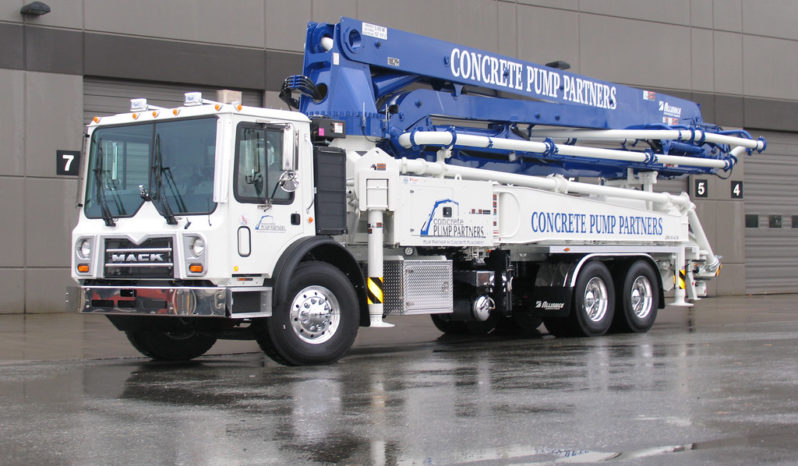

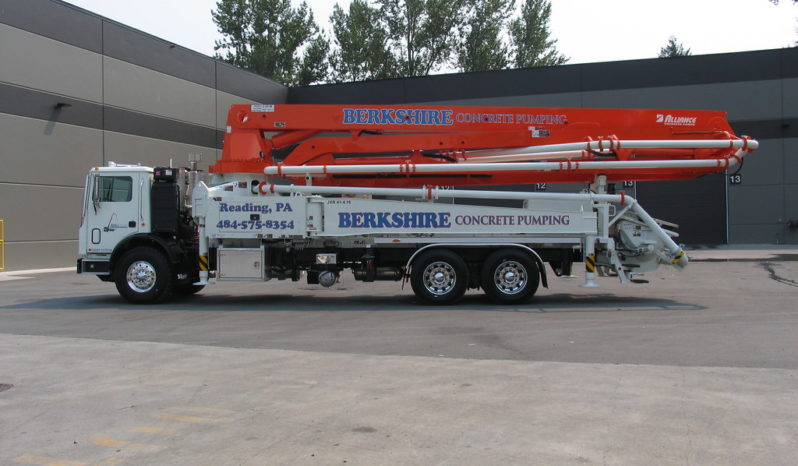

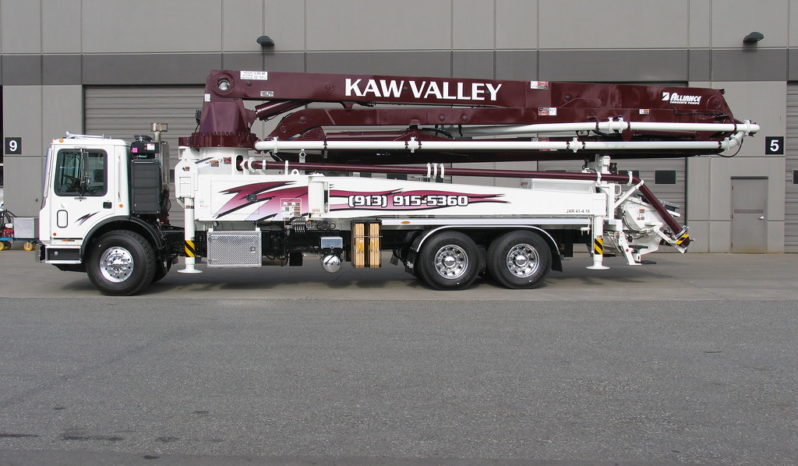

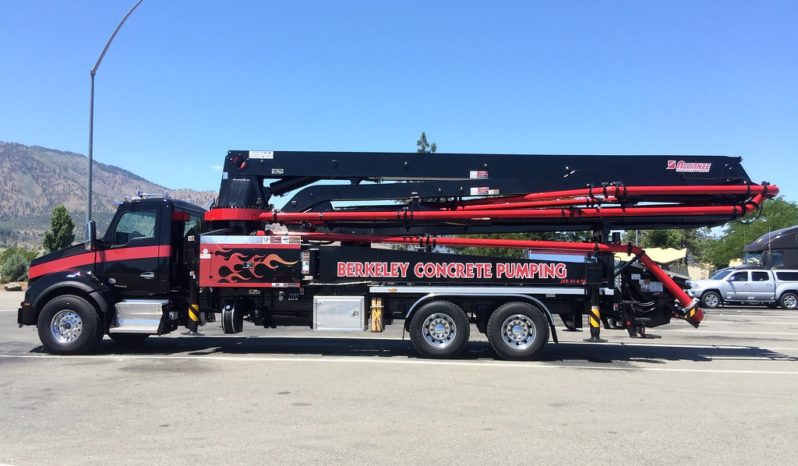

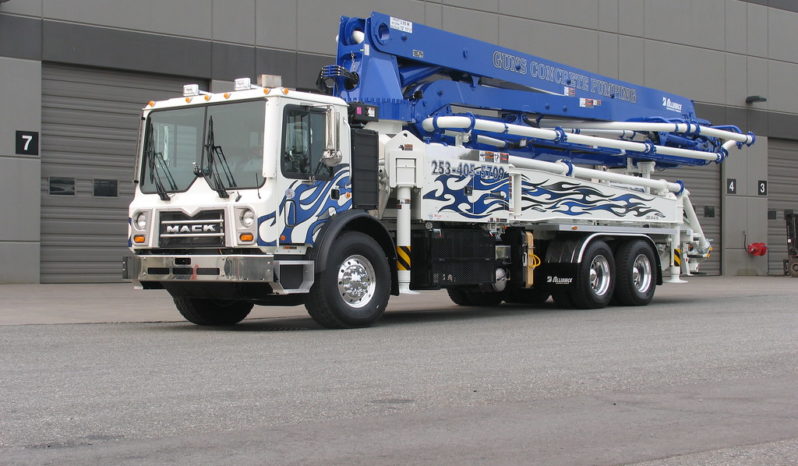

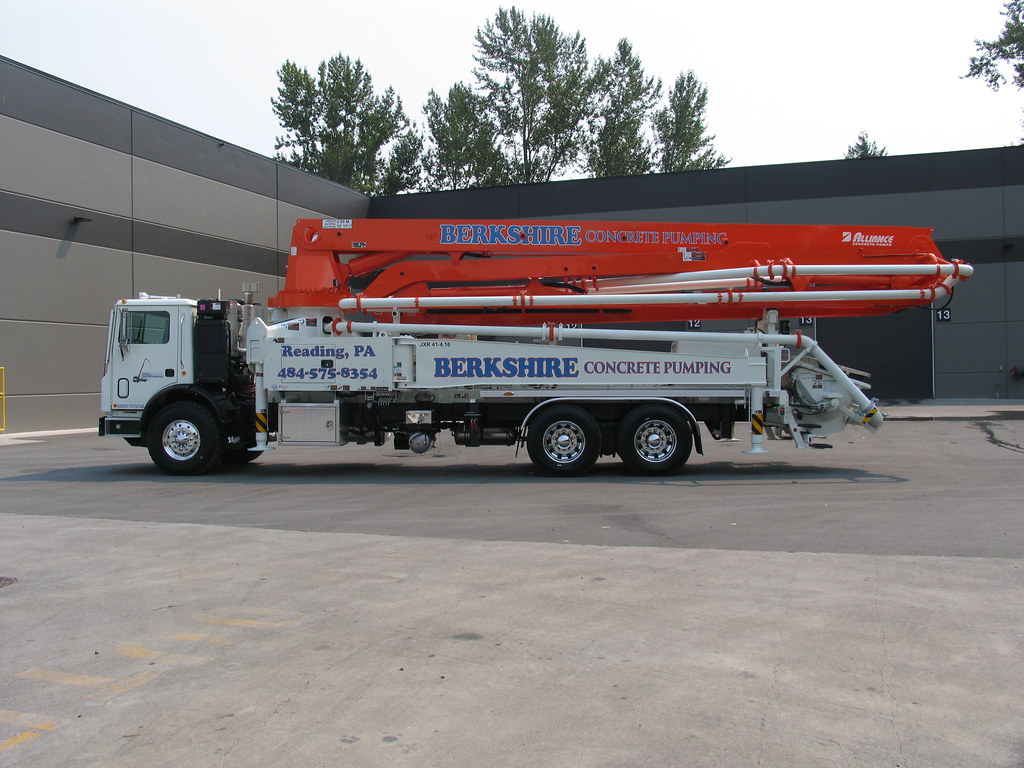

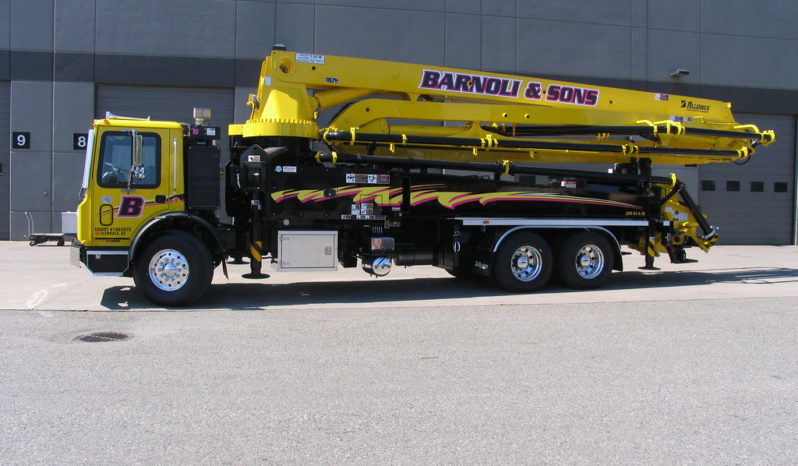

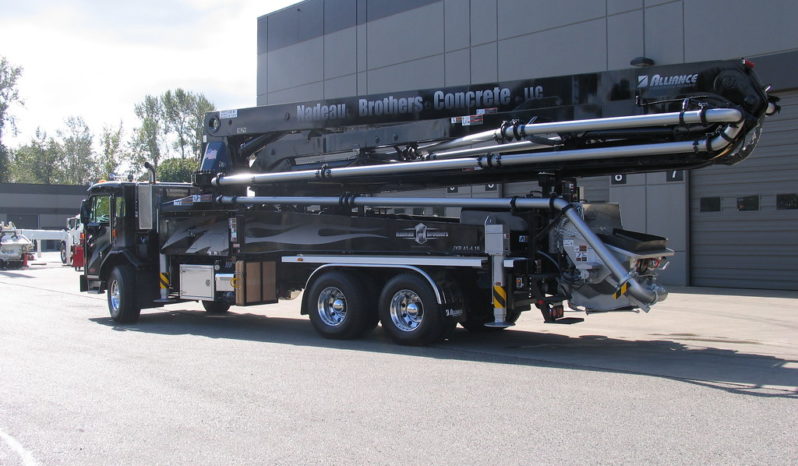

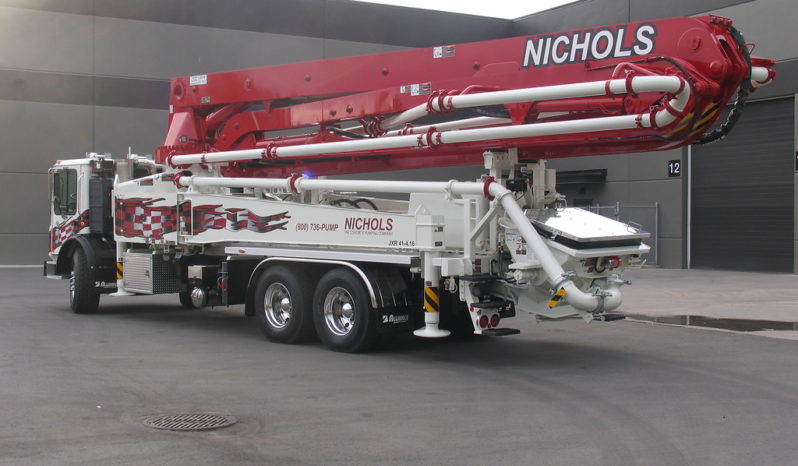

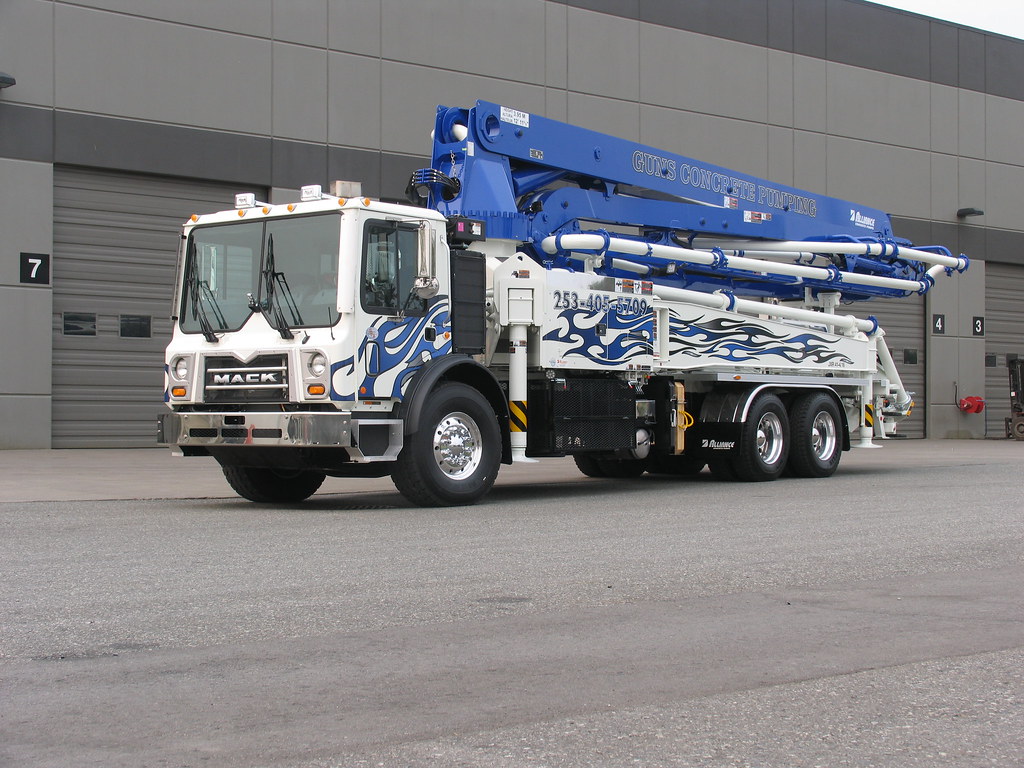

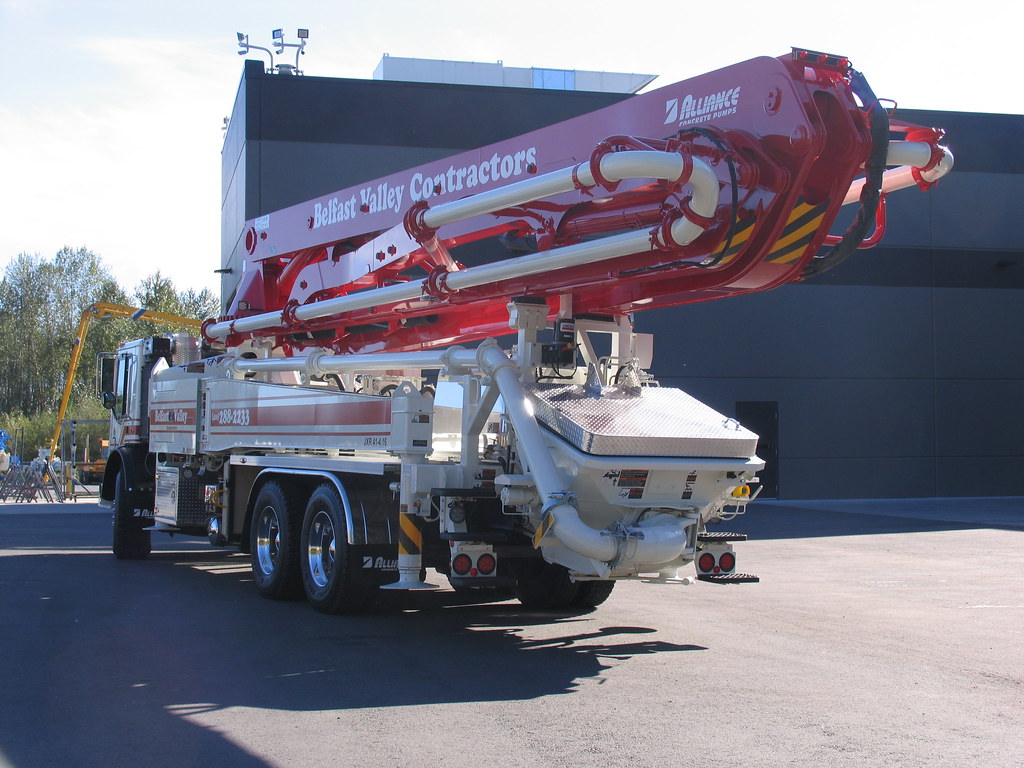

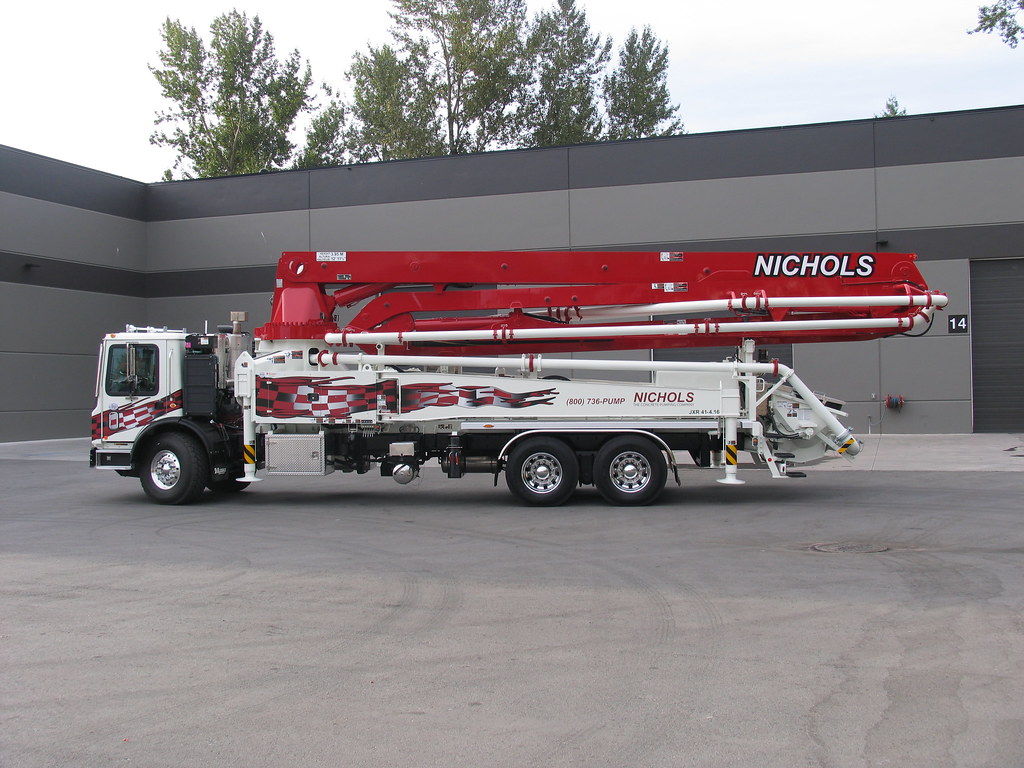

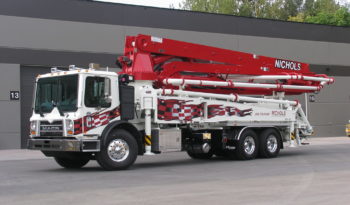

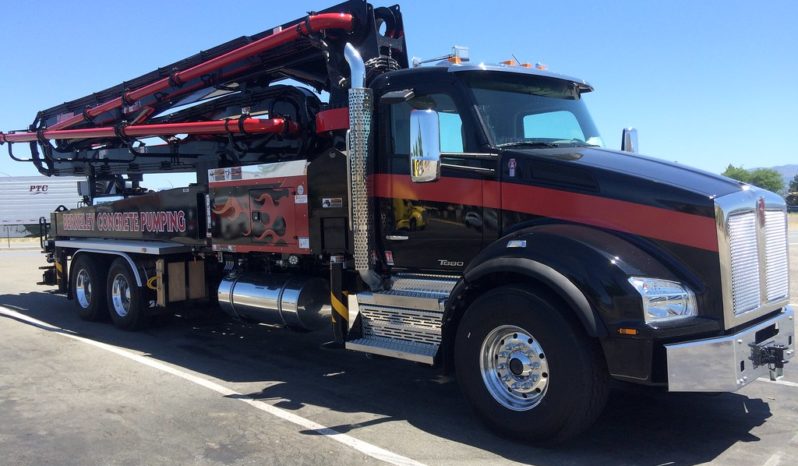

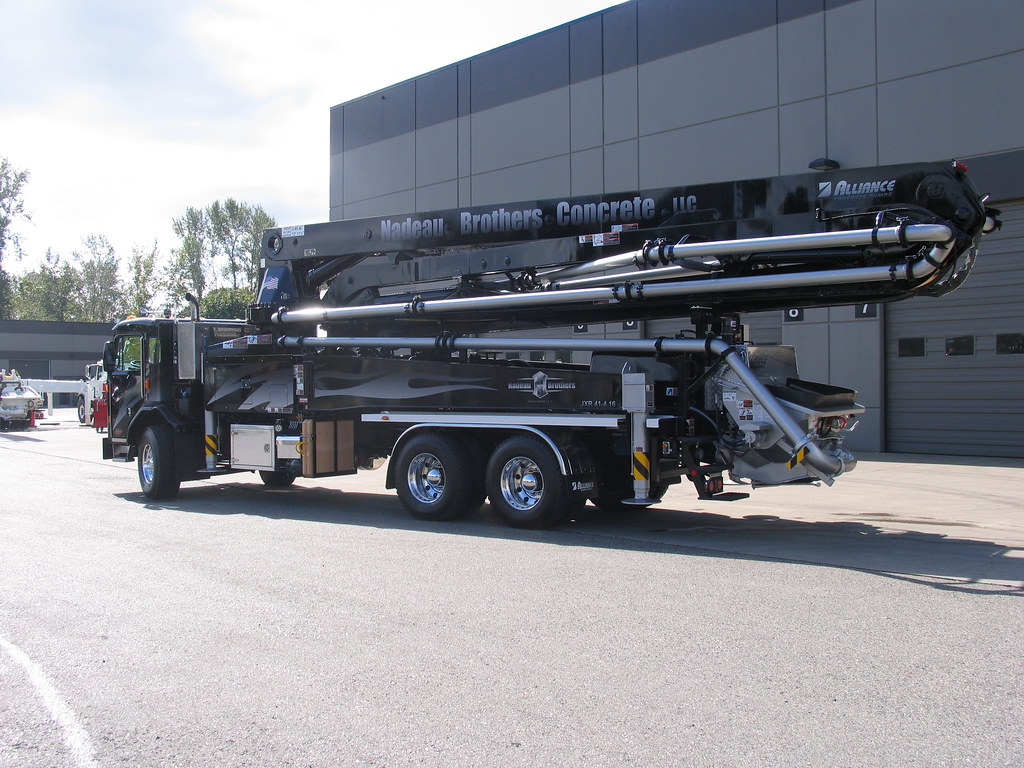

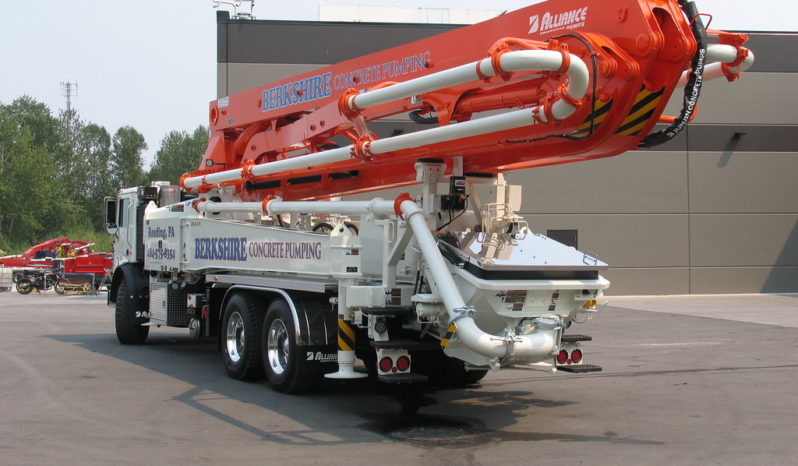

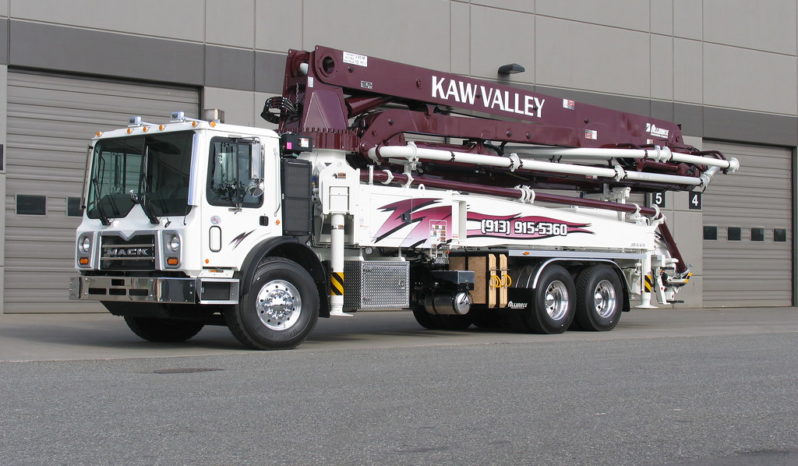

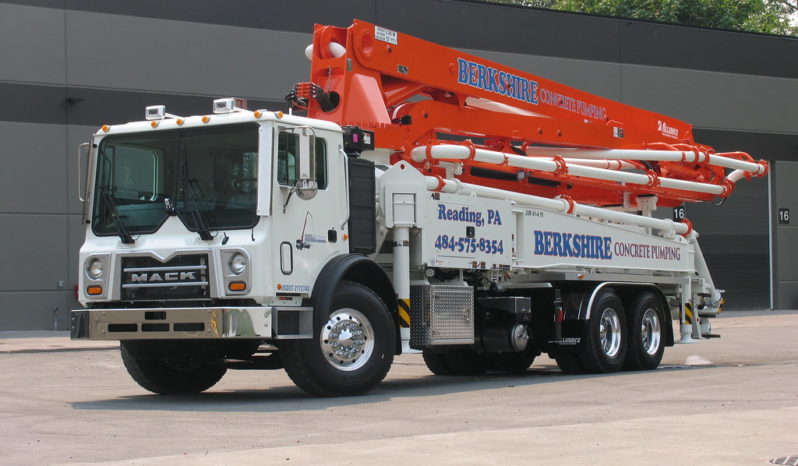

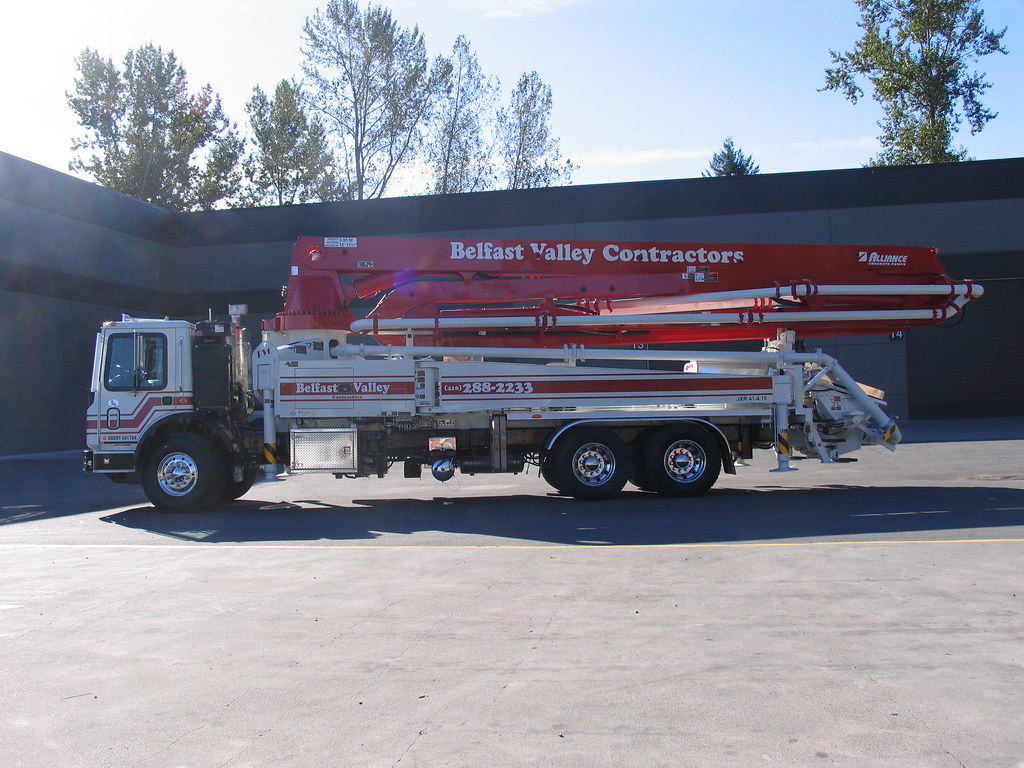

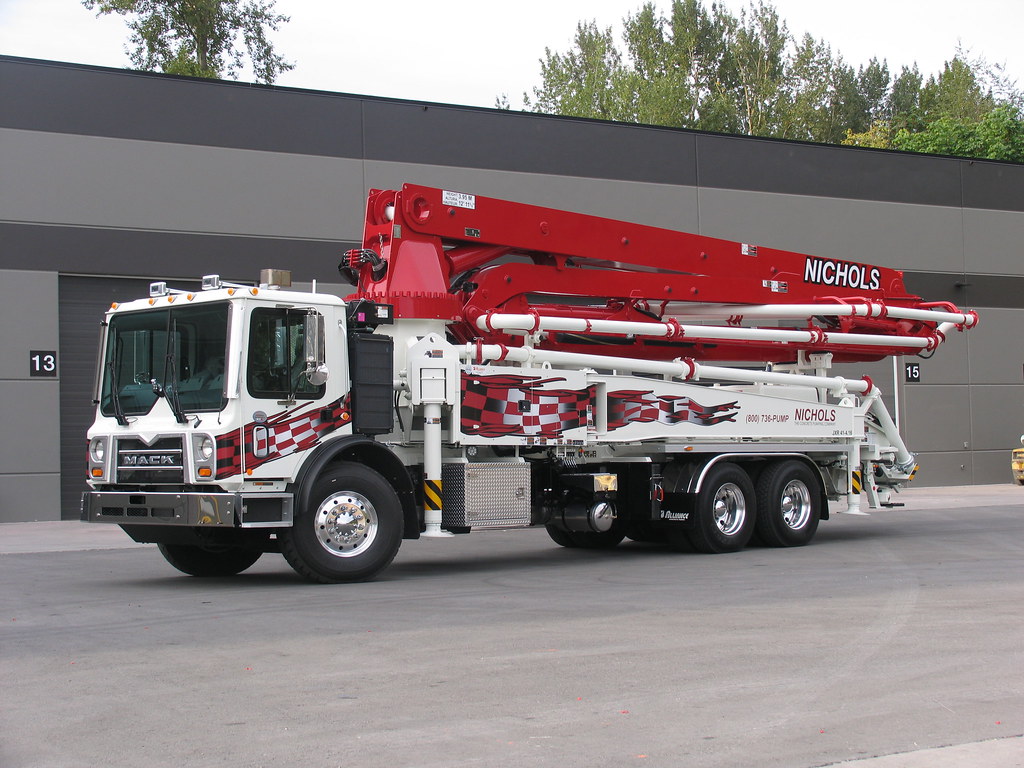

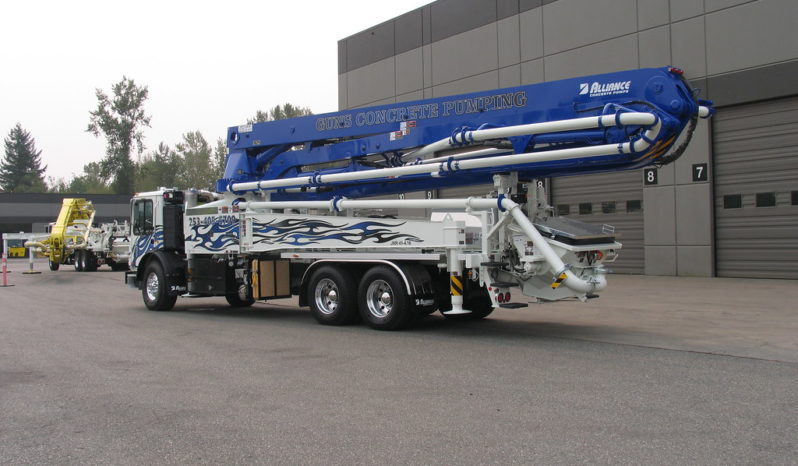

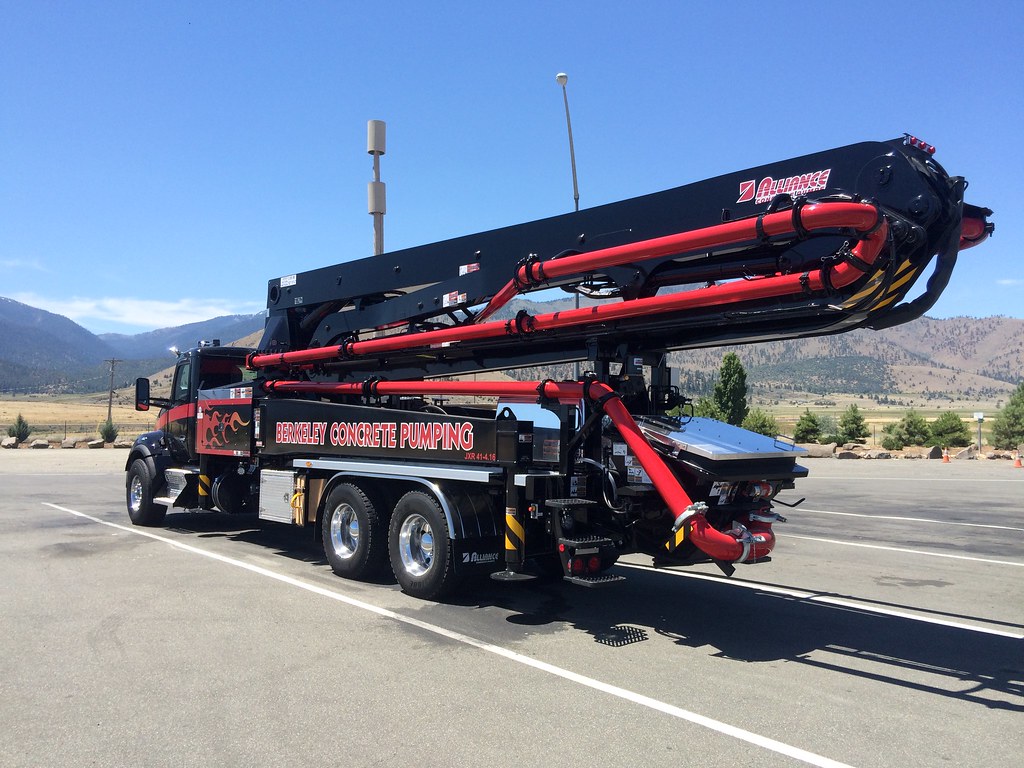

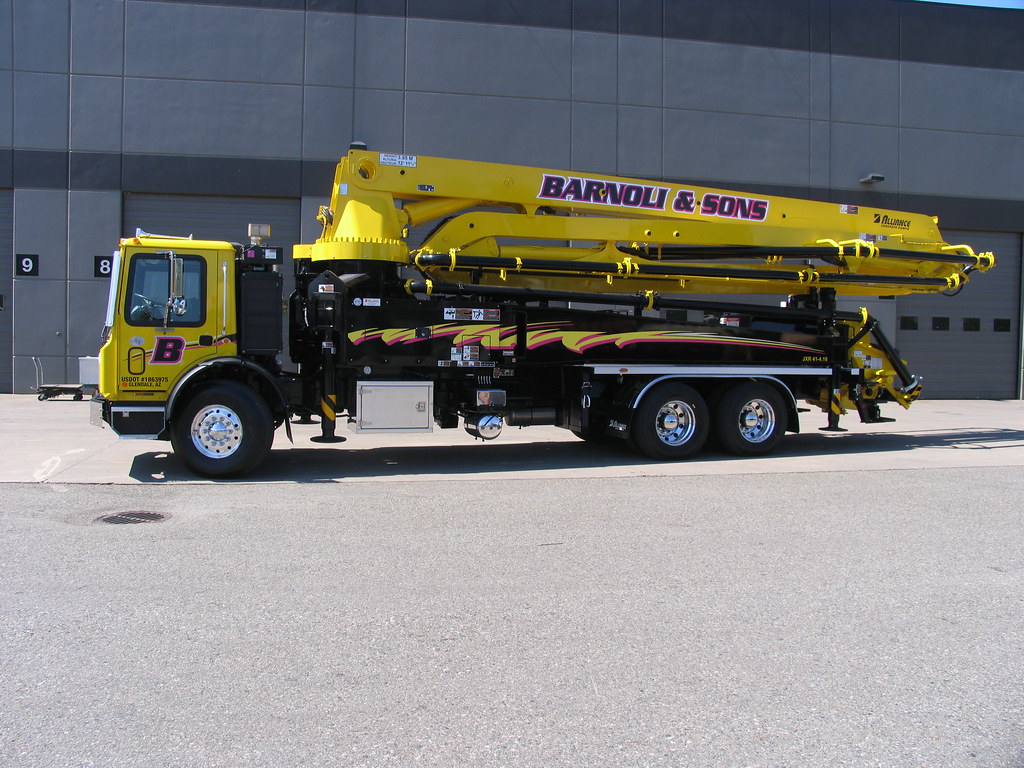

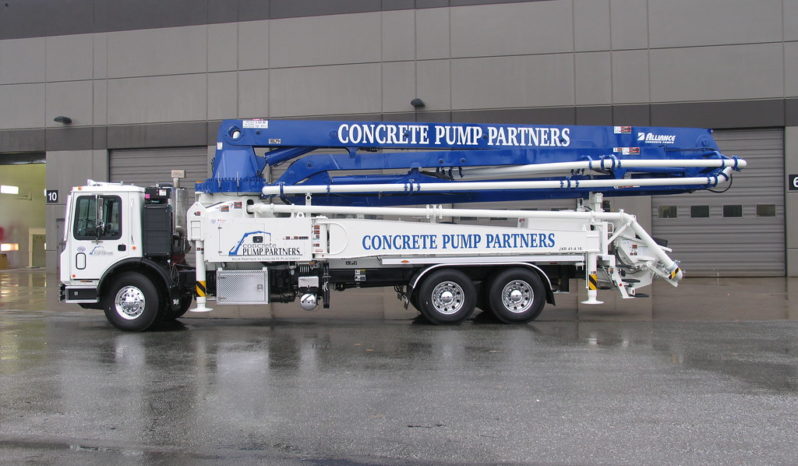

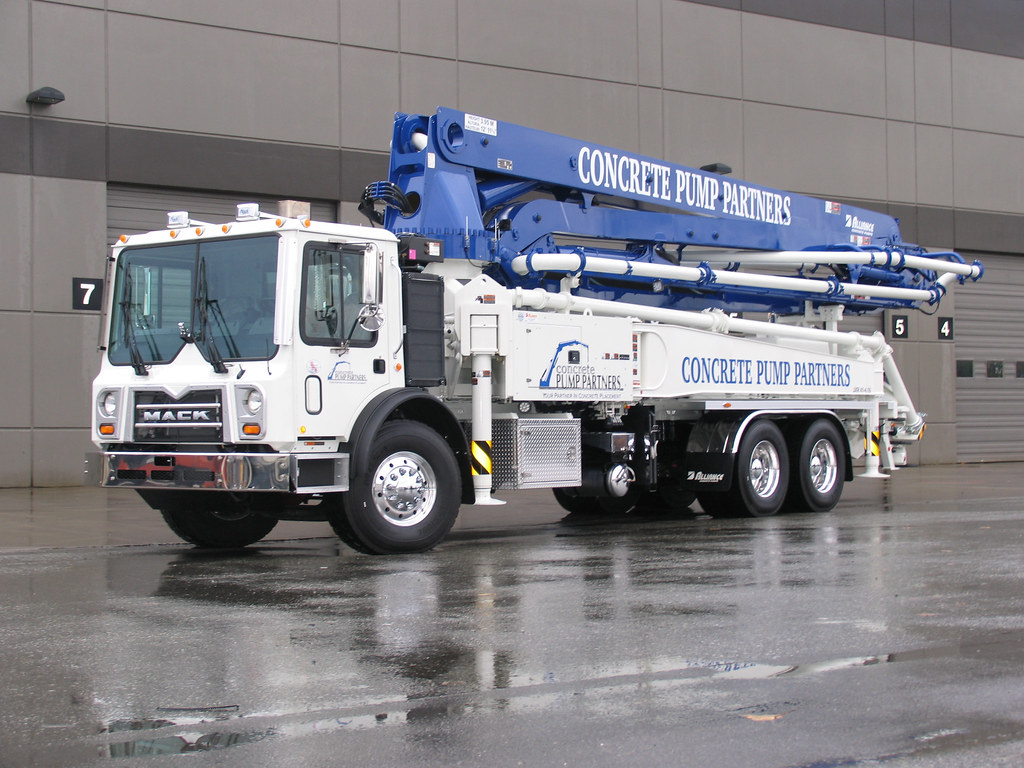

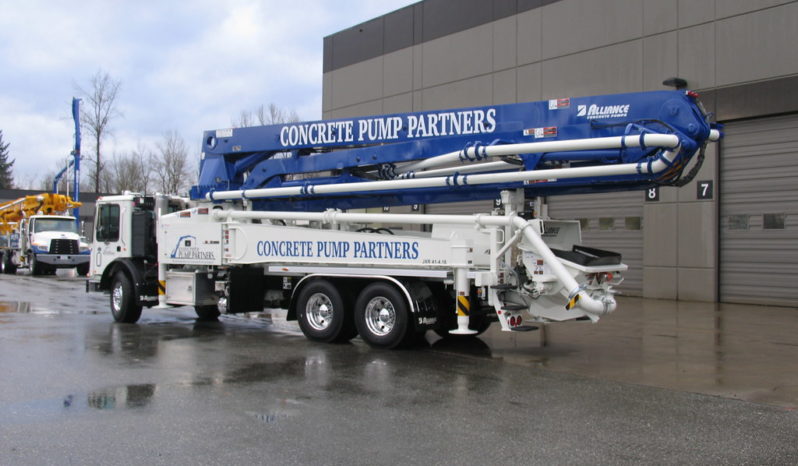

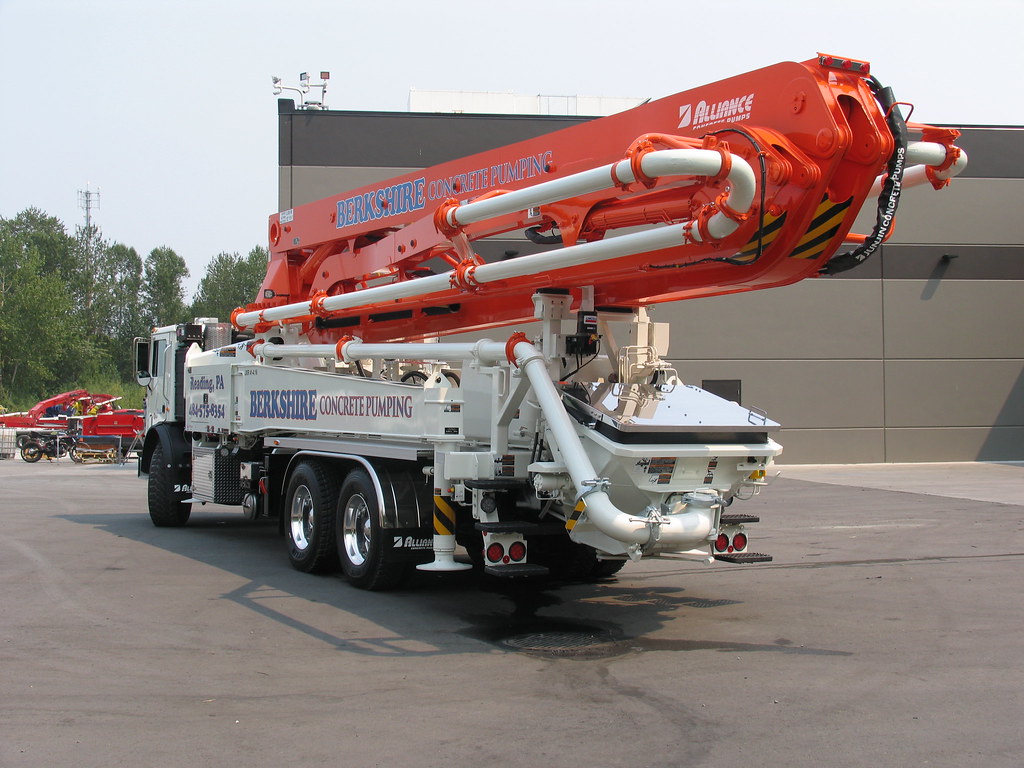

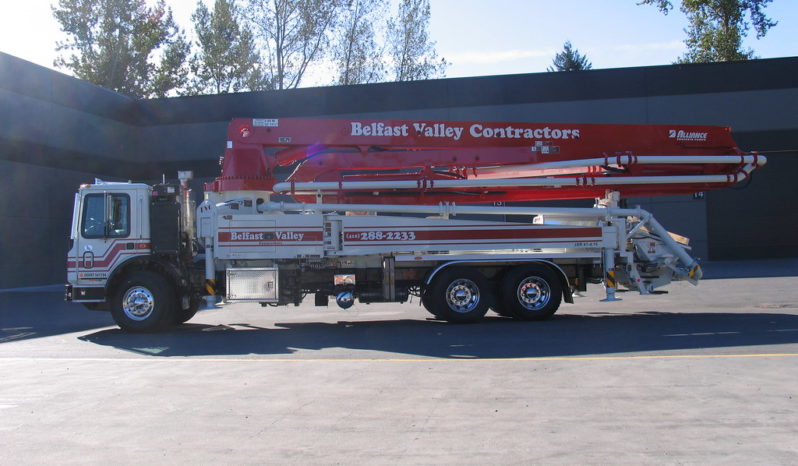

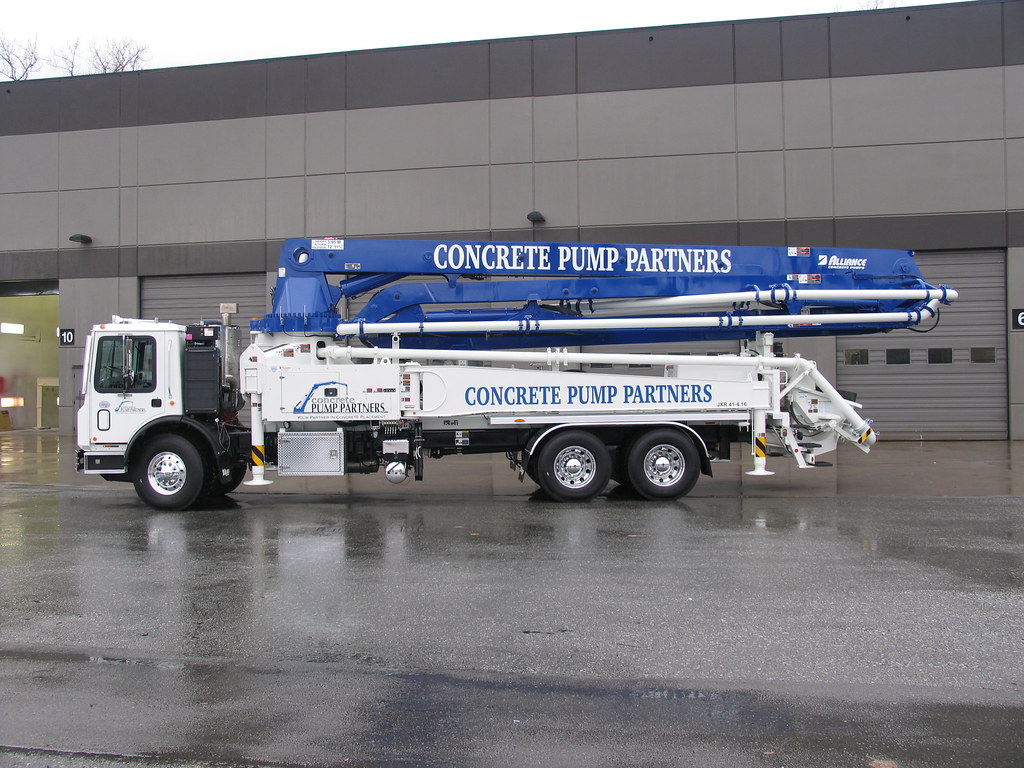

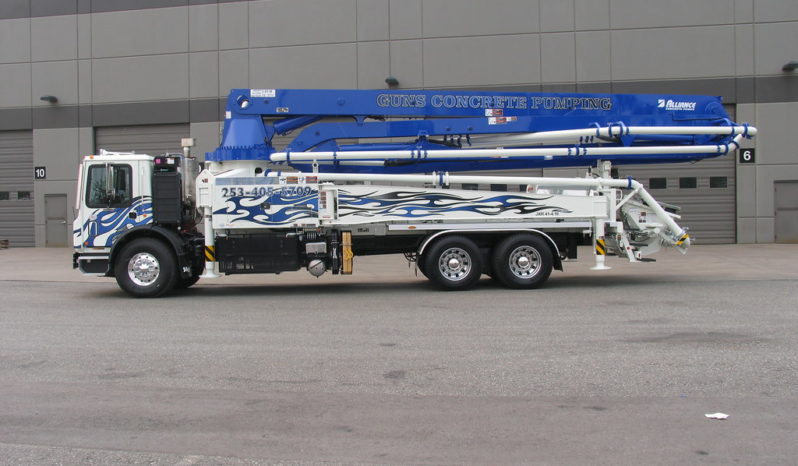

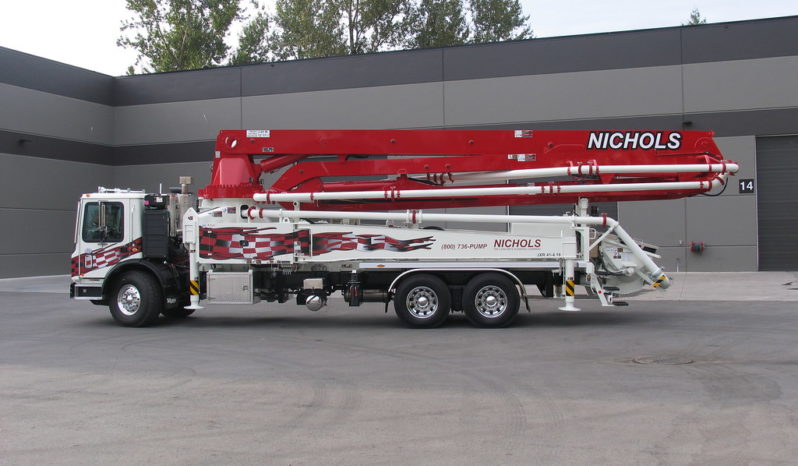

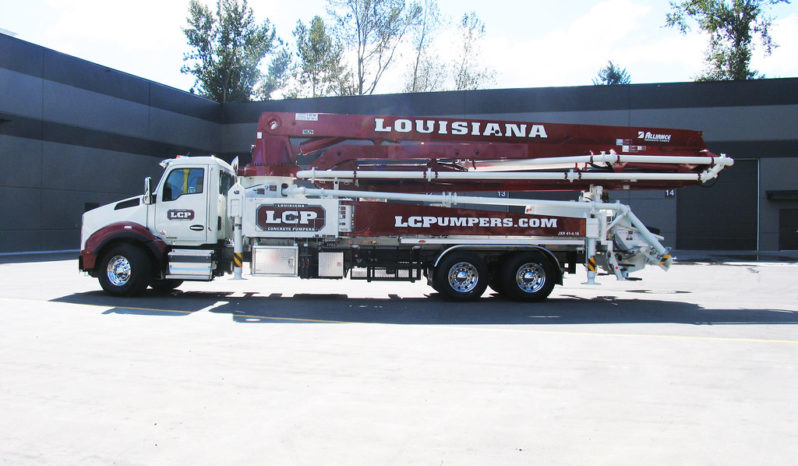

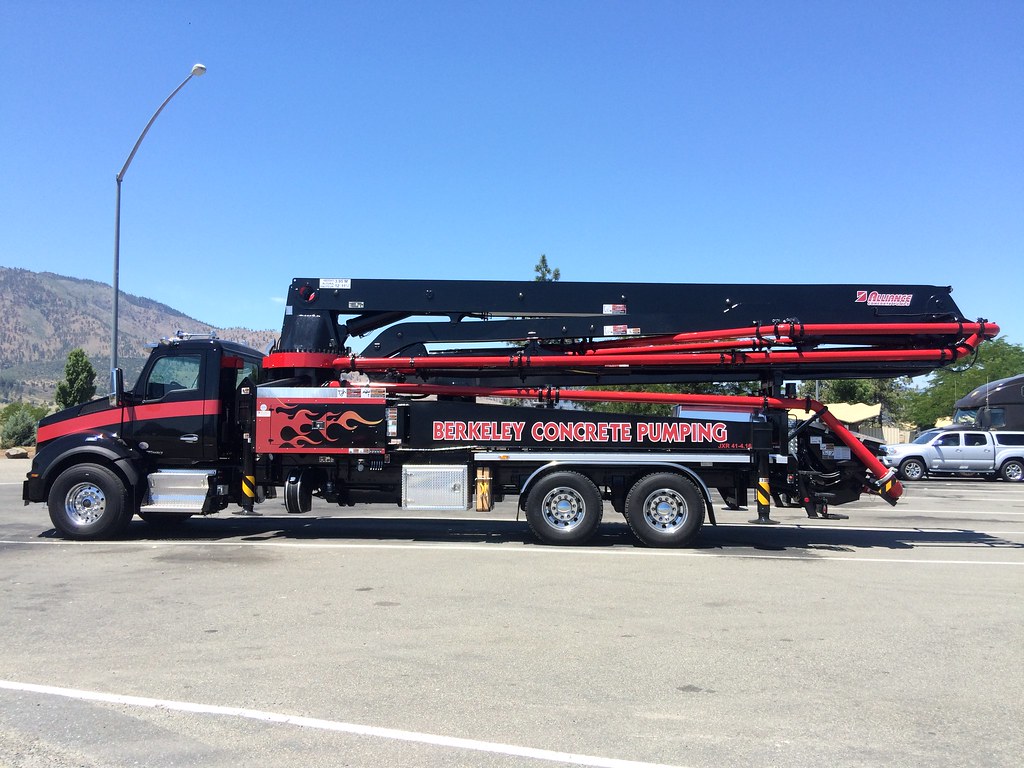

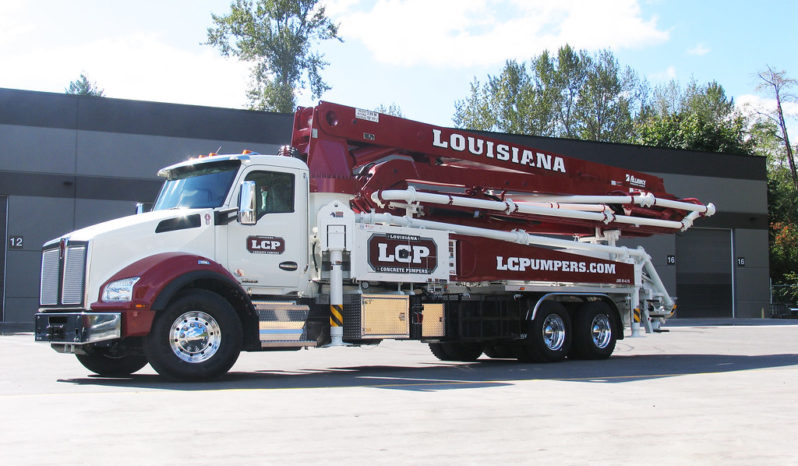

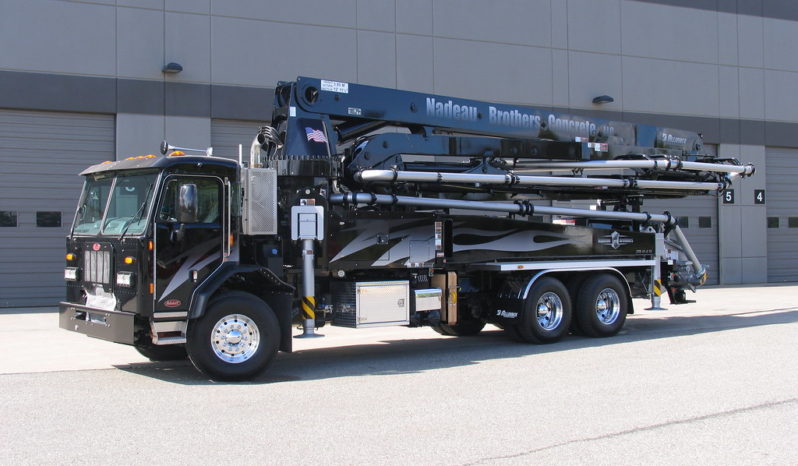

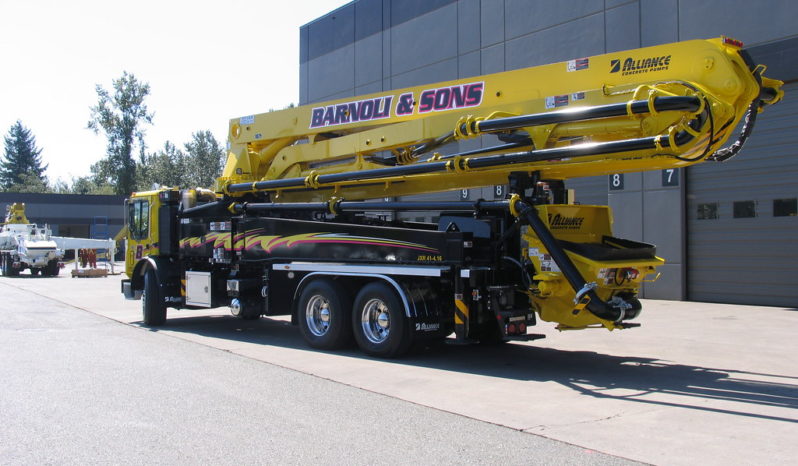

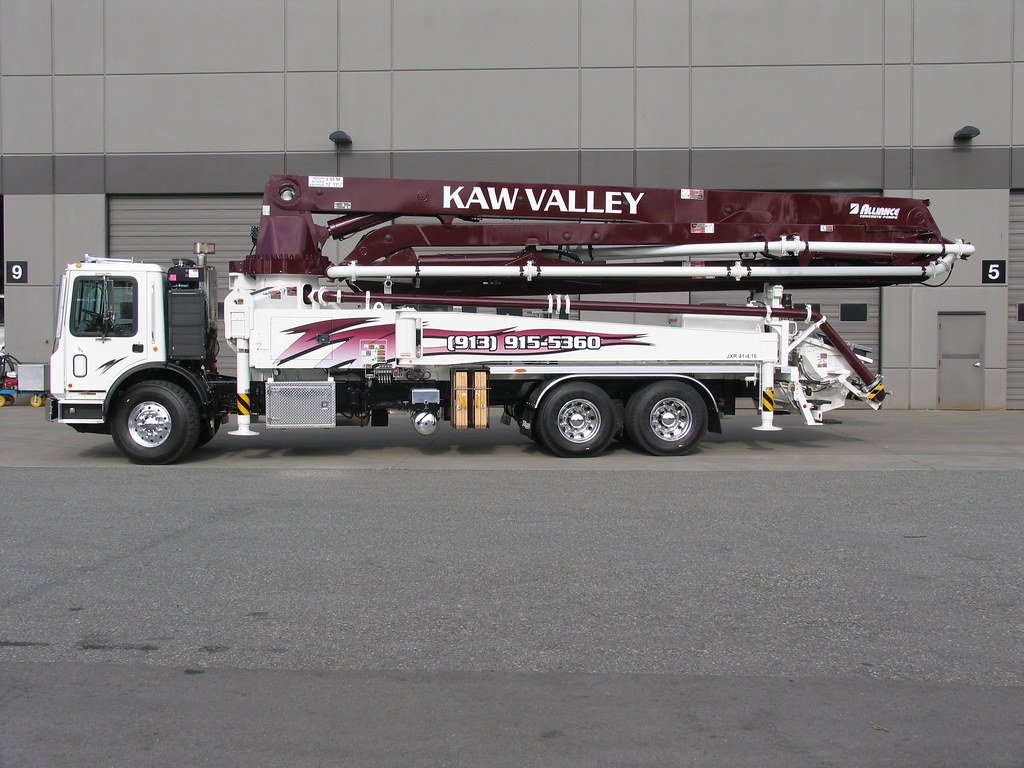

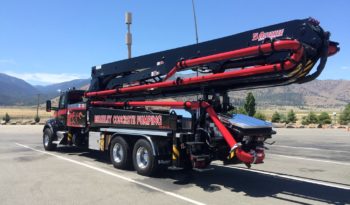

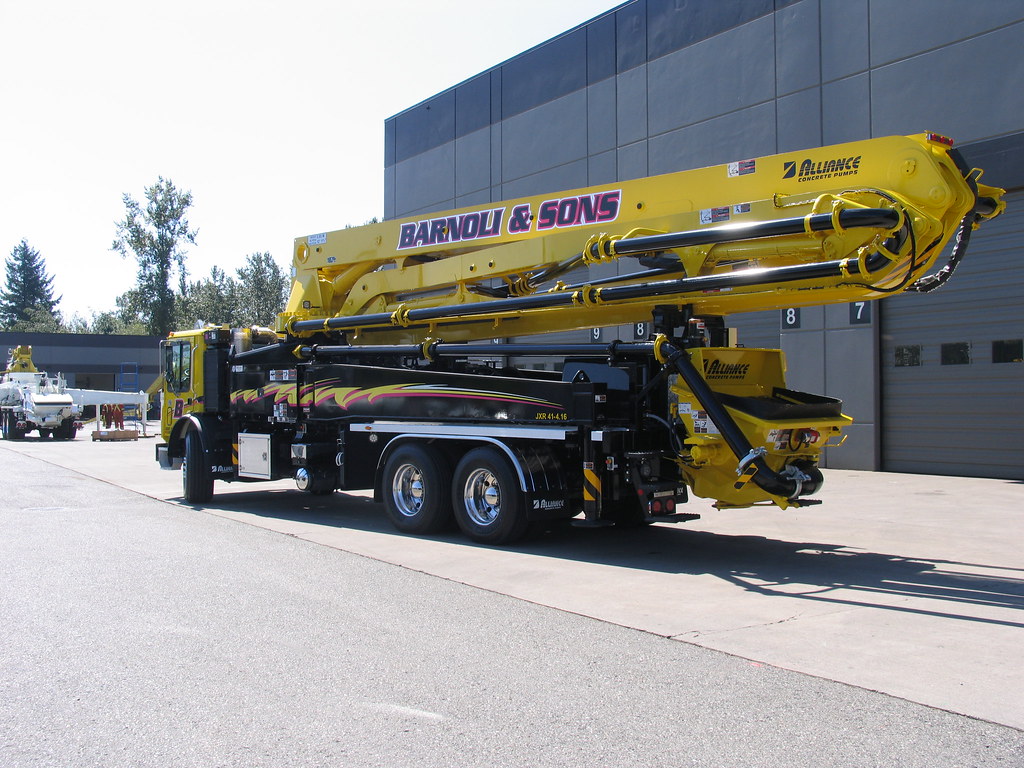

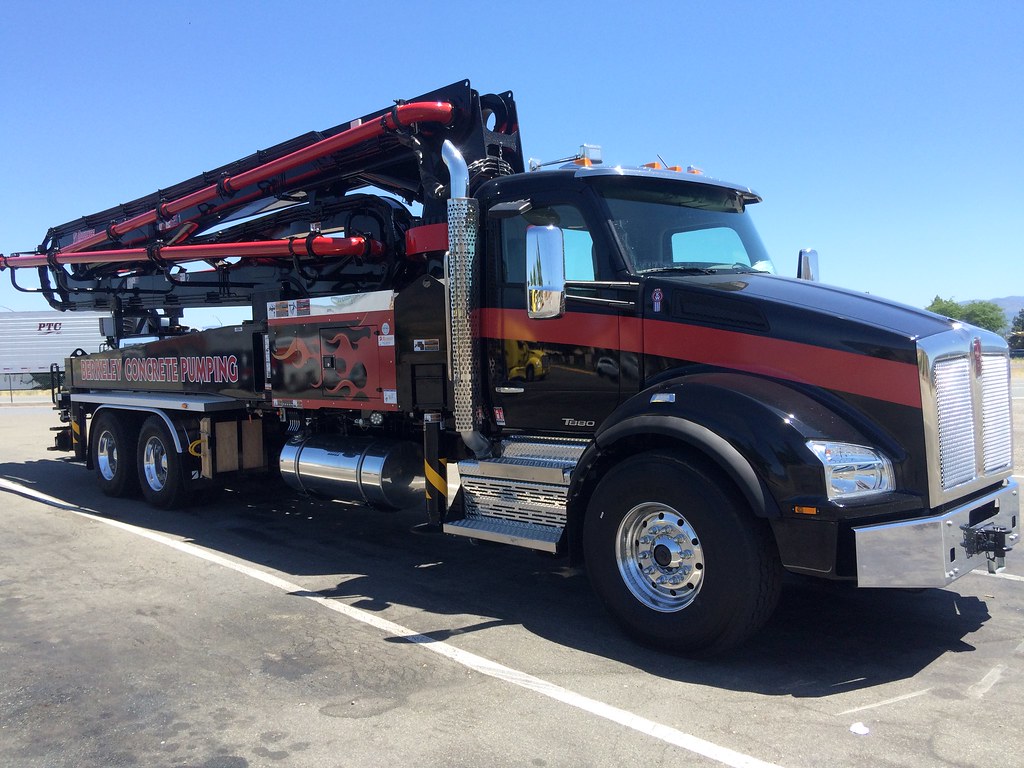

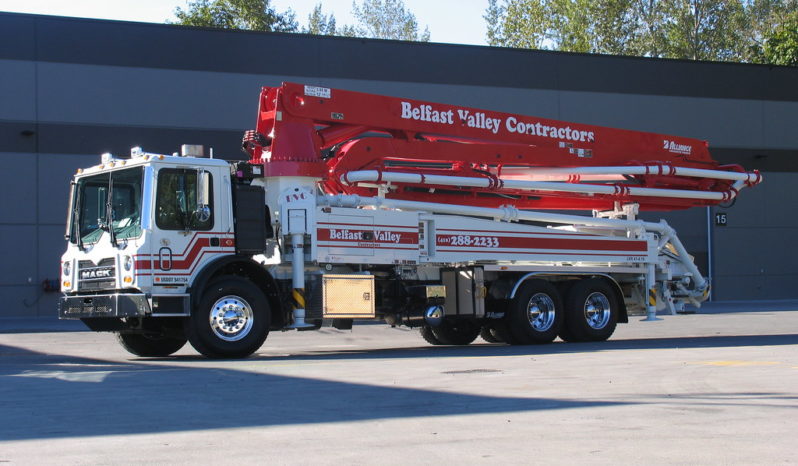

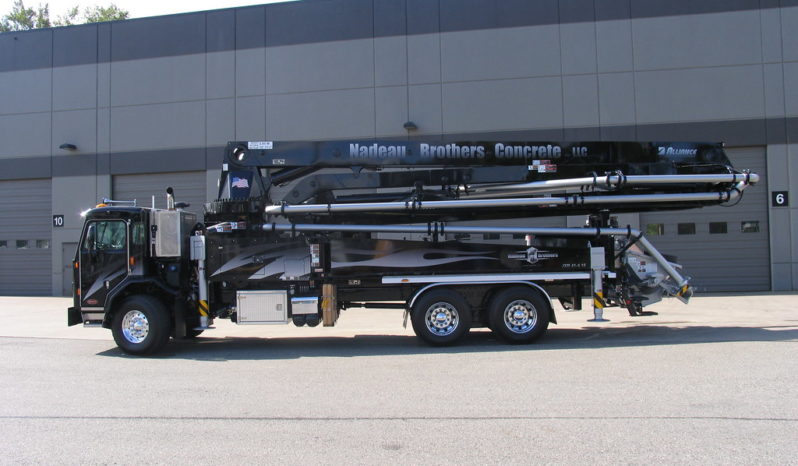

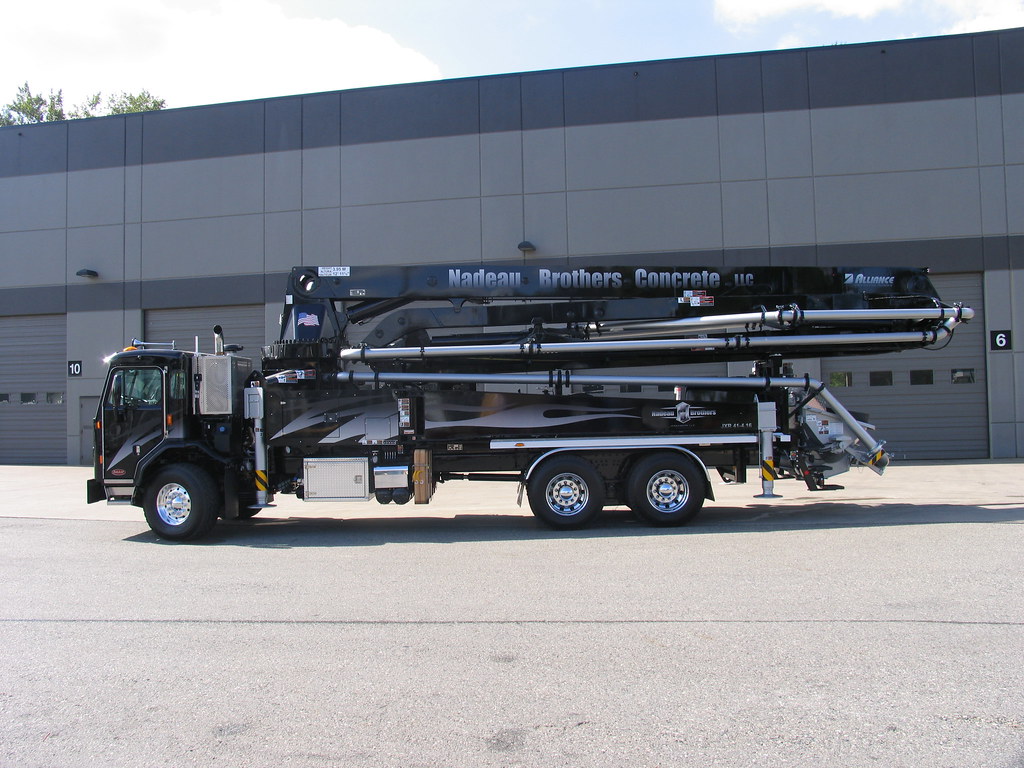

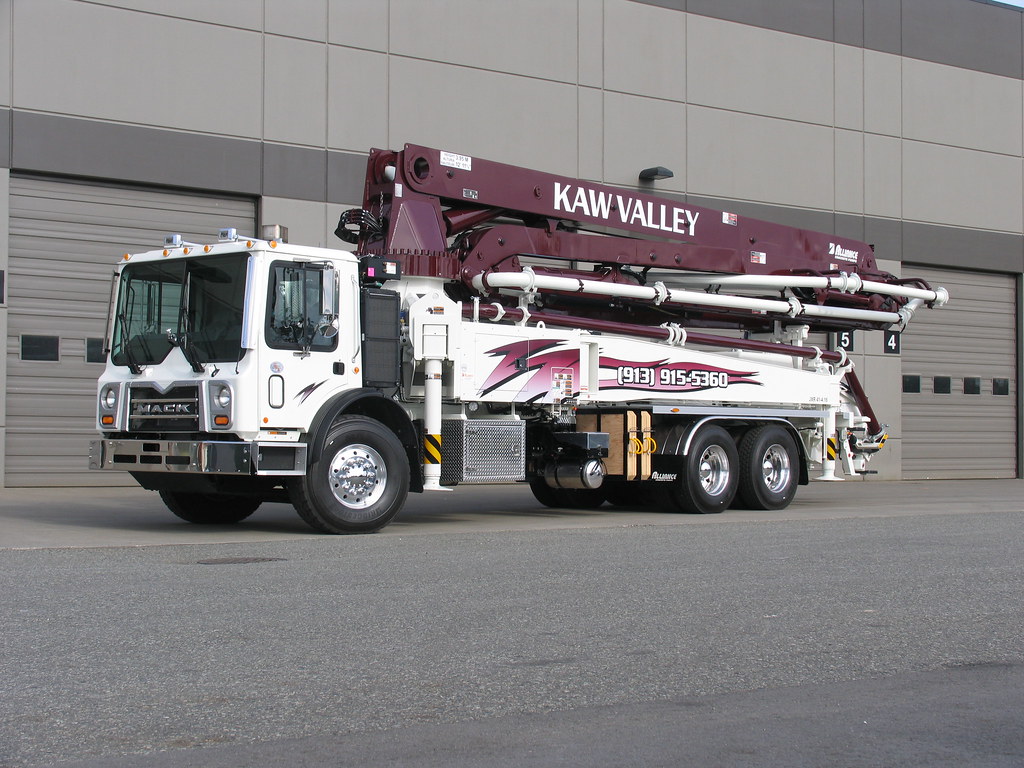

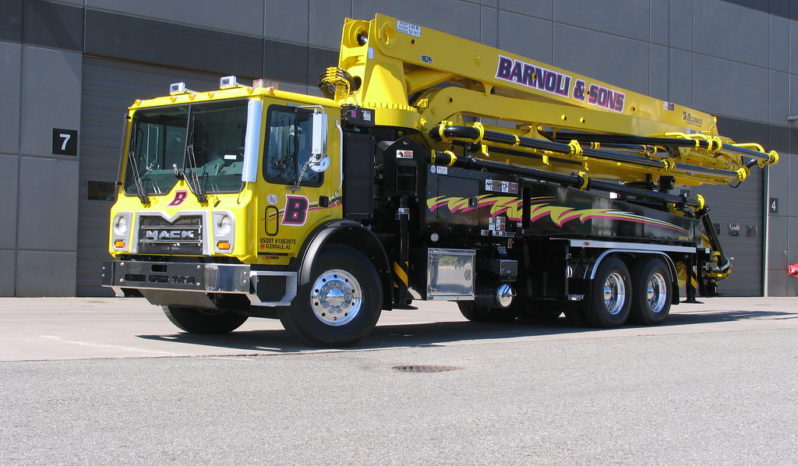

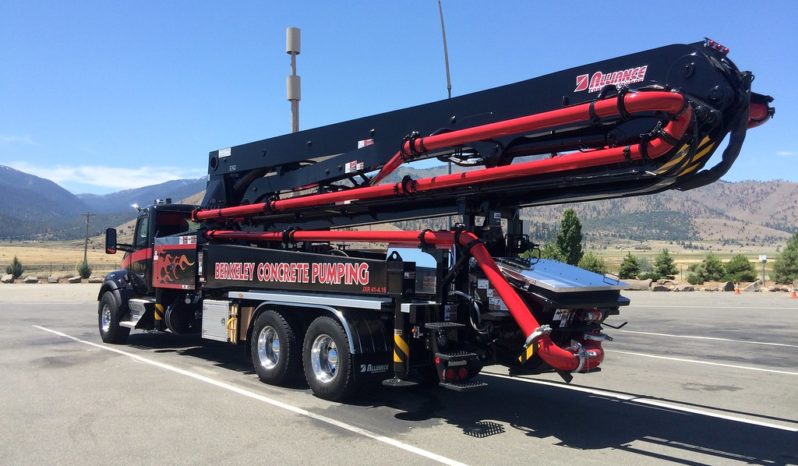

41m ROLL FOLD By Alliance
$0
41m ROLL FOLD By Alliance
Concrete Pump Details
Boom Specifications
Manufacturer
Alliance
Condition
New
Sections
4 Sections
Vertical Reach
40.5 m (132'10")
Reach From Front
33.5 m (109'11")
Unfolding Height
9.8 m (32'2")
Outrigger
Hydraulic
Front Spread
6.7 m (22')
Rear Spread
7.6 m (24'11”)
Pump Specifications
Concrete Cylinder Diameter
230 mm (9")
Cylinder Stroke Length
2,100mm (83")
Number of Strokes/Min
31
Main Oil Pump
Rexroth Hydromatic
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
General Specifications
Water Tank
800 L (211 G)
Seller Note
STANDARD FEATURES
In 2013, we’ve redesigned our 41 Meter Roll-Fold. Simplicity and convenience has just got better. If you could only have one pump in your fleet, this is it.
 |
Hydraulic System with Manual Overrides Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode. |
 |
Split Panel Electrical System The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time. |
 |
Optioned to Suit Your Needs We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do. |
