40M Z FOLD by Concord
$0
40M Z FOLD by Concord
Concrete Pump Details
Boom Specifications
Manufacturer
Concord
Condition
New
Sections
4 Sections
Vertical Reach
130′ 39.7 m
Reach From Front
N/A
Unfolding Height
29′ 10″
Outrigger
N/A
Front Spread
N/A
Rear Spread
N/A
Pump Specifications
Concrete Cylinder Diameter
N/A
Cylinder Stroke Length
N/A
Number of Strokes/Min
30
Main Oil Pump
N/A
Hydraulic System Pressure
N/A
Lube System (Hopper)
N/A
General Specifications
Water Tank
N/A
Seller Note
SNAP SHOT

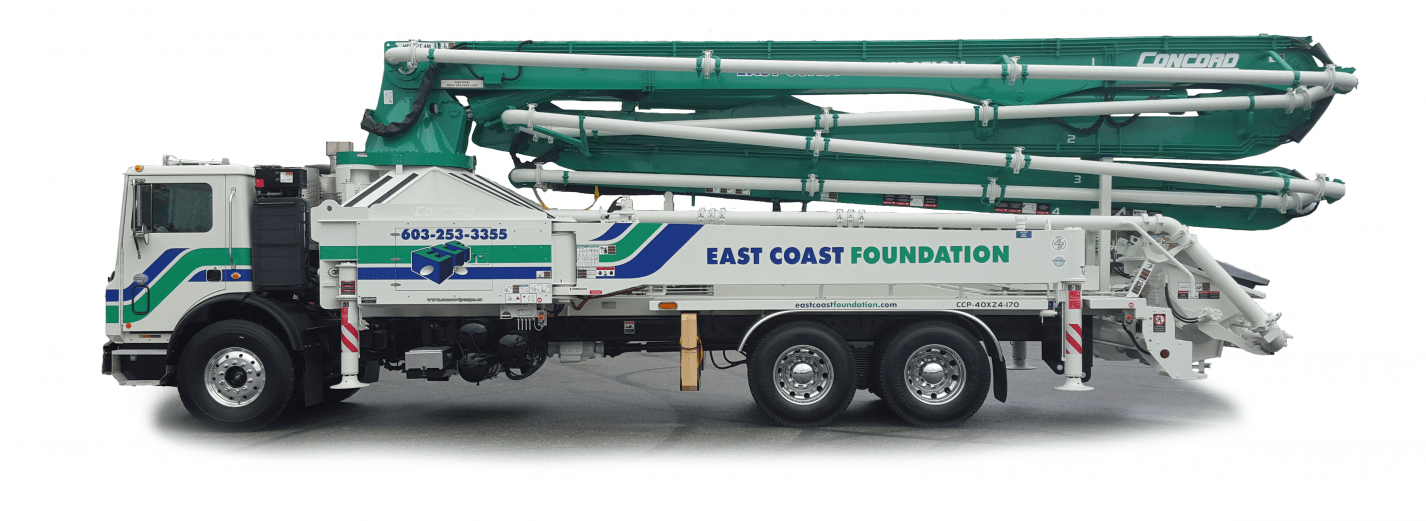

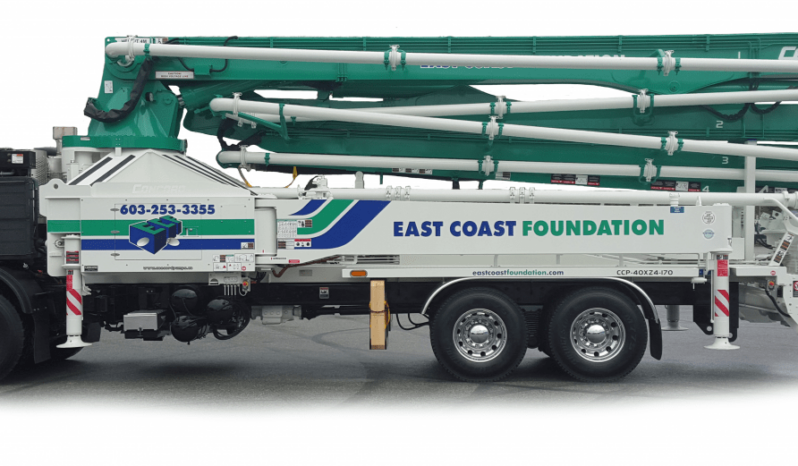

Great for maneuvering in and out of tight job sites with the convenience of X-Style outriggers 4 section Z fold.
PIPE SYSTEM
Single Wall System
BOOM LENGTH
40
(meters)
BOOM SECTIONS
4
(sections)
MAX OUTPUT
170
(m³/hour)
DELIVERY LINE
5″
(Diameter)
STANDARD FEATURES
- Heat treated single wall pipe and elbows
- HBC or Autec wireless remote
- Boom light kit
- Side panel working lights
- Outrigger pads (4)
- 4 meters (13ft) end hose
- Magnetic working light
- System blow out cap (water)
- Hopper vibrator
- Automatic greasing system (hopper only)
- Safety sling
- Tool box w/basic repair items and testing gauge
- Spare hydraulic hose kit
- Spare sensing valves
- Spare pumping relays and fuses
- 2 clamps (125mm/ 5”)
- Grundfos water pump
- 2 clean out sponges
- Clean up scraper
- 25ft water hose with nozzle
- 2 user/parts manuals
SPECIFICATIONS
The following are specifications for pump, boom, and outrigger.
PUMP SPECIFICATIONS
MAXIMUM OUTPUT
- 224 yd³/hr
- 170 m³/hr
DELIVERY CYLINDER (HARD CHROMED)
- 9″ x 83″
- 230 mm x 2100 mm
CONCRETE PRESSURE (ROD SIDE)
- 1043 Psi
- 72 Bar
CONCRETE PRESSURE (HEAD SIDE)
- 1600 Psi
- 114 Bar
HOPPER CAPACITY
- 21 ft³
- 600 litres
STROKES/MINUTE
- 30
S-TUBE
- 9″ x 7″
- 230 mm x 180 mm
HYDRAULIC PUMP
- Rexroth A11VLO260
CYCLING SYSTEM
- All hydraulic sensing with manual overrides
MAXIMUM AGGREGATE SIZE
- 2.5″
- 65 mm
BOOM SPECIFICATIONS
SECTION Z-BOOM (VERTICAL REACH)
- 130′
- 39.7 m
MAXIMUM HORIZONTAL REACH
- 117′ 5″
- 35.8 m
REACH FROM FRONT OF TRUCK
- 108′ 6″
- 33.1 m
UNFOLDING HEIGHT
- 29′ 10″
- 9.1 m
ROTATION
- 370 degrees
SECTION ARTICULATION
- 92/180/240/245 (757 total)
DELIVERY LINE
- 5″
- 125 mm
1ST SECTION
- 31′ 2″
- 9.5 m
2ND SECTION
- 28′ 3″
- 8.6 m
3RD SECTION
- 28′ 7″
- 8.7 m
4TH SECTION
- 29′ 2″
- 8.9 m
OUTRIGGER SPECIFICATIONS
ALL HYDRAULIC
- yes
FRONT SPREAD
- 20′ 8″
- 6.3 m
REAR SPREAD
- 26′ 2″
- 8 m
MAXIMUM OUTRIGGER WEIGHT
- 23,000 kg
- 50,706 lbs
