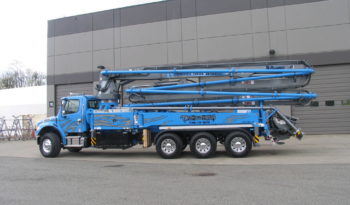

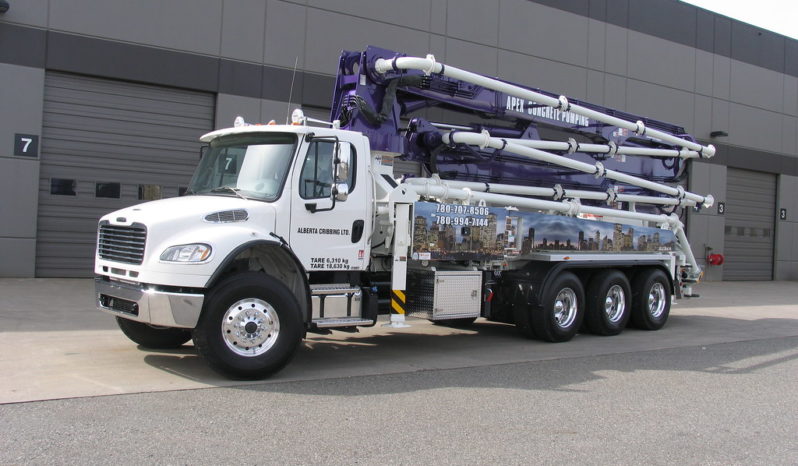

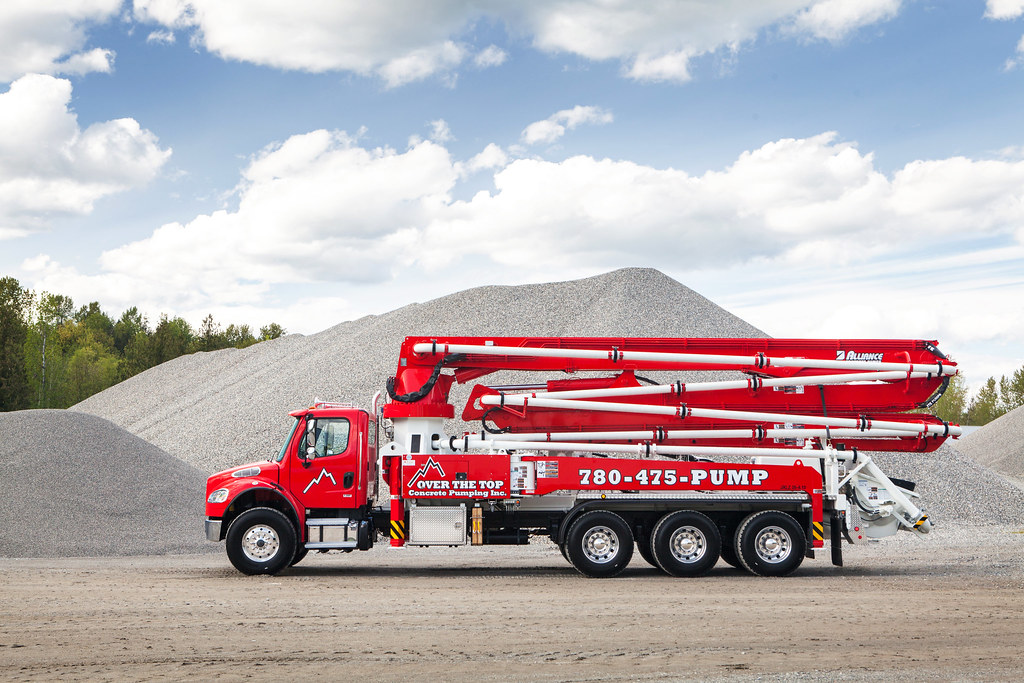

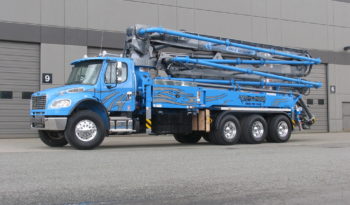

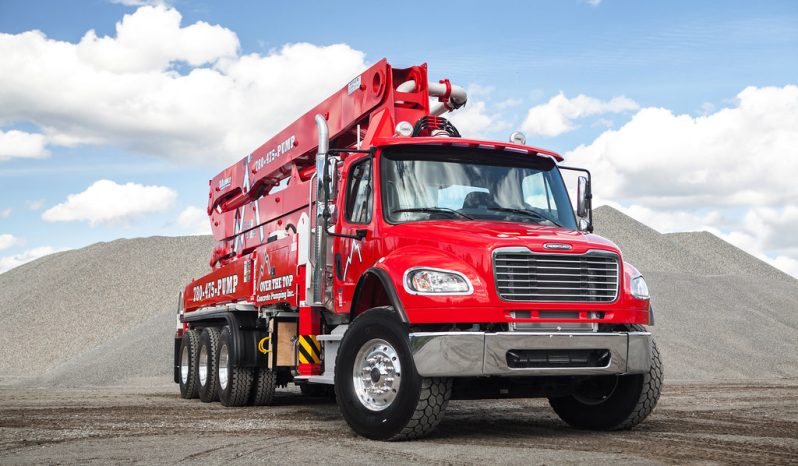

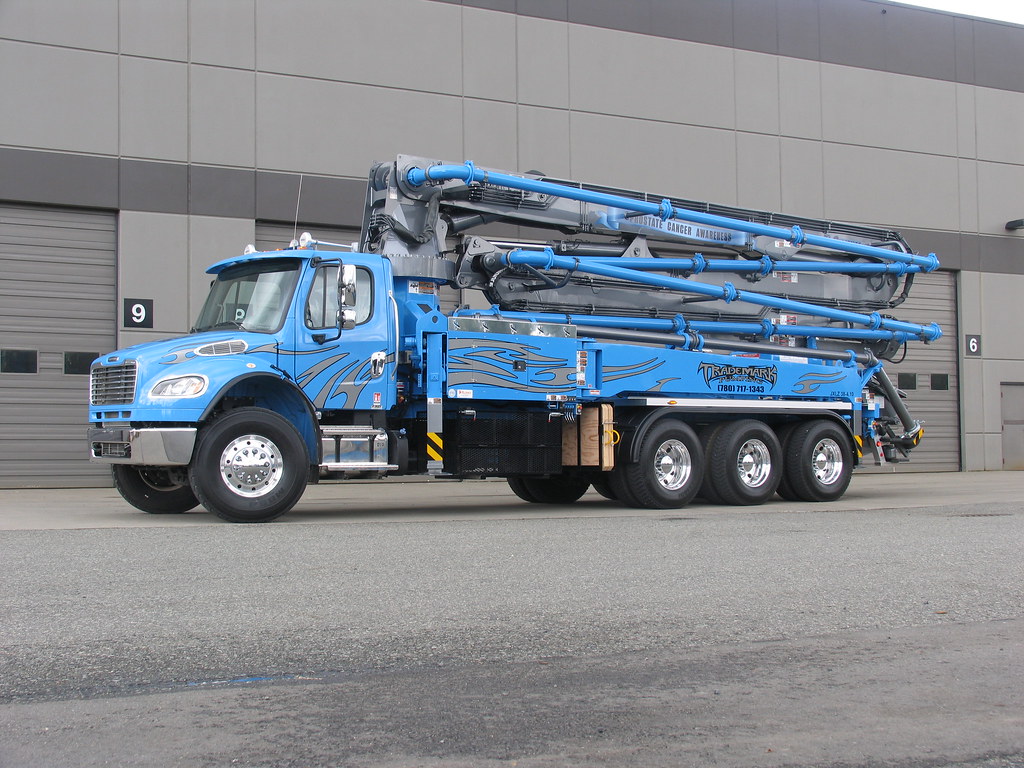

38M Z 75% ROAD BAN by Alliance


38M Z 75% ROAD BAN by Alliance

Concrete Pump Details

Boom Specifications
4 Sections
Vertical Reach
37.1m (121'9")
Reach From Front
30.3m (99'5")
Unfolding Height
8.9m (29'2")
Front Spread
6.3m (20'8")
Rear Spread
7.0m (23')
Pump Specifications
Concrete Cylinder Diameter
200mm (8")
Cylinder Stroke Length
1600mm (63")
Number of Strokes/Min
Main Oil Pump
Kawasaki 180 cc
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
General Specifications
Water Tank
800 L (211 G)
Seller Note


38 Meter Z-Fold – 75% Road Ban

With the introduction of a robust yet lightweight pedestal and streamlined side panels and outriggers, this modern design has allowed for less overall weight – making this machine legal in more places. What did not change on this redesigned concrete pump was the simplicity, reliability and performance that has become synonymous with the Alliance Concrete Pumps name.


Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.
Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.
Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.
