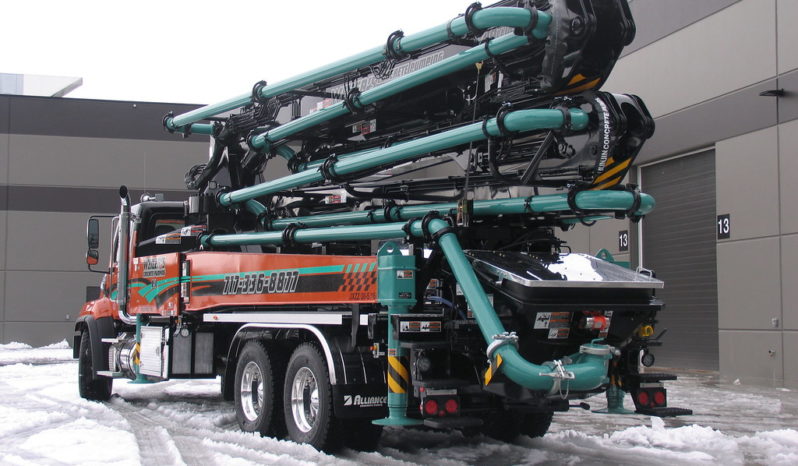

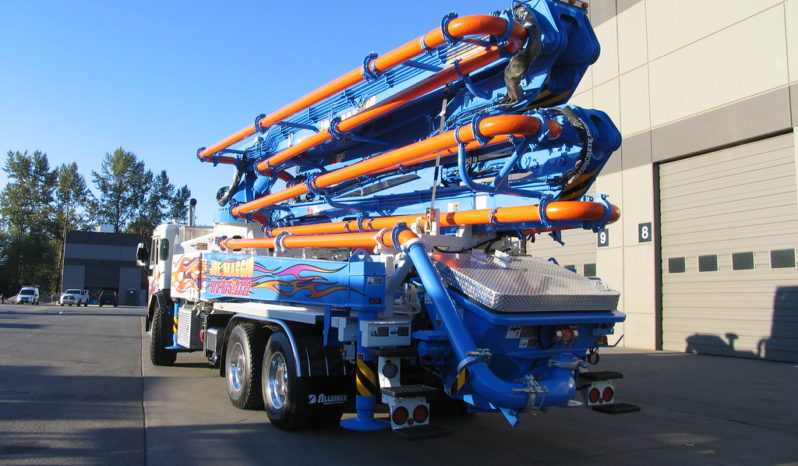

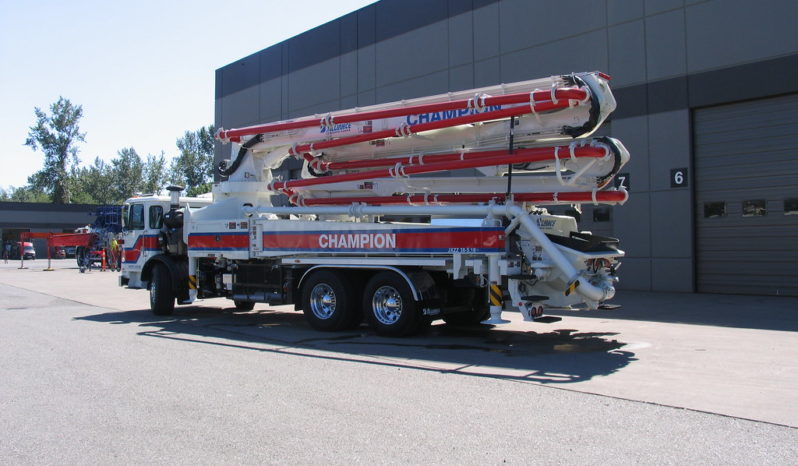

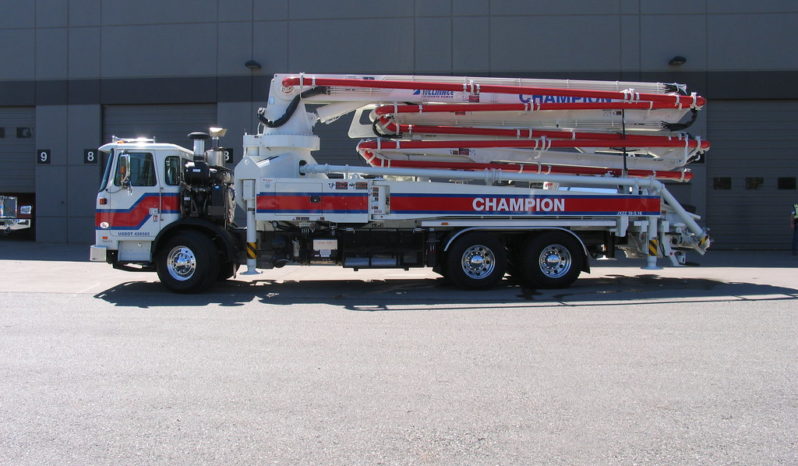

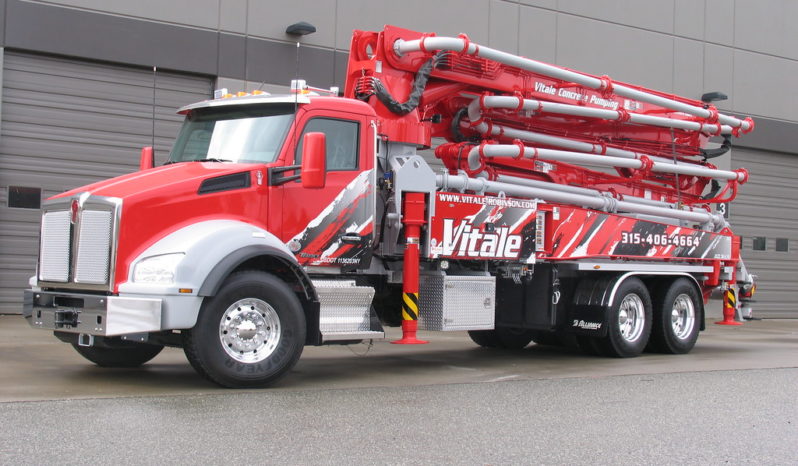

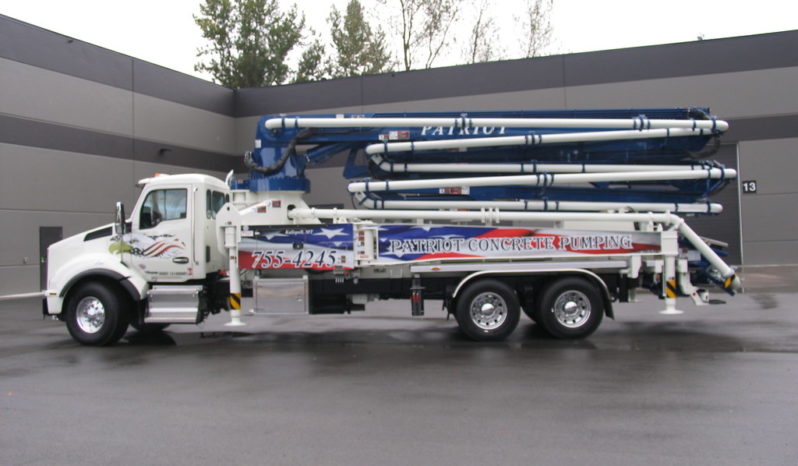

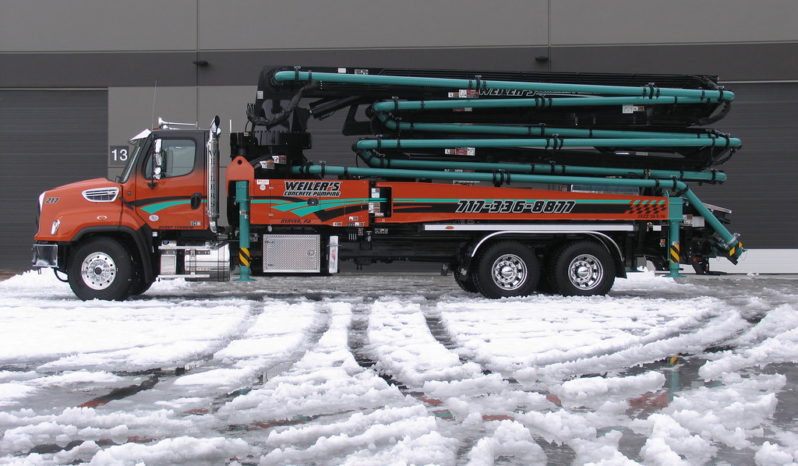

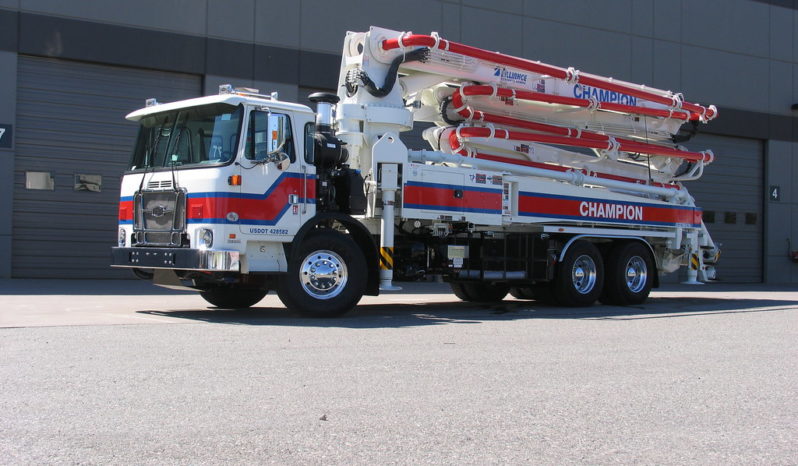

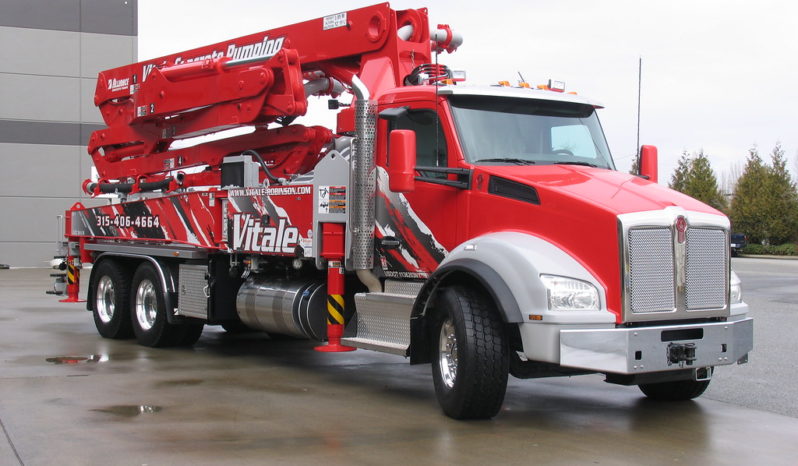

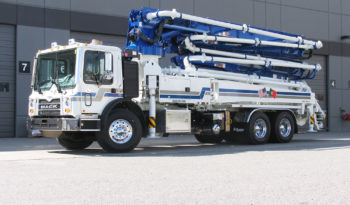

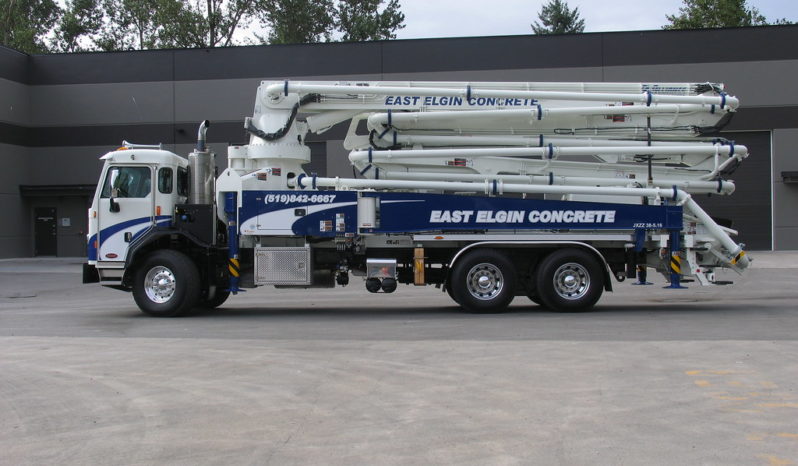

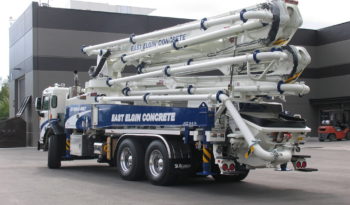

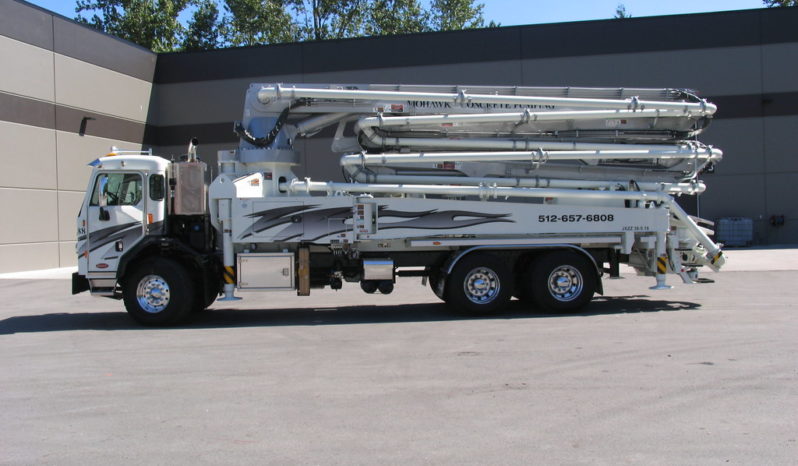

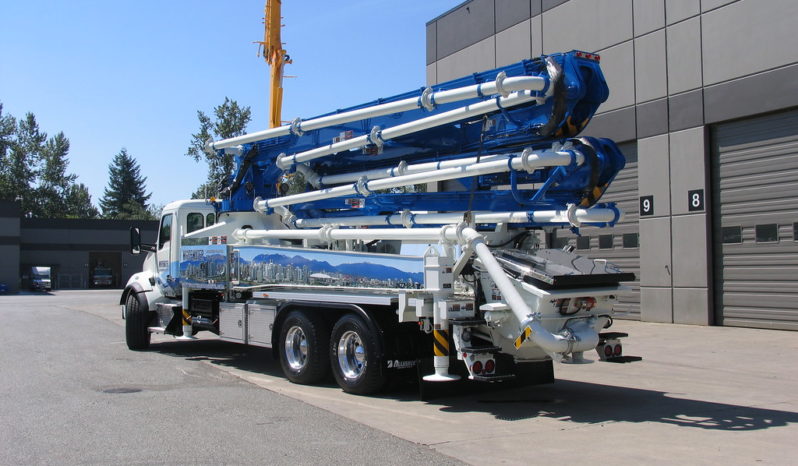

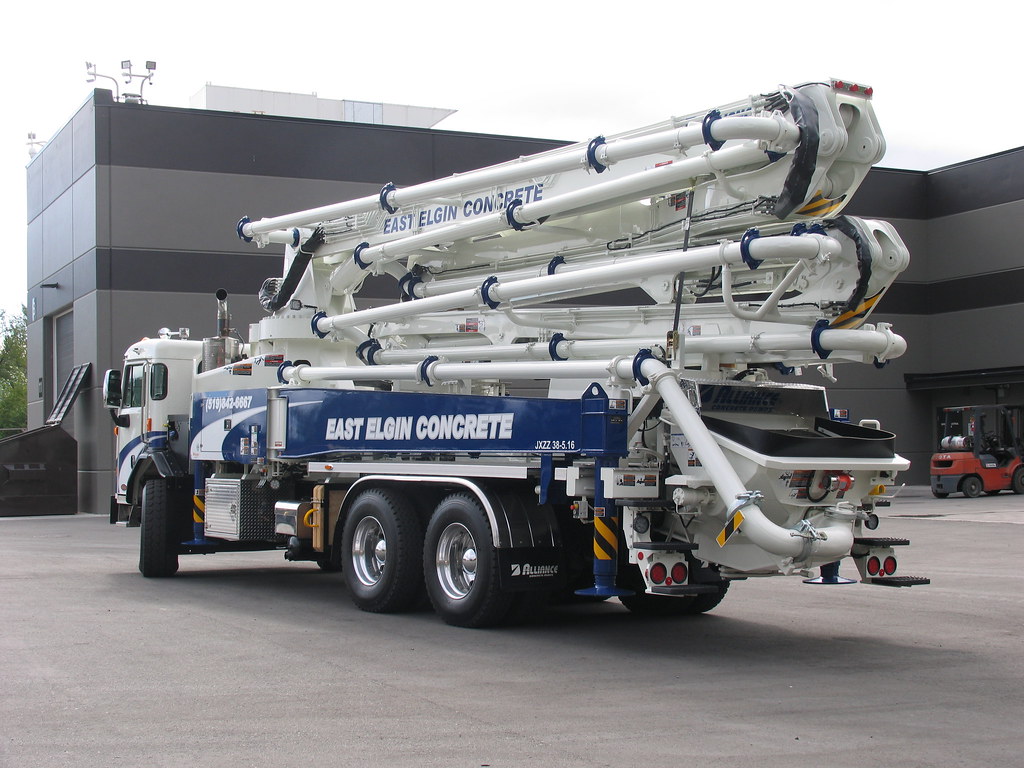

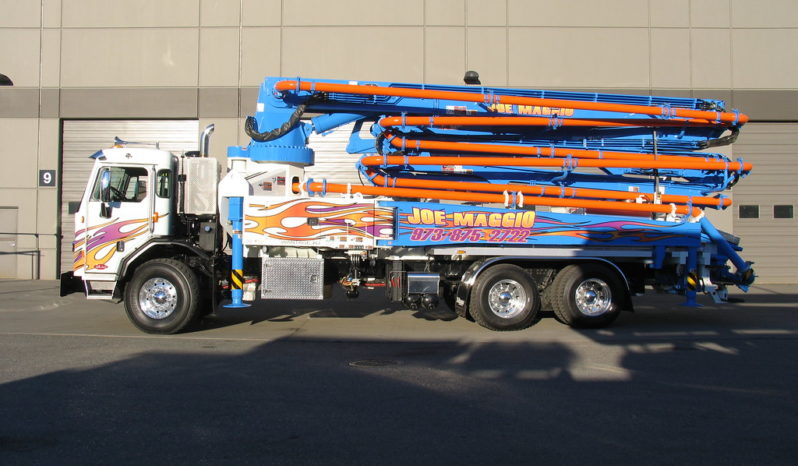

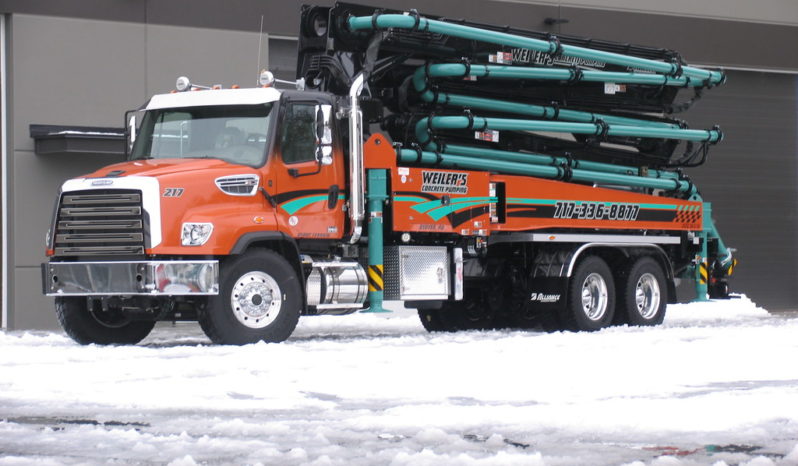

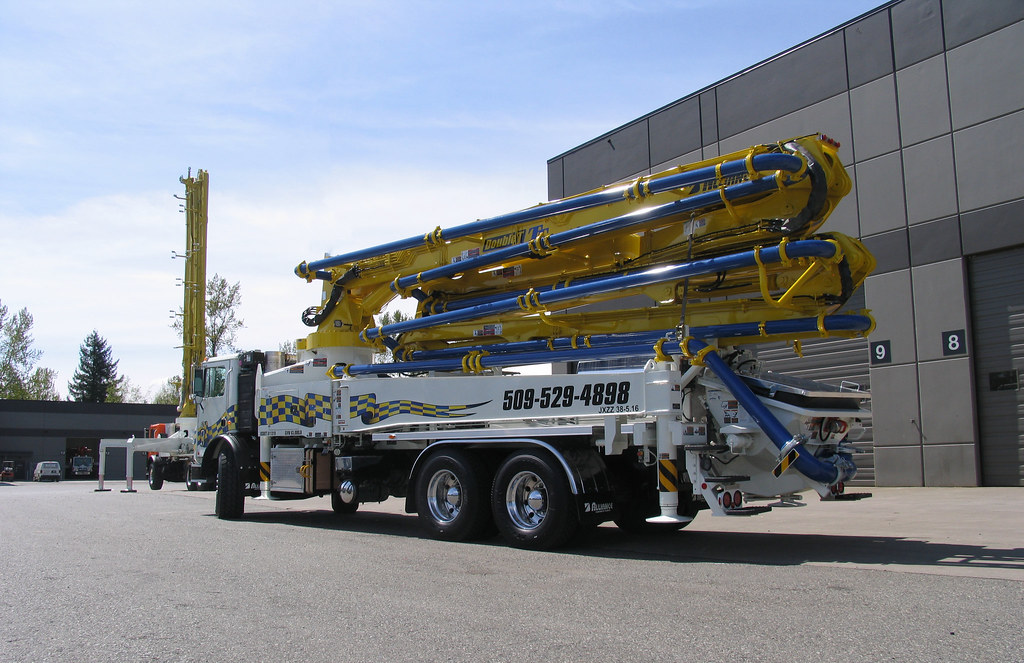

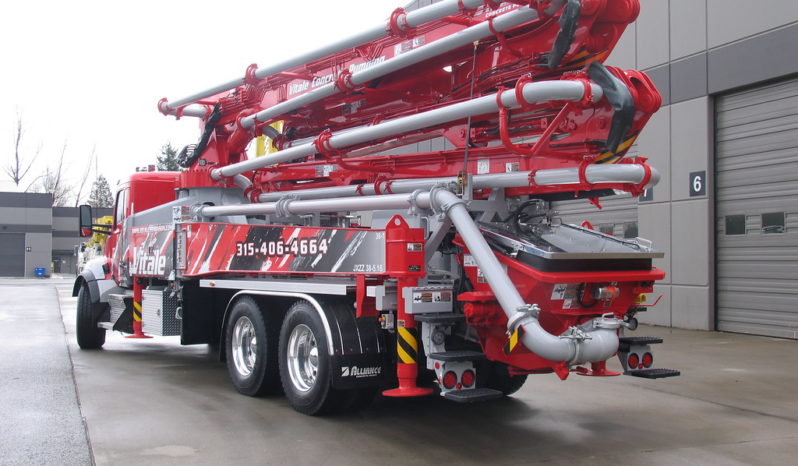

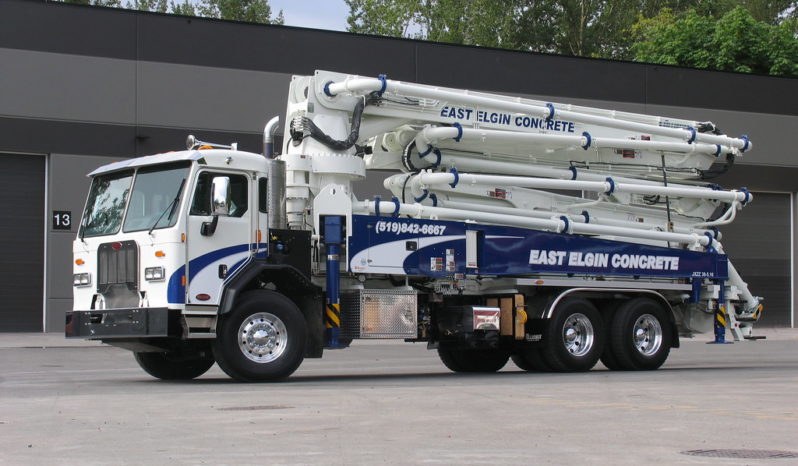

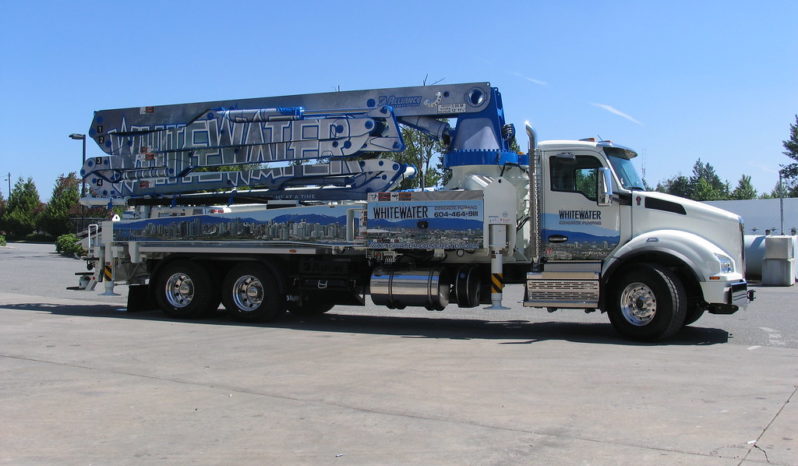

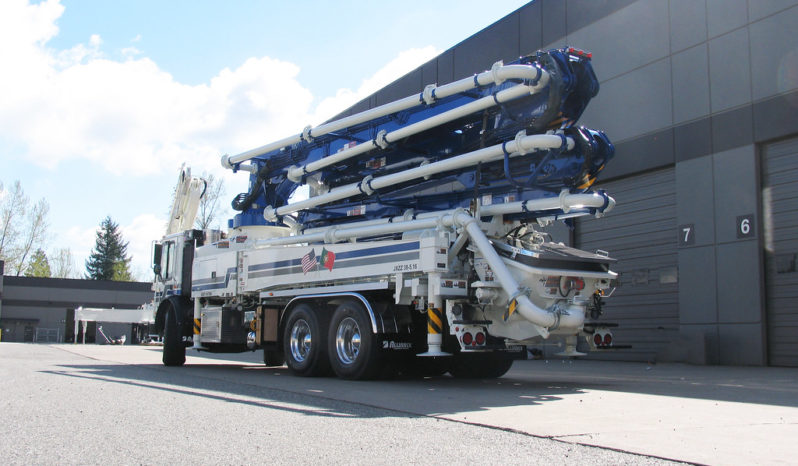

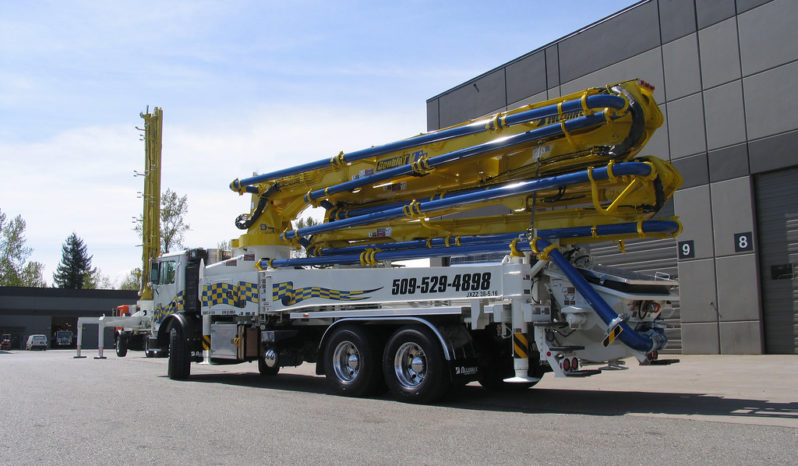

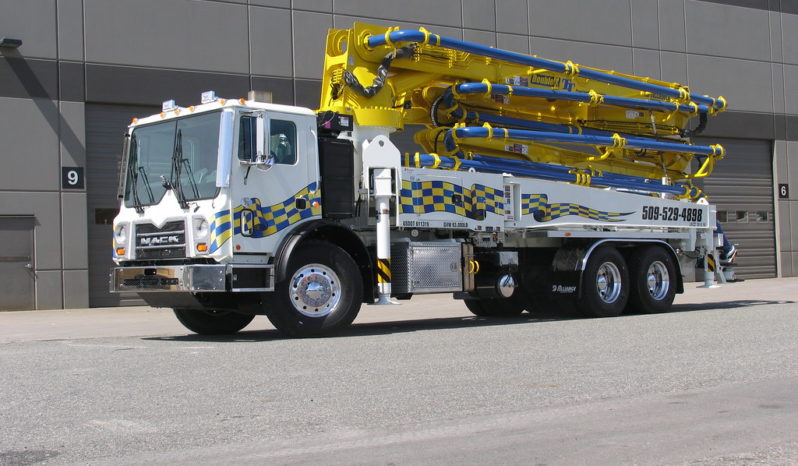

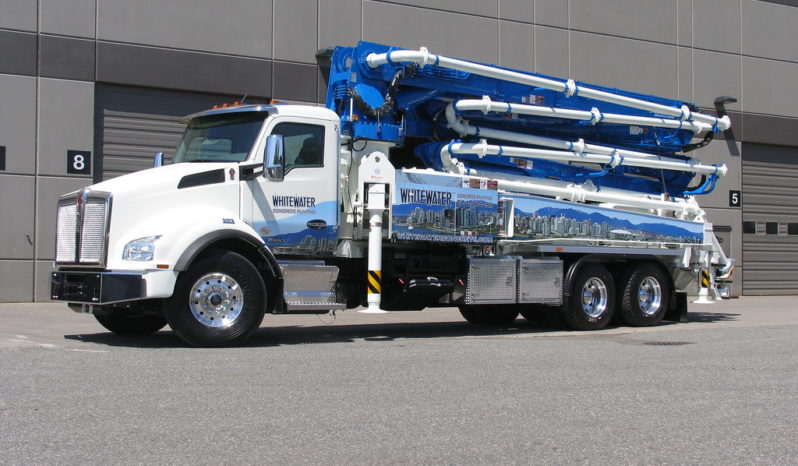

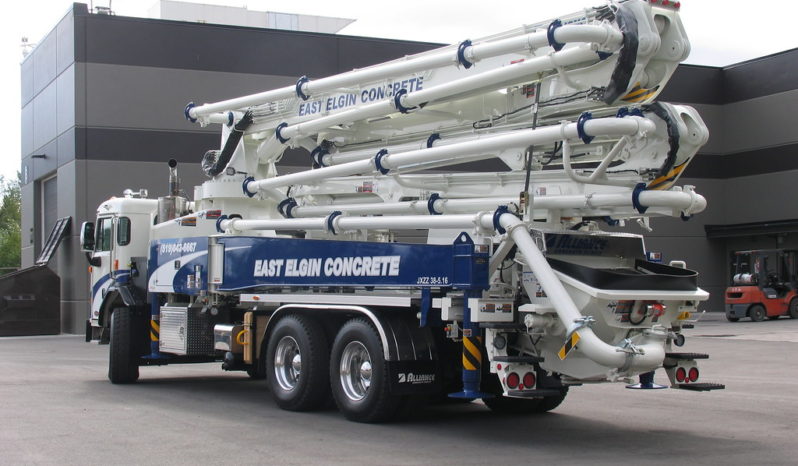

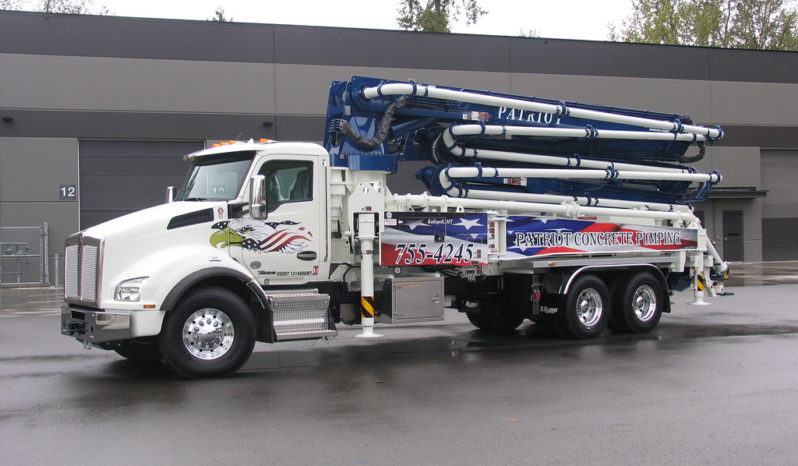

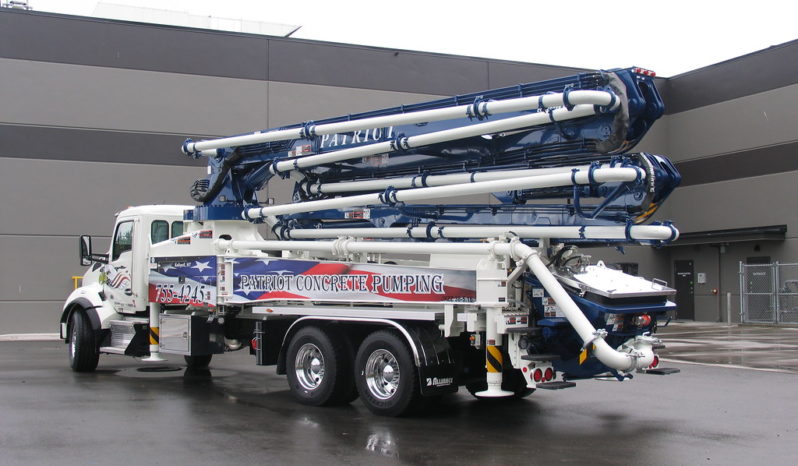

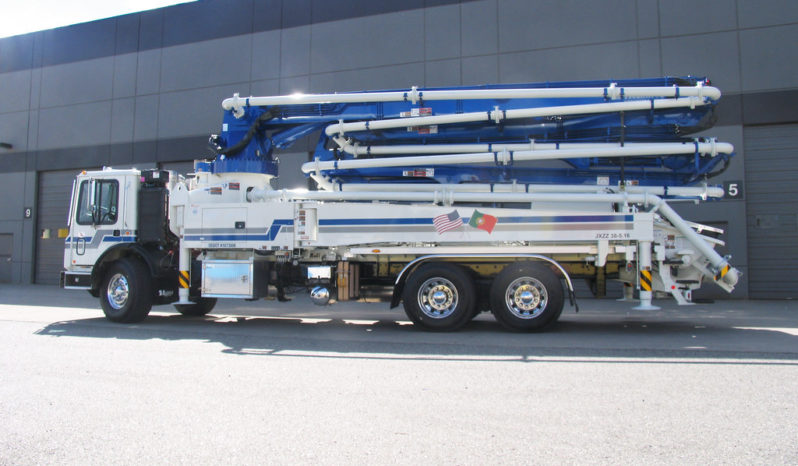

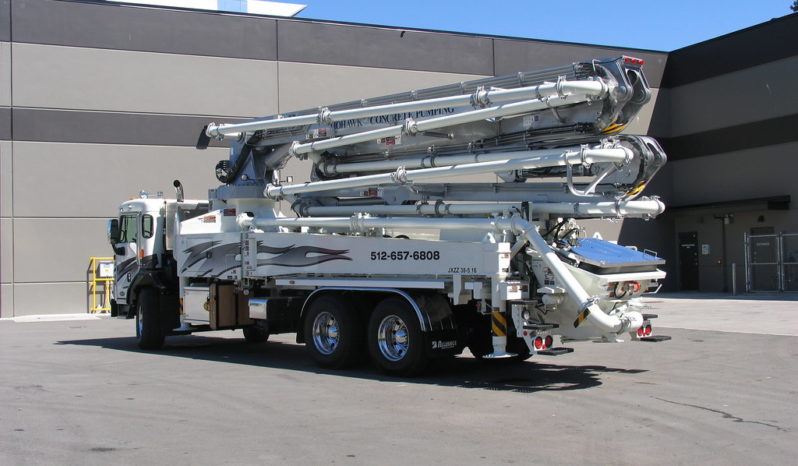

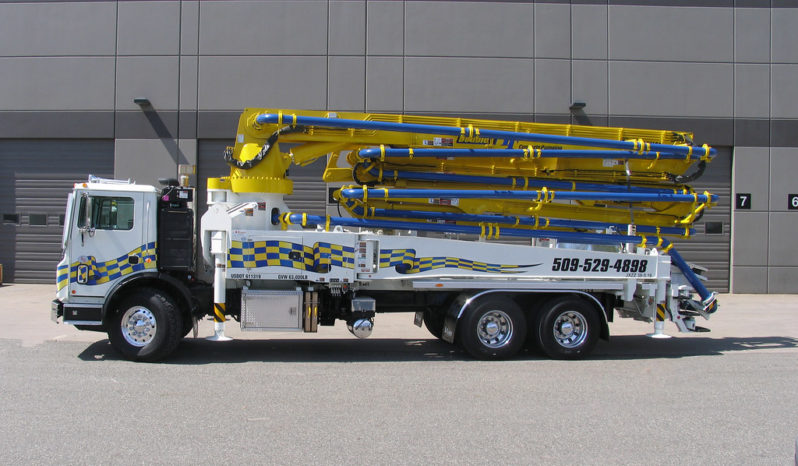

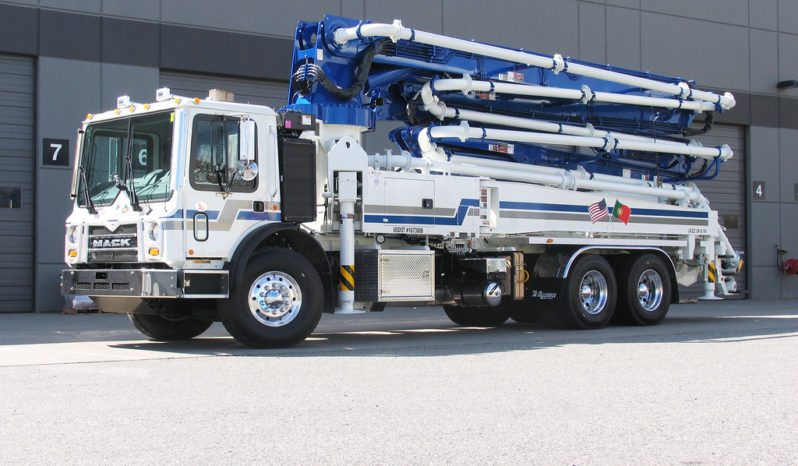

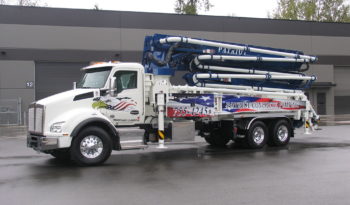

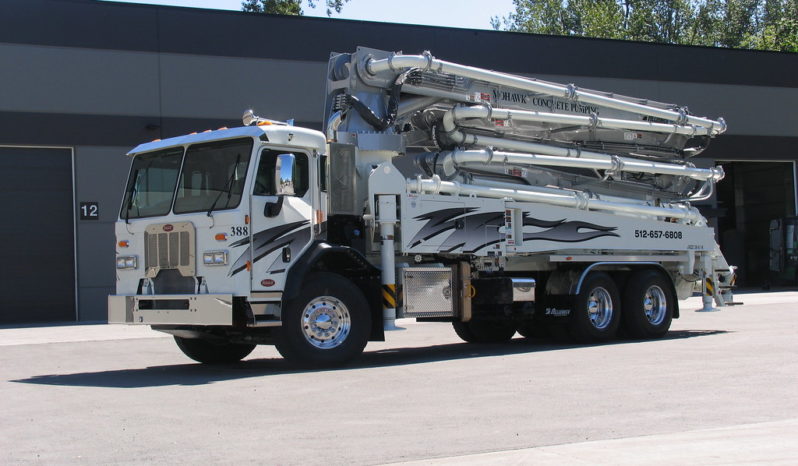

38M 5 SECTION By Alliance


38M 5 SECTION By Alliance

Concrete Pump Details

Boom Specifications
5 sections
Vertical Reach
37.5 m (123')
Reach From Front
30.5 m (100'1")
Unfolding Height
7.3 m (23'11")
Front Spread
6.0 m (19'8")
Rear Spread
7.8 m (25'7")
Pump Specifications
Concrete Cylinder Diameter
230 mm (9")
Cylinder Stroke Length
2100 mm (83")
Number of Strokes/Min
Main Oil Pump
Rexroth Hydromatic
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
General Specifications
Water Tank
800 L (211 G)
Seller Note


Our 38 Meter 5 Section Boom Pump came new to the Alliance 2014 lineup – and continues to have strong sales – by popular demand!


Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.
Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.
Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.
