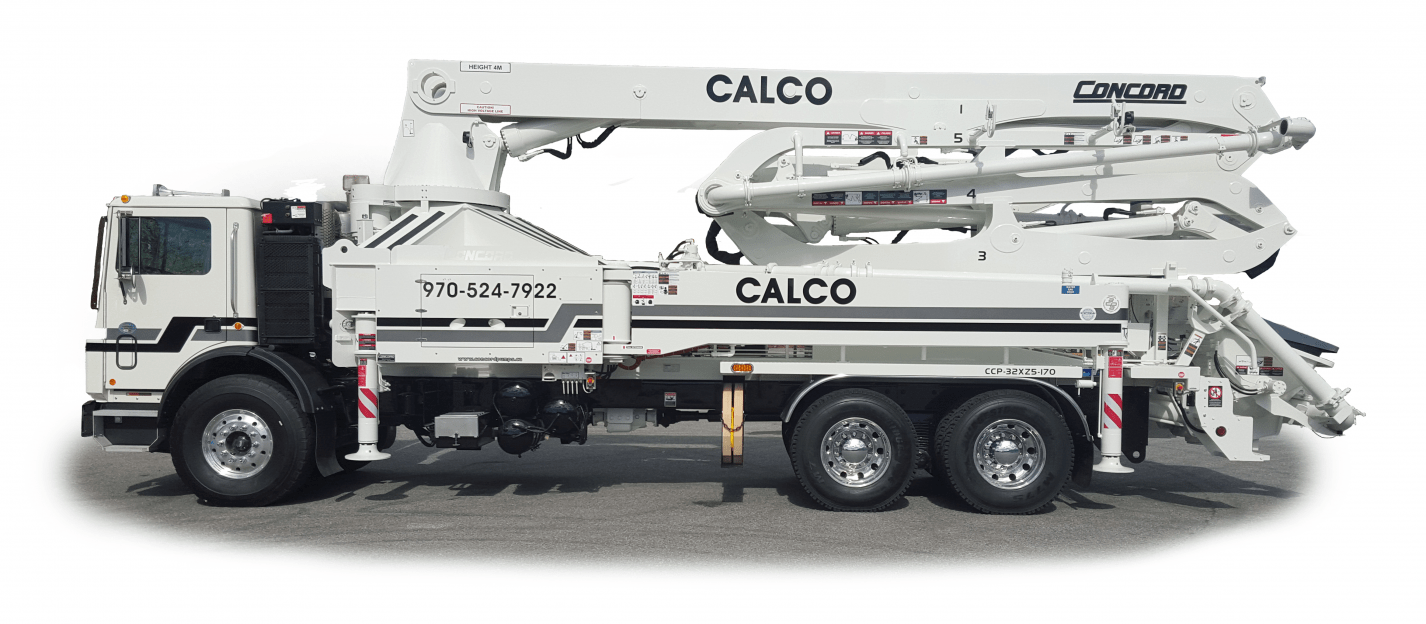

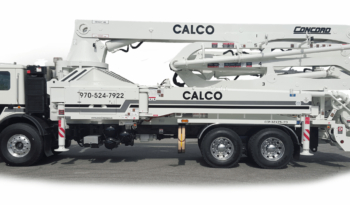

32m Z5 FOLD by Concord

$0

32m Z5 FOLD by Concord

Concrete Pump Details

Boom Specifications
Manufacturer
Concord
Condition
New
Sections
5 sections
Vertical Reach
105′ 32 m
Reach From Front
N/A
Unfolding Height
19′
Outrigger
N/A
Front Spread
N/A
Rear Spread
N/A
Pump Specifications
Concrete Cylinder Diameter
9″ x 83″ 230 mm x 2100 mm
Cylinder Stroke Length
N/A
Number of Strokes/Min
30
Main Oil Pump
N/A
Hydraulic System Pressure
N/A
Lube System (Hopper)
N/A
General Specifications
Water Tank
N/A
Seller Note

SNAP SHOT

With one of the lowest unfolding heights in the industry, the 32 meter multi z-boom is perfect for inside jobs.

PIPE SYSTEM

Single Wall System

BOOM LENGTH

32

(meters)

BOOM SECTIONS

5

(sections)

MAX OUTPUT

170

(m³/hour)

DELIVERY LINE

5″

(Diameter)

STANDARD FEATURES

  • Heat treated single wall pipe and elbows
  • HBC or Autec wireless remote
  • Boom light kit
  • Side panel working lights
  • Outrigger pads (4)
  • 4 meters (13ft) end hose
  • Magnetic working light
  • System blow out cap (water)
  • Hopper vibrator
  • Automatic greasing system (hopper only)
  • Safety sling
  • Tool box w/basic repair items and testing gauge
  • Spare hydraulic hose kit
  • Spare sensing valves
  • Spare pumping relays and fuses
  • 2 clamps (125mm/ 5”)
  • Grundfos water pump
  • 2 clean out sponges
  • Clean up scraper
  • 25ft water hose with nozzle
  • 2 user/parts manuals

SPECIFICATIONS

The following are specifications for pump, boom, and outrigger.

PUMP SPECIFICATIONS

MAXIMUM OUTPUT

  • 224 yd³/hr
  • 170 m³/hr

DELIVERY CYLINDER (HARD CHROMED)

  • 9″ x 83″
  • 230 mm x 2100 mm

CONCRETE PRESSURE (ROD SIDE)

  • 1043 psi
  • 72 bar

CONCRETE PRESSURE (HEAD SIDE)

  • 1600 psi
  • 114 bar

HOPPER CAPACITY

  • 21 ft³
  • 600 litres

STROKES/MINUTE

  • 30

S-TUBE

  • 9″ x 7″
  • 230 mm x 180 mm

HYDRAULIC PUMP

  • Rexroth A11VLO260

CYCLING SYSTEM

  • All hydraulic sensing with manual overrides

MAXIMUM AGGREGATE SIZE

  • 2.5″
  • 65 mm

BOOM SPECIFICATIONS

5 SECTION MULTI Z-FOLD (VERTICAL REACH)

  • 105′
  • 32 m

MAXIMUM HORIZONTAL REACH

  • 92′ 10″
  • 28.3 m

REACH FROM FRONT OF TRUCK

  • 85′
  • 25.9 m

UNFOLDING HEIGHT

  • 19′
  • 5.8 m

ROTATION

  • 370 degrees

SECTION ARTICULATION

  • 92/180/240/240/240 (992 total)

DELIVERY LINE

  • 5″
  • 125 mm

1ST SECTION

  • 25′ 3″
  • 7.7 m

2ND SECTION

  • 16′ 9″
  • 5.1 m

3RD SECTION

  • 16′ 5″
  • 5 m

4TH SECTION

  • 16′ 5″
  • 5 m

5TH SECTION

  • 16′ 1″
  • 4.9 m

OUTRIGGER SPECIFICATIONS

ALL HYDRAULIC

  • yes

FRONT SPREAD

  • 20′ 8″
  • 6.3 m

REAR SPREAD

  • 21′
  • 6.4 m

MAXIMUM OUTRIGGER WEIGHT

  • 20,500 kg
  • 45,195 lbs
