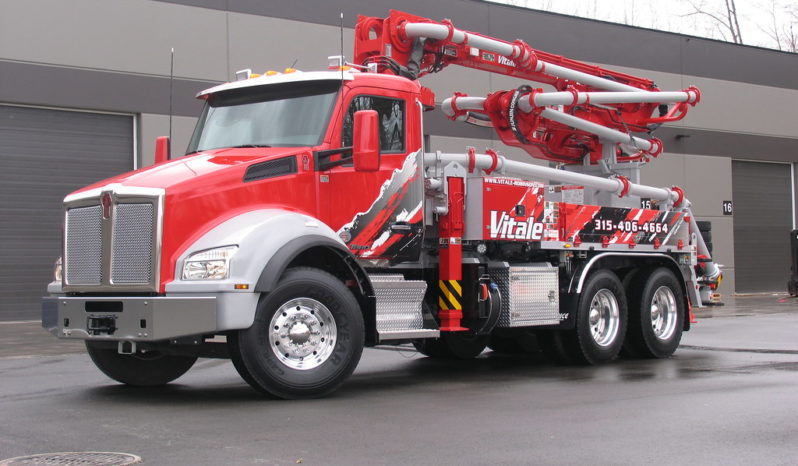

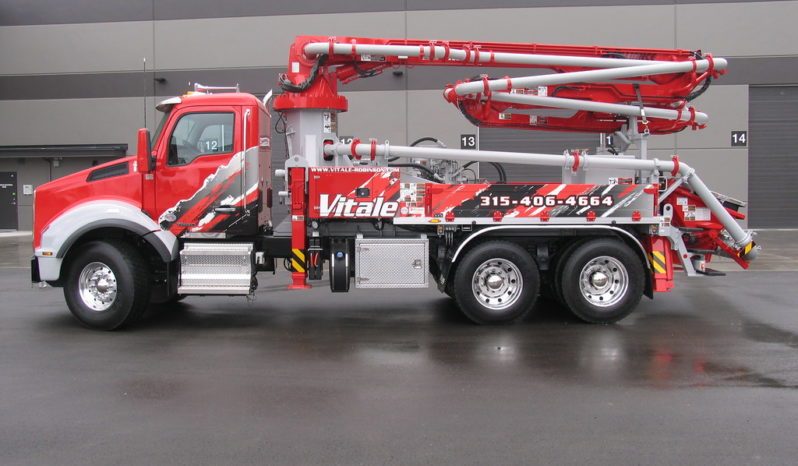

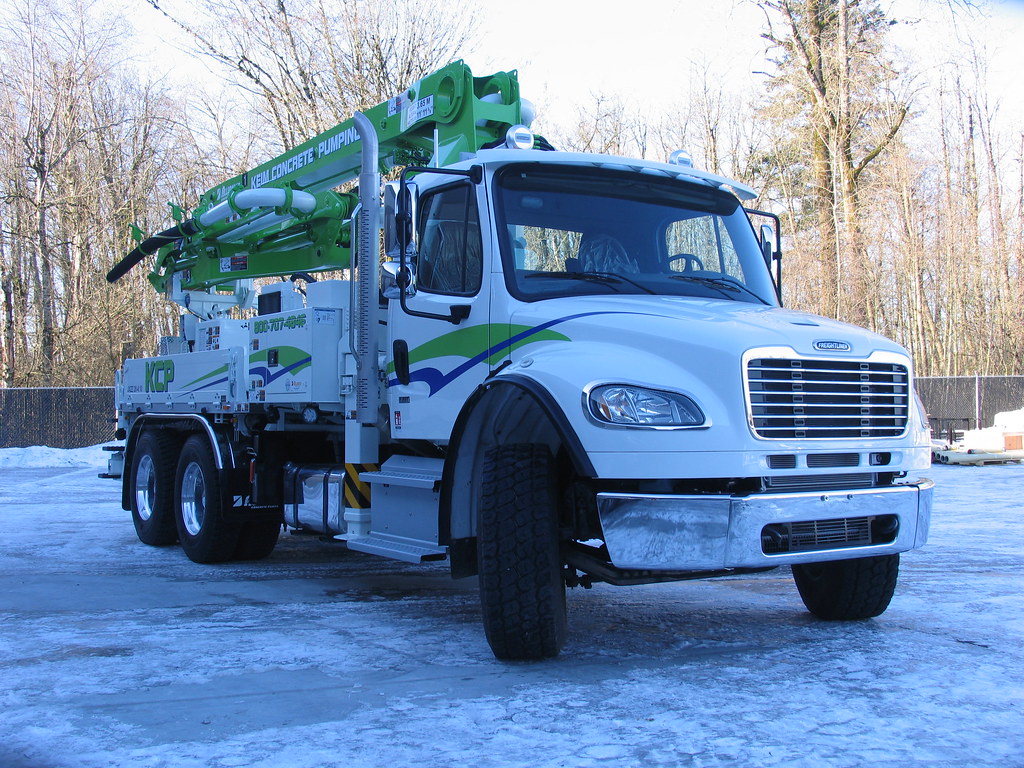

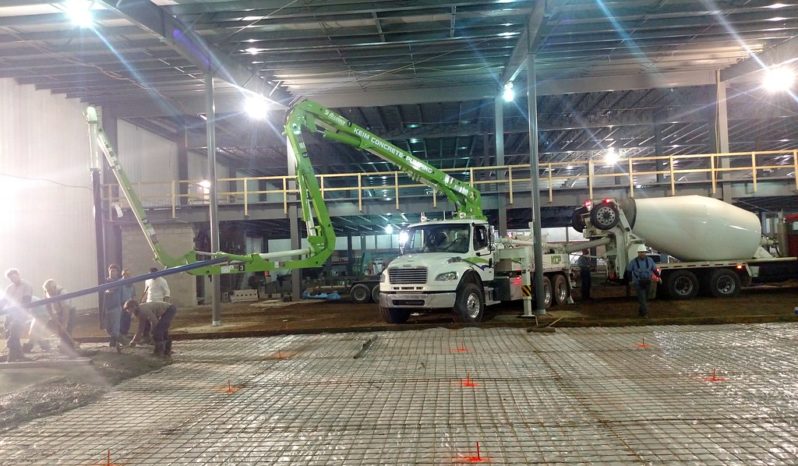

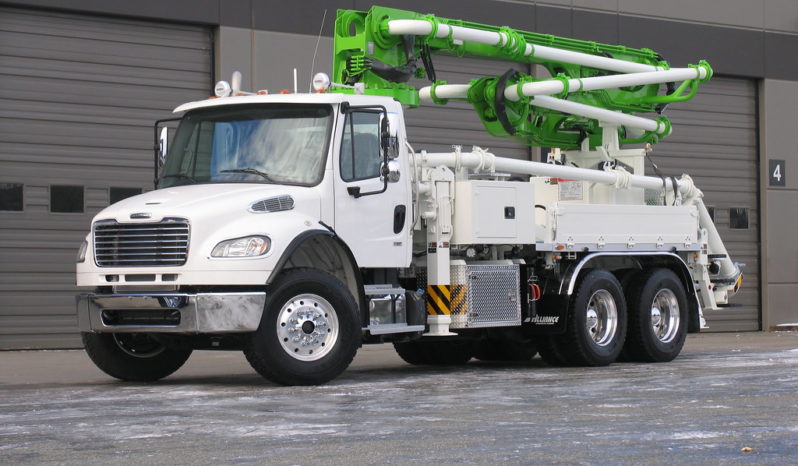

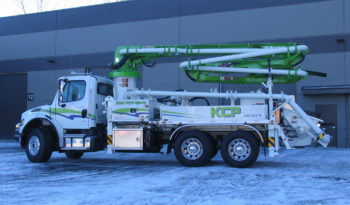

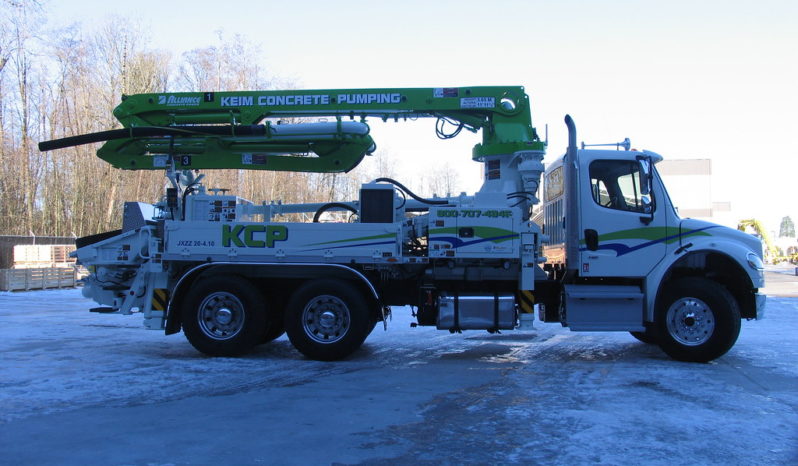

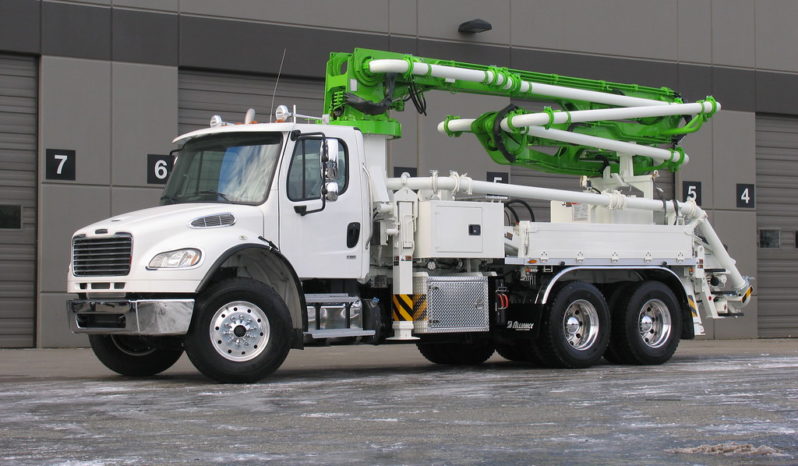

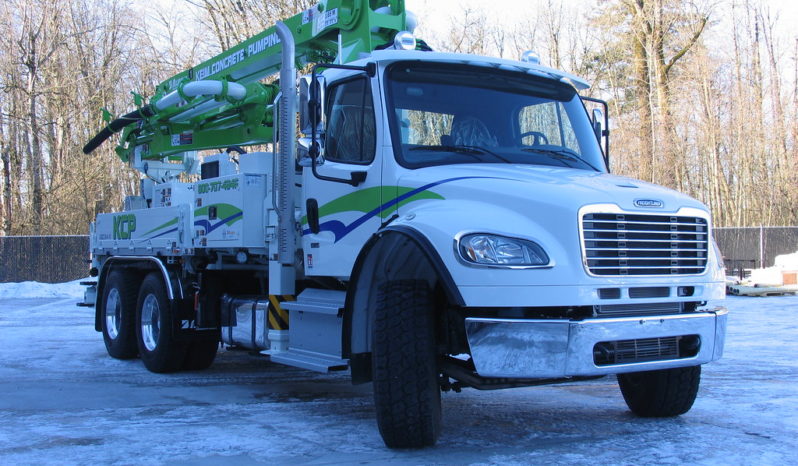

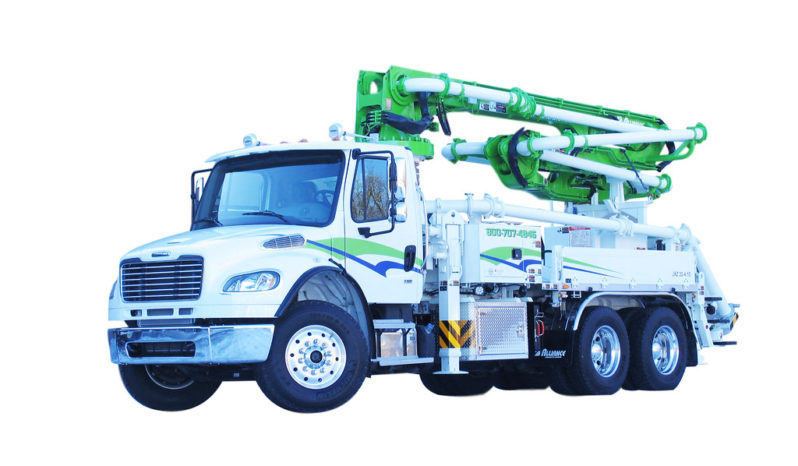

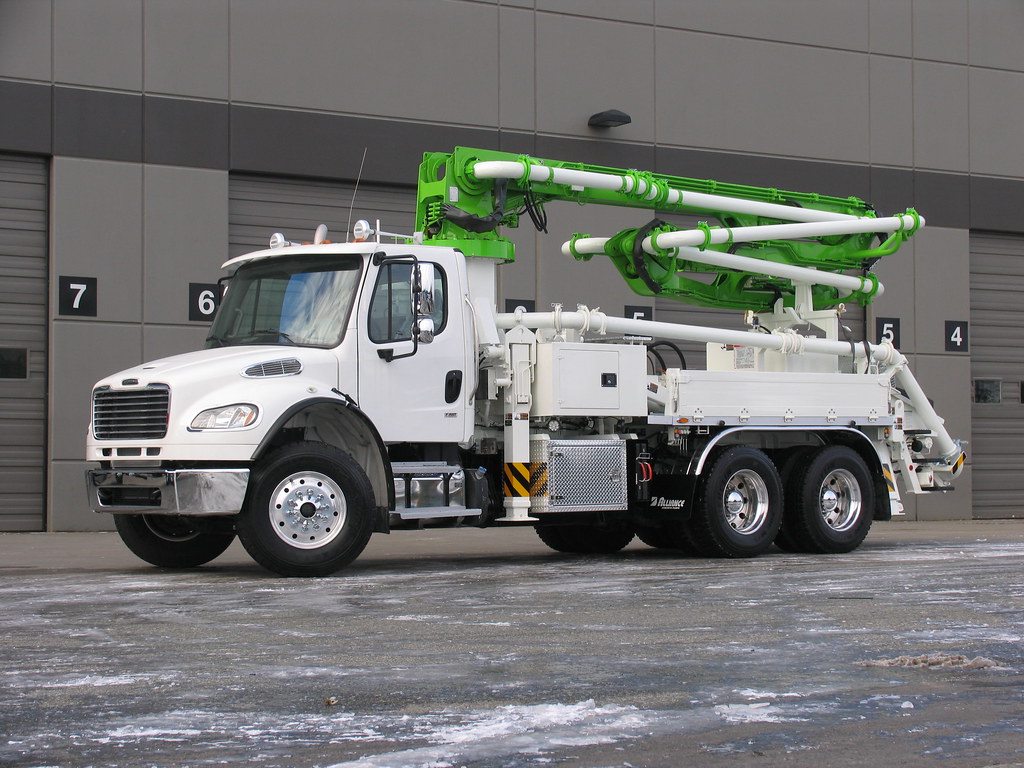

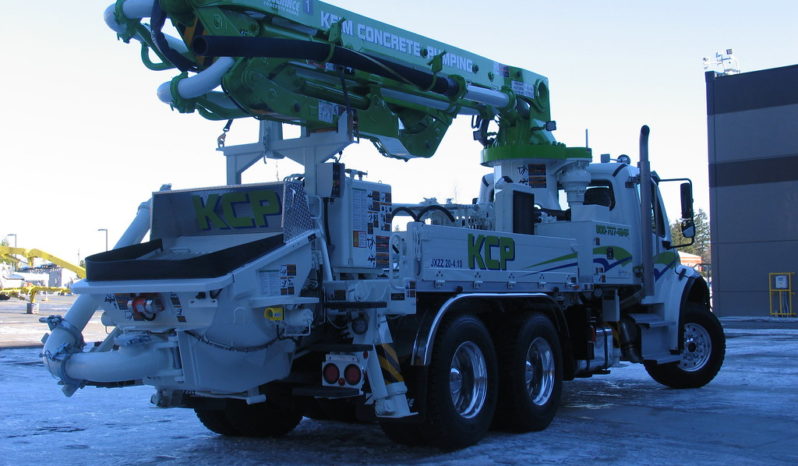

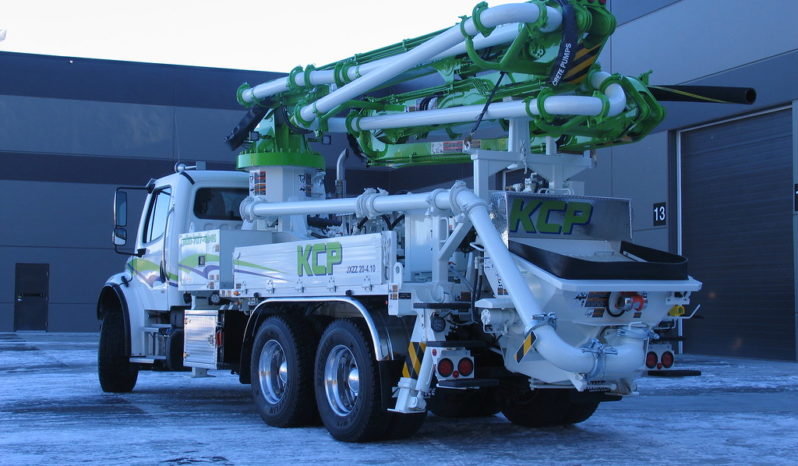

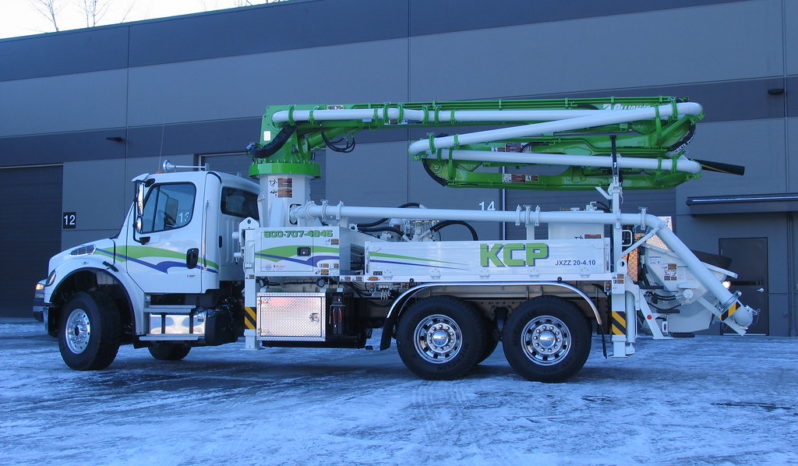

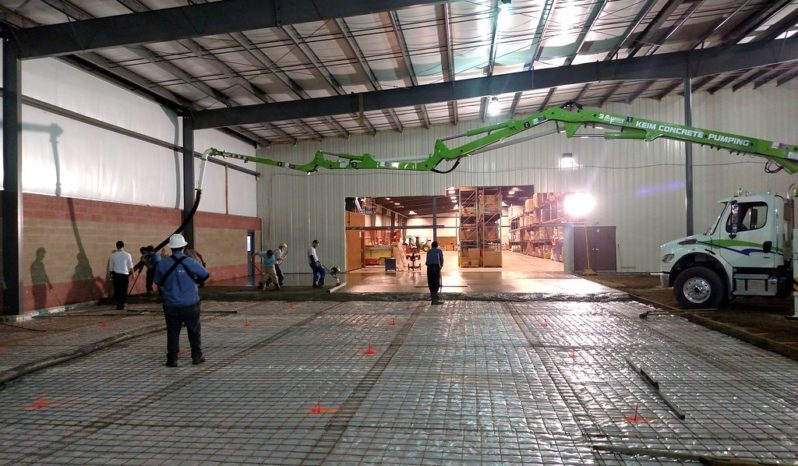

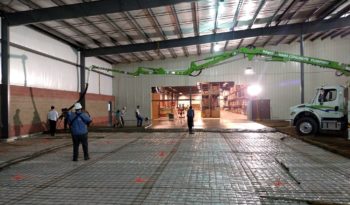

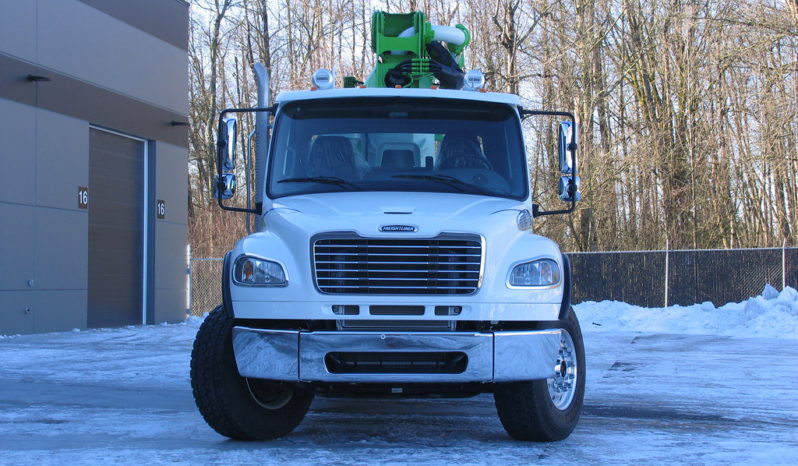

20M Z-FOLD By Alliance

$0

20M Z-FOLD By Alliance

ADDED: November 07, 2019

Concrete Pump Details

Boom Specifications
Condition
New Pump
Make
Alliance
Outrigger
N/A
Sections
4 Sections
Vertical Reach
20.0m (65'7")
Reach From Front
N/A
Unfolding Height
N/A
Front Spread
3.68m (12'1")
Pump Specifications
Output: Rod Side
96m³/h (126yd³/h)
Pressure: Piston Side
112bar (1624psi)
Concrete Cylinder Diameter
200mm (8")
Concrete Cylinder Type
Hard chromed
Stroke Length
N/A
S-tube Size
8" x 7"
Main Oil Pump
Kawasaki 180 cc
Hydraulic System Pressure
350 bar (5076 psi)
Lube System (Hopper)
Automatic
Switching System
Hydraulic
Hopper Capacity
Easy Clean 600L (158G)
Number of Strokes/Min
31
Output Control Range
5(7)~96m³/h 126yd³/h
General Specifications
Boom Control Valve
N/A
Vibrator
Standard
Water Pump
Hydraulic Power
Water Tank
500L (132gal)
Seller Note

STANDARD FEATURES

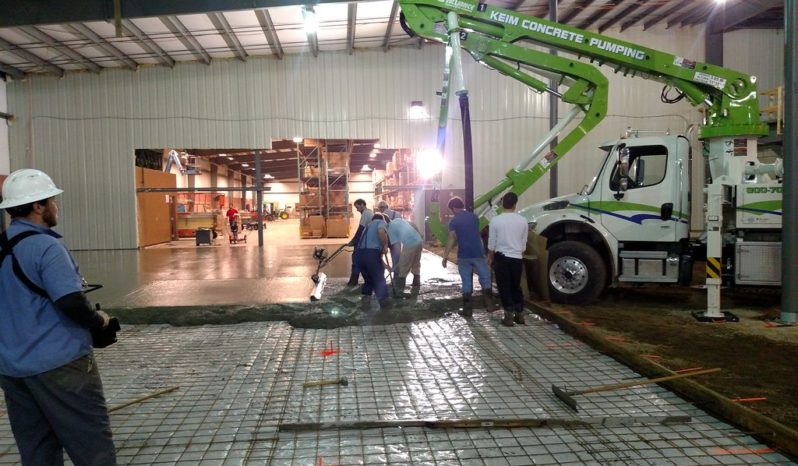

Our 20 meter is one of the lightest 20 meter’s available on the market and surprises business owners with its ability to accomplish all types of small jobs. A small outrigger footprint and Z-Fold Boom, you will consistently find more and more ways to use this on challenging jobsites.



Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.
Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.
Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.
