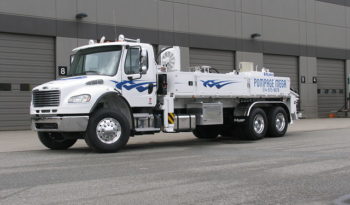

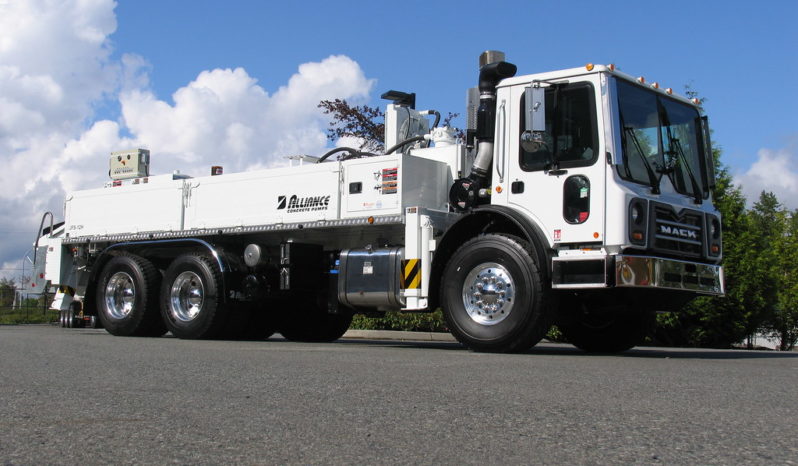

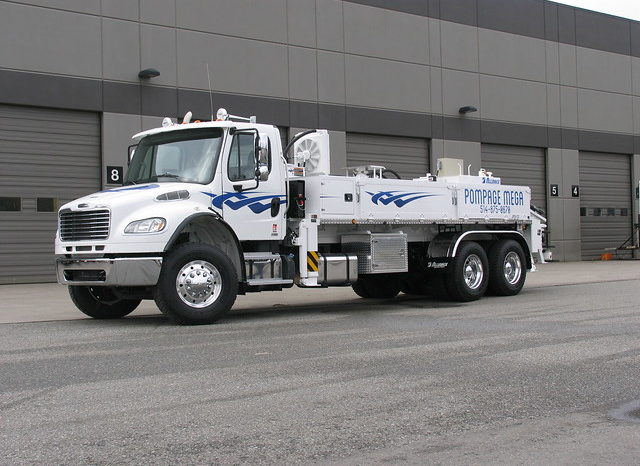

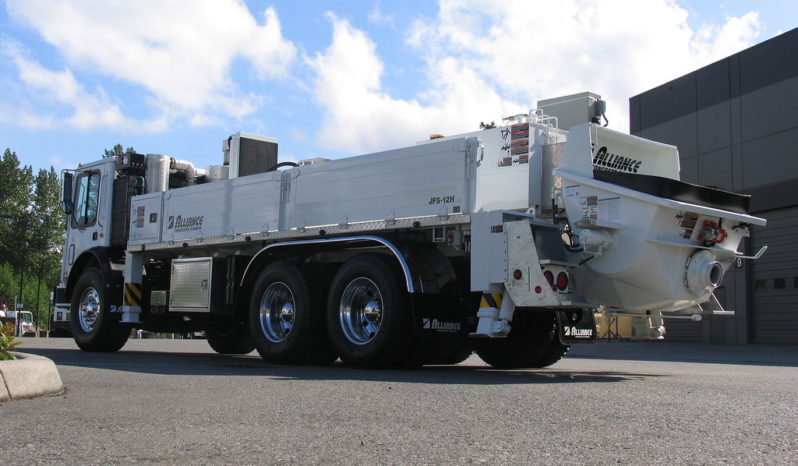

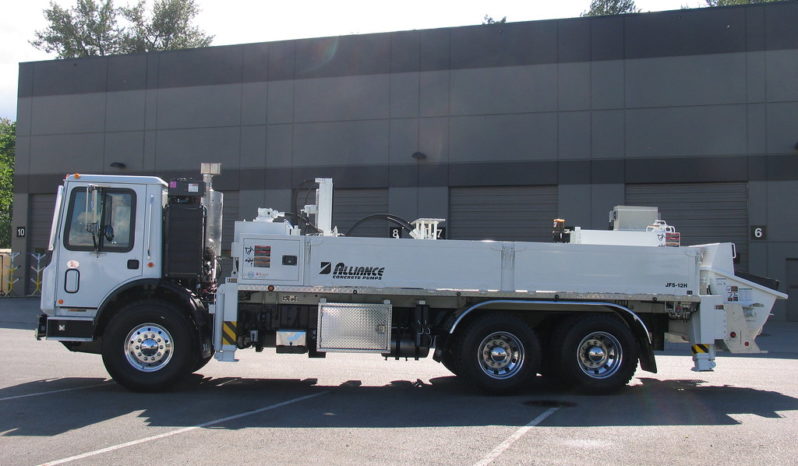

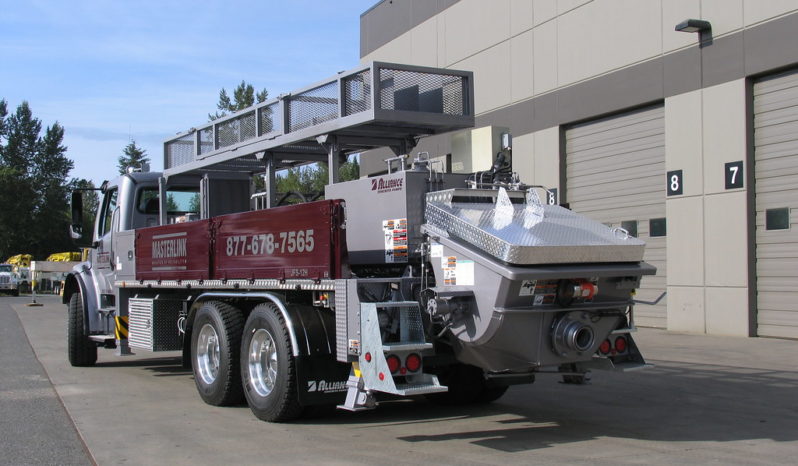

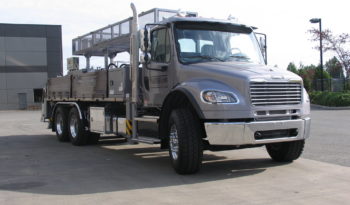

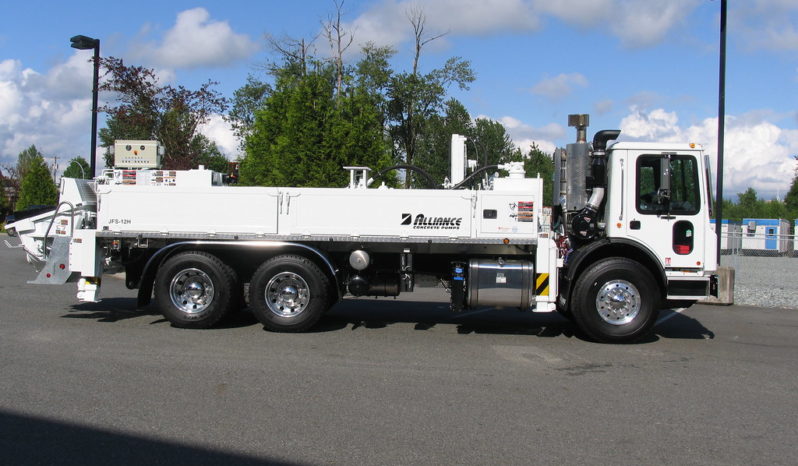

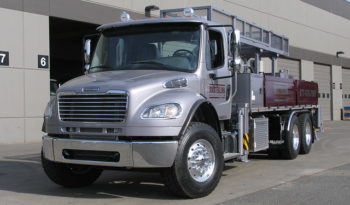

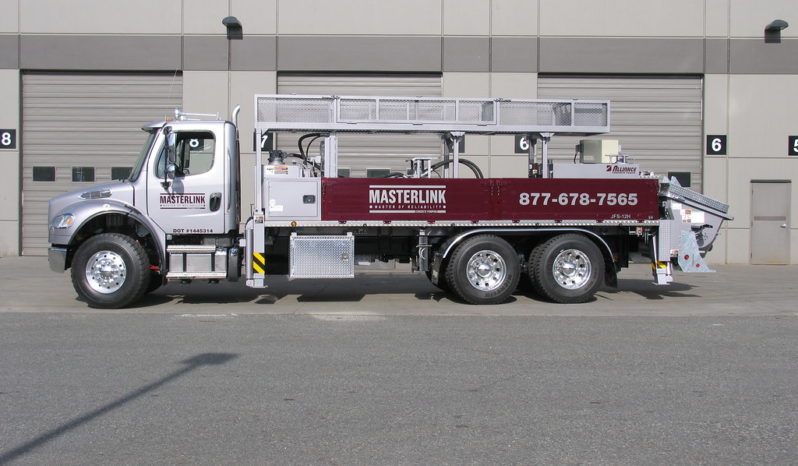

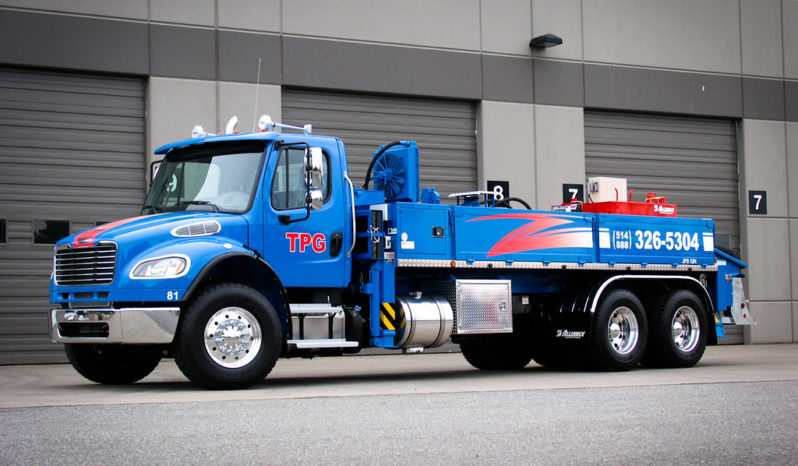

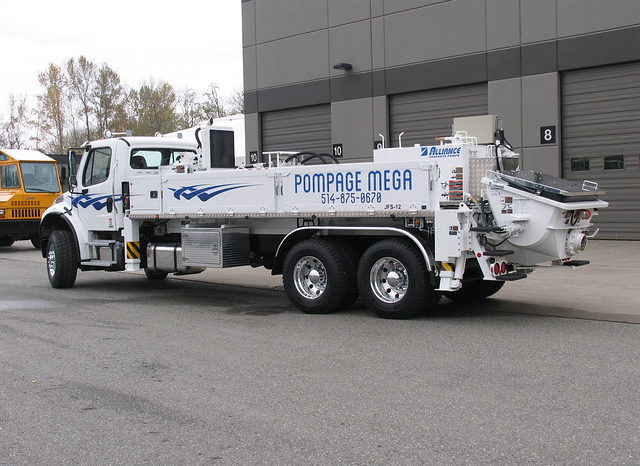

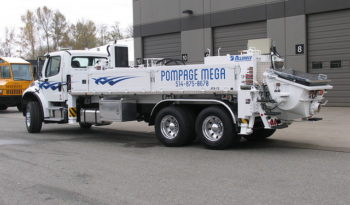

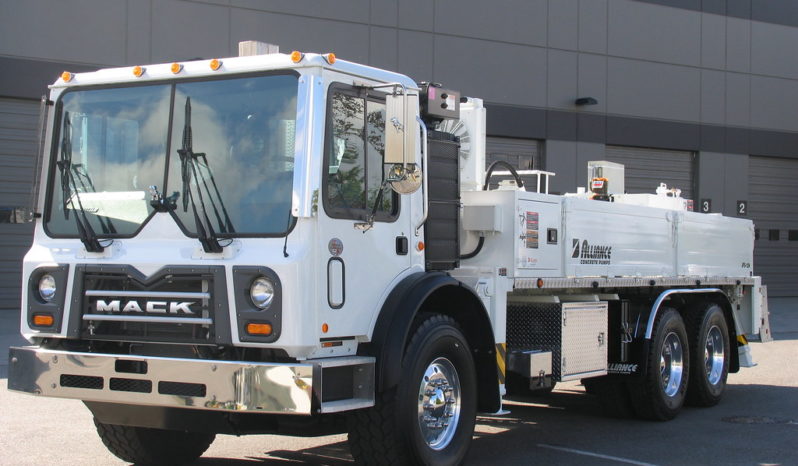

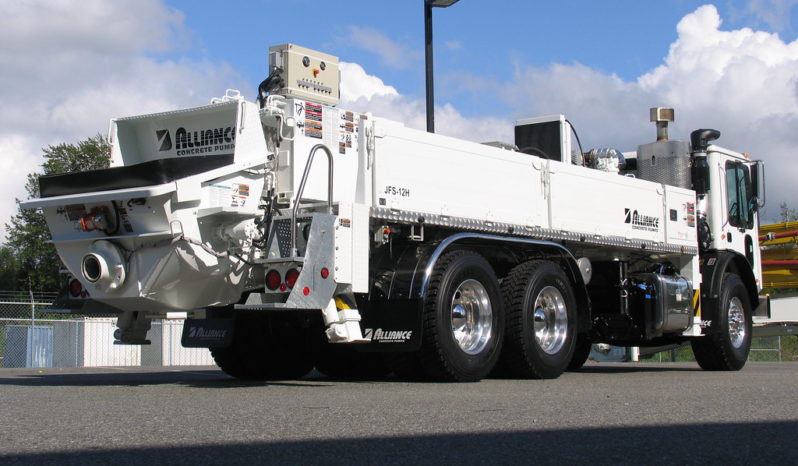

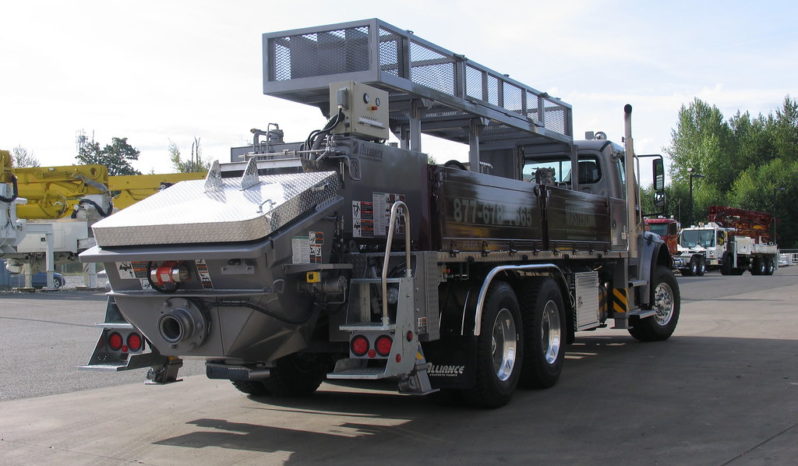

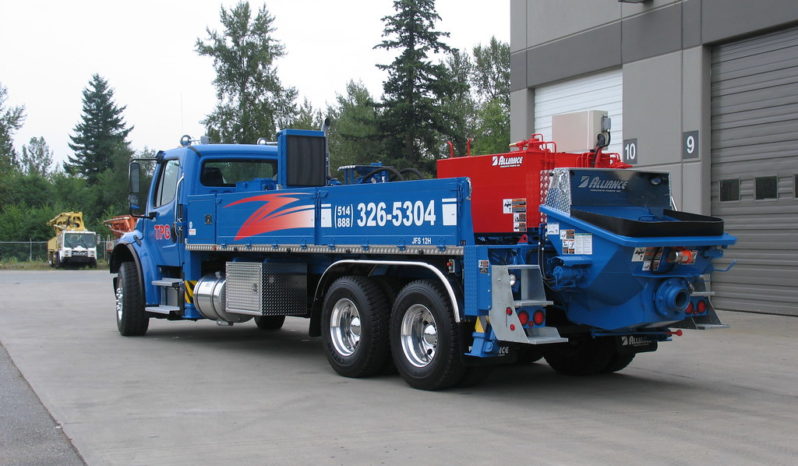

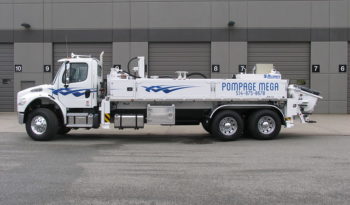

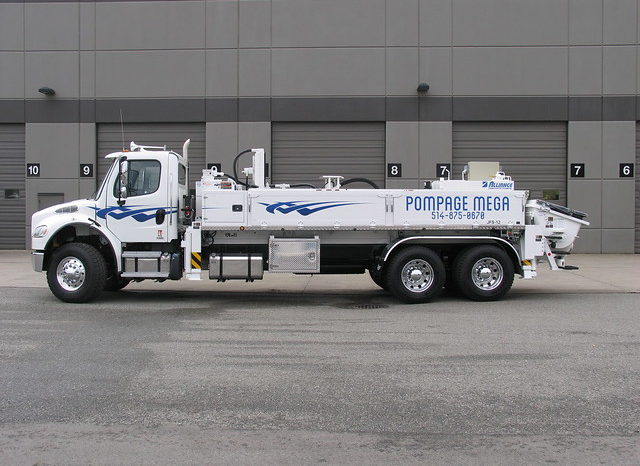

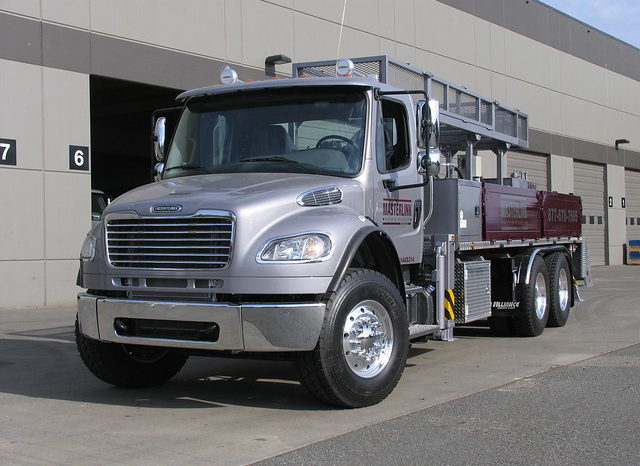

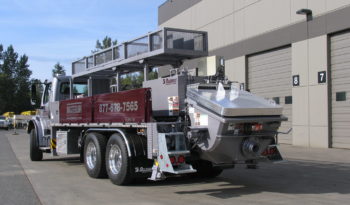

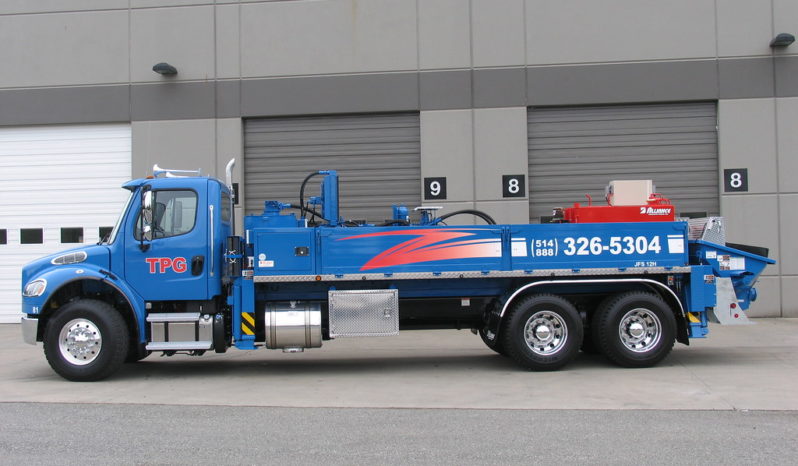

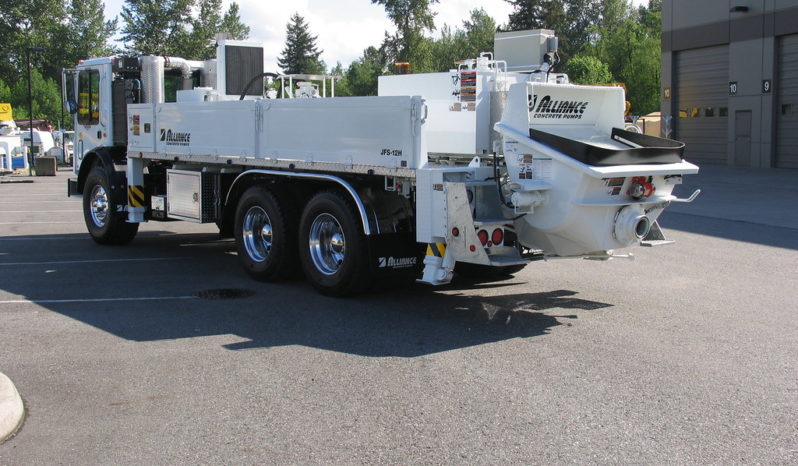

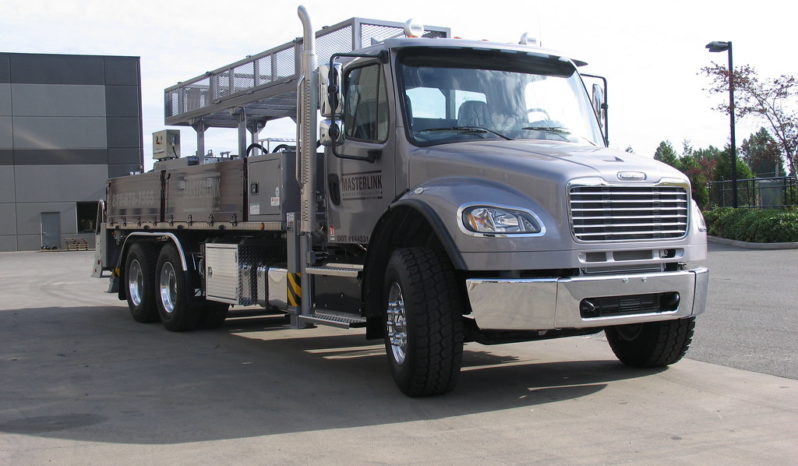

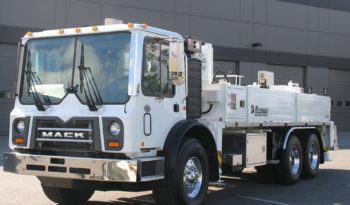

150 YARD PER HOUR JFS-12H

$0

150 YARD PER HOUR JFS-12H

ADDED: November 05, 2019

Concrete Pump Details

Pump Specifications
Output: Rod Side
115 m³/h (150 yd³/h)
Output: Piston Side
72 m³/h (94 yd³/h)
Pressure: Piston Side
148 bar (2146 psi)
S-tube Size
8" x 7"
Main Oil Pump
Rexroth Hydromatic
Lube System (Hopper)
Automatic

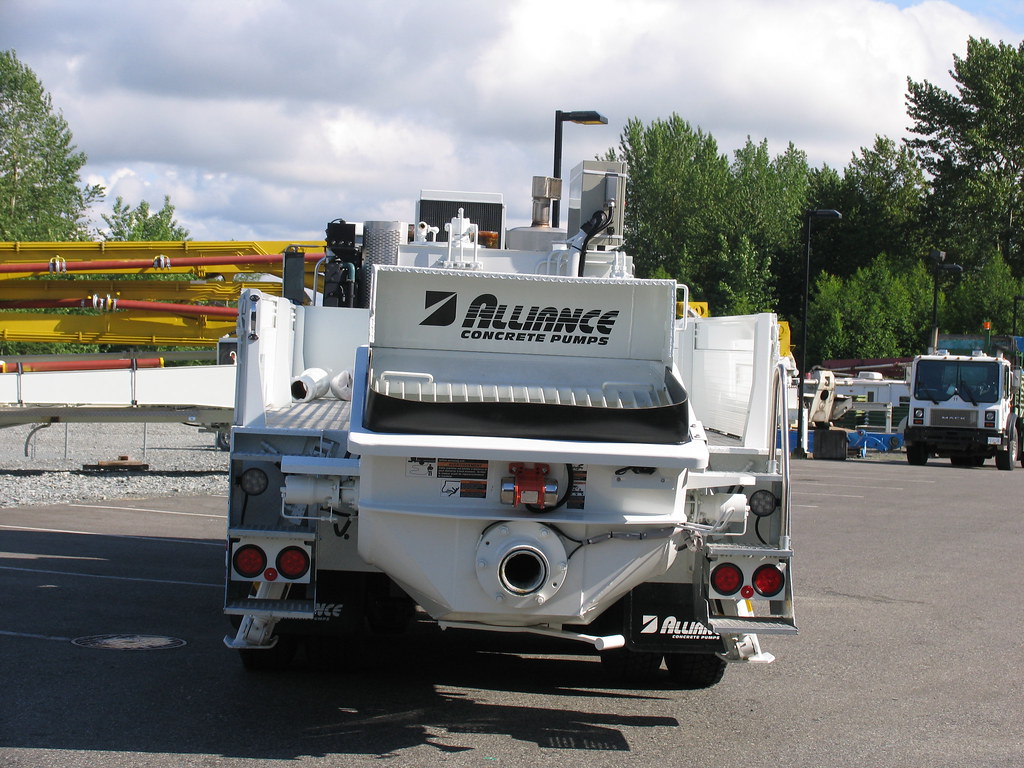

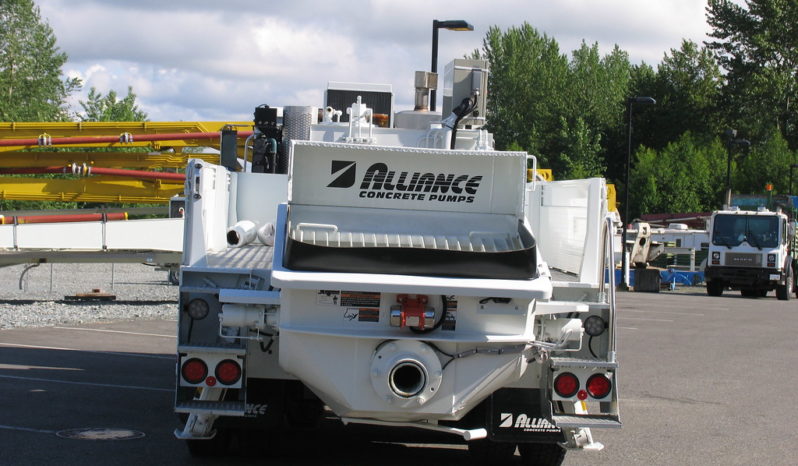

Hopper Capacity
Easy Clean 600L (158G)
Number of Strokes/Min
29
Max. Aggregate Size
63 mm (2.5")
Outrigger Front & Rear
Vertical Extension
General Specifications
Water Pump
Rust proof hydraulic power 20 bar (290 psi)
Water Tank
750 L (198 G)
Auto Lube System
Hopper Only
Hopper Vibrator
Standard
Tool Box
Standard
Seller Note

FEATURES & BENEFITS

The JFS-12H is capable of so much, from medium rise and high rise construction or large warehouses and big slabs; this pump has the volume and pressure you need to accomplish it all.

Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.

Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.

S-Valve Manifold
Directs oil flow to either shift cylinder. Accumulator pressure is also utilized to control the main pump controllers. All electrical functions have manual over-rides.

Main Pump Cell Manifold
Directs oil to the pumping cylinders. All electrical functions have manual over-rides. The main pumping system is an open loop circuit, which reduces heat in the hydraulic system.

Main Pump
This is the main pump which delivers oil for the pumping cylinders. Accumulator pump, boom pump and accessory pumps are all Rexroth.

Hydraulic Oil Cooler
The fan is operated by a hydraulic motor for efficiency and maximum cooling and is controlled by a temperature sensor, with a manual over-ride.

Radio Remote Controls
Our standard package is equipped with Omnex Radio Controls.
